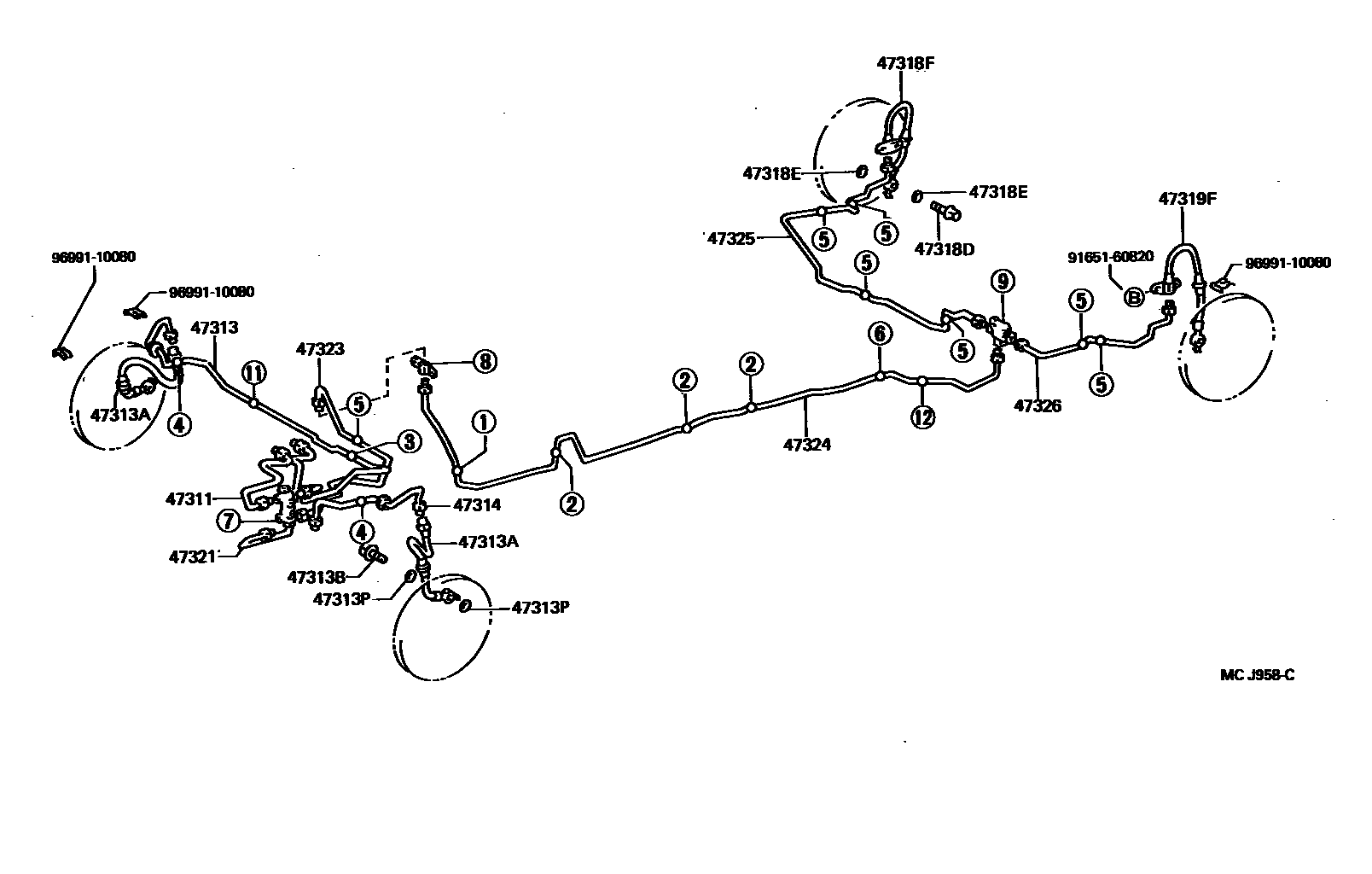

BRAKE TUBE & CLAMP

0001 1 0002 1W(ANTI-LOCK BRAKING SYSTEM) 0003 1 0004 1W(ANTI-LOCK BRAKING SYSTEM)

47311TUBE, FRONT BRAKE, NO.1

main47311-17090iSW21199001-199506

main47311-17100iSW20199001-199506

main47311-17130iSW2#199001-199506

W(*66)

47313TUBE, FRONT BRAKE, NO.3

main47313-17060iSW2#199001-199506

main47313-17080iSW2#199001-199506

W(*66)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02609iSW2#199001-199201

main90947-02692iSW2#199201-199311

sub90947-02885

main90947-02791iSW2#199311-199506

sub90947-02885

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iSW2#199001-199506

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iSW2#199001-199506

47314TUBE, FRONT BRAKE, NO.4

main47314-17070iSW2#199001-199506

main47314-17090iSW2#199001-199506

W(*66)

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015iSW2#199001-199506

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074iSW2#199001-199506

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02610iSW2#199001-199201

sub90947-02886

main90947-02693iSW2#199201-199506

sub90947-02886

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02610iSW2#199001-199201

sub90947-02886

main90947-02693iSW2#199201-199506

sub90947-02886

47321TUBE, REAR BRAKE, NO.1

main47321-17090iSW21199001-199506

main47321-17100iSW20199001-199506

main47321-17130iSW2#199001-199506

W(*66)

47323TUBE, REAR BRAKE, NO.3

main47323-17030iSW2#199001-199506

main47323-17050iSW2#199001-199506

W(*66)

47324TUBE, REAR BRAKE, NO.4

main47324-17020iSW21..4FC199001-199506

main47324-17030iSW2#..5F199201-199506

47325TUBE, REAR BRAKE, NO.5

main47325-17020iSW2#199001-199506

47326TUBE, REAR BRAKE, NO.6

main47326-17010iSW2#199001-199506

9165160820

main91651-60820

9699110080

main96991-10080

17 parts on this diagram · 4 diagrams in section
