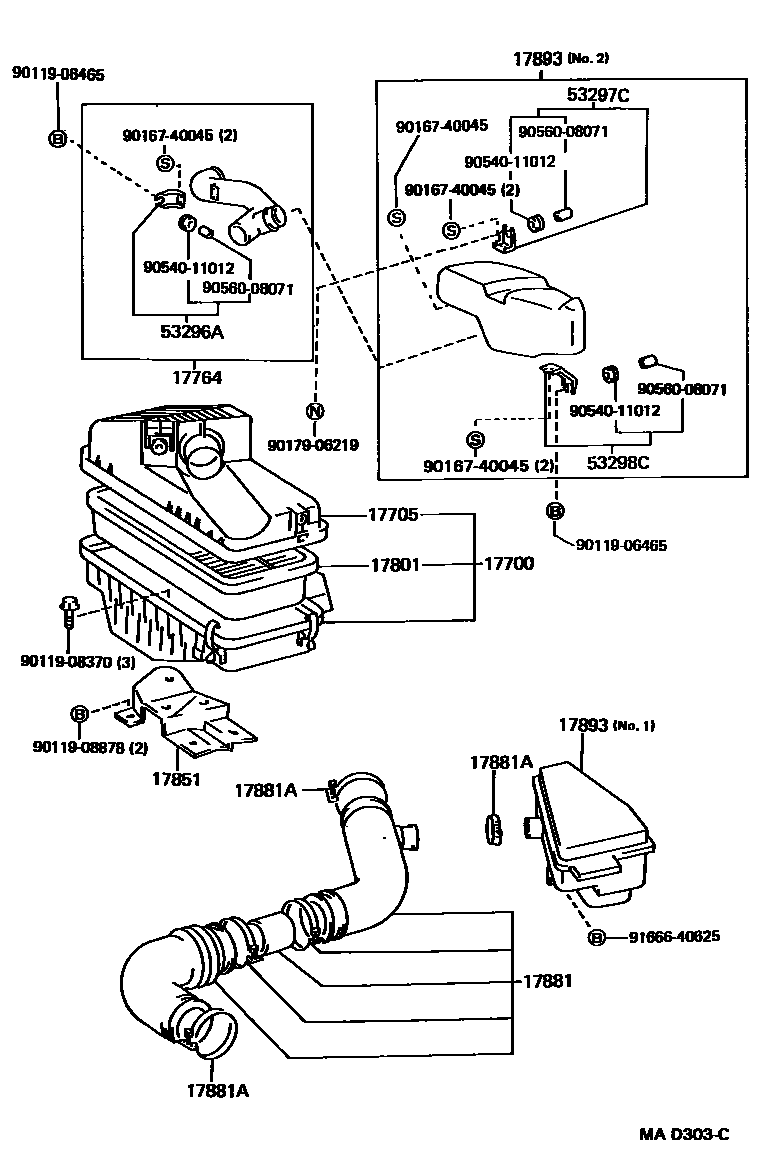

AIR CLEANER
17700CLEANER ASSY, AIR
17705CAP SUB-ASSY, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17851BRACKET, AIR CLEANER SUPPORT
17881HOSE, AIR CLEANER, NO.1
TURBOCHARGER SIDE
TURBO CHARGER SIDE
AIR FLOW METER SIDE
AIR FLOE METER SIDE
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
RESONATOR SIDE
TURBOCHARGER SIDE
TURBOCHRGER SIDE
THROTTLE BODY SIDE
AIR CLEANER SIDE
AIR FLOW METER SIDE
17893RESONATOR, INTAKE AIR
NO.1
NO.2
53296ARETAINER, COOL AIR INTAKE DUCT
53297CRETAINER, COOL AIR INTAKE DUCT, NO.2
53298CRETAINER, COOL AIR INTAKE DUCT, NO.3
9011906465
main90119-06465
9011908370
main90119-08370
9011908878
main90119-08878
9016740045
main90167-40045
9017906219
main90179-06219
9054011012
main90540-11012
9056008071
main90560-08071
9166640625
main91666-40625
19 parts on this diagram · 4 diagrams in section
