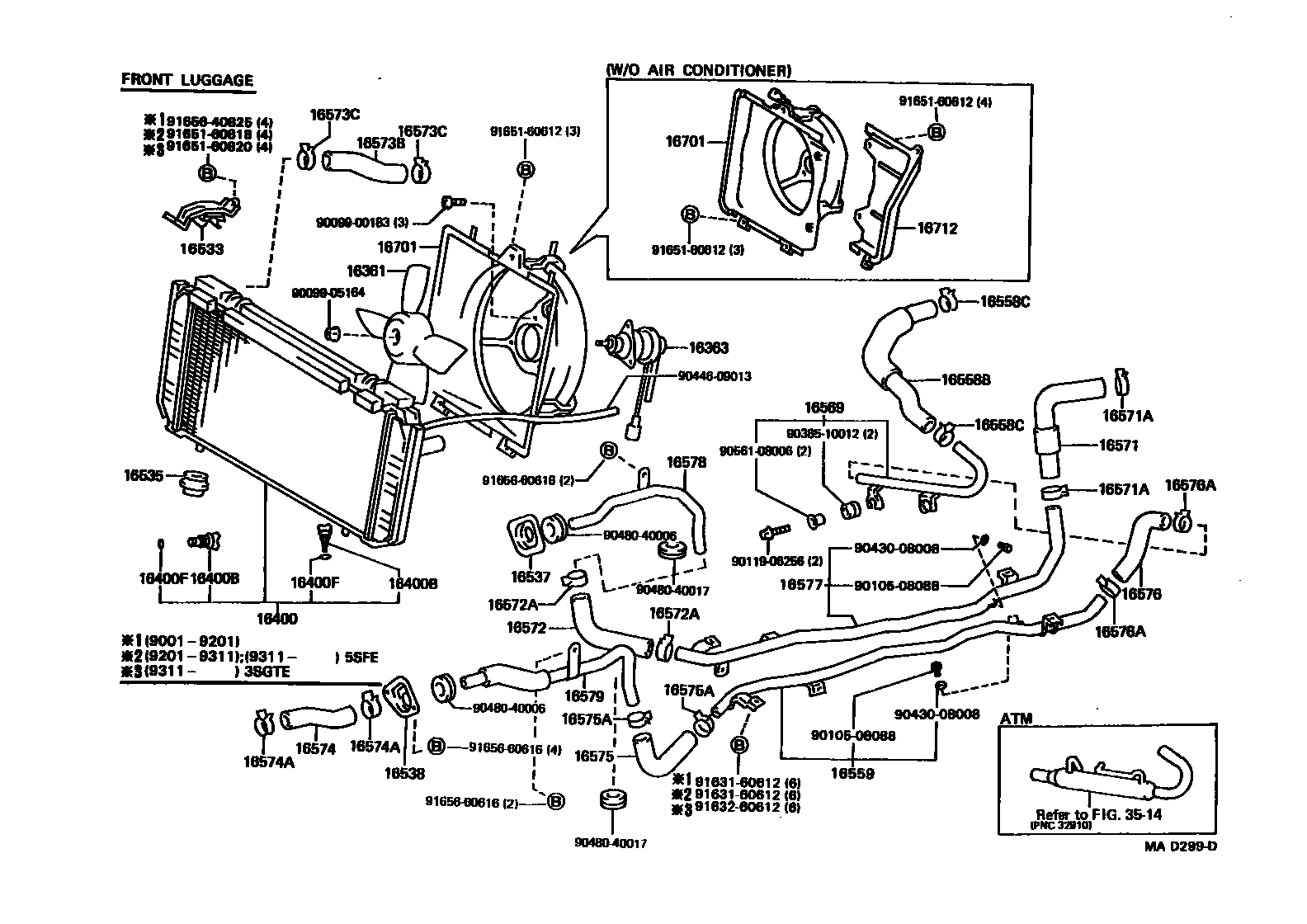

RADIATOR & WATER OUTLET
16363MOTOR, COOLING FAN
FRONT LUGGAGE
FRONT LUGGAGE
ENGINE ROOM
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16537SUPPORT, RADIATOR PIPE, NO.1
16538SUPPORT, RADIATOR PIPE, NO.2
16558BHOSE, RADIATOR, NO.7
16558CCLIP, RADIATOR HOSE, NO.7
sub90467-34004
16559PIPE, RADIATOR, NO.4
16569PIPE, RADIATOR, NO.5
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-34004
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
sub90467-34004
16573BHOSE, RADIATOR, NO.3
sub16574-74010
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
sub90467-34004
16574HOSE, RADIATOR, NO.4
16574ACLIP, RADIATOR HOSE, NO.4
sub90467-34004
16575HOSE, RADIATOR, NO.5
16575ACLIP, RADIATOR HOSE, NO.5
sub90467-34004
16576HOSE, RADIATOR, NO.6
16576ACLIP, RADIATOR HOSE, NO.6
sub90467-34004
16577PIPE, RADIATOR, NO.7
16578PIPE, RADIATOR, NO.2
16579PIPE, RADIATOR, NO.3
16701SHROUD SUB-ASSY, FAN
FRONT LUGGAGE
FRONT LUGGAGE
ENGINE ROOM
16712SHROUD, FAN, NO.2
3514
9009900183
main90099-00183
9009905164
main90099-05164
9010508088
main90105-08088
9011906256
main90119-06256
9038510012
main90385-10012
9043008008
main90430-08008
9044609013
main90446-09013
9048040006
main90480-40006
9048040017
main90480-40017
9056108006
main90561-08006
9163160612
main91631-60612
9163260612
main91632-60612
9165160612
main91651-60612
9165160818
main91651-60818
9165160820
main91651-60820
9165640825
main91656-40825
9165660616
main91656-60616
48 parts on this diagram · 3 diagrams in section
