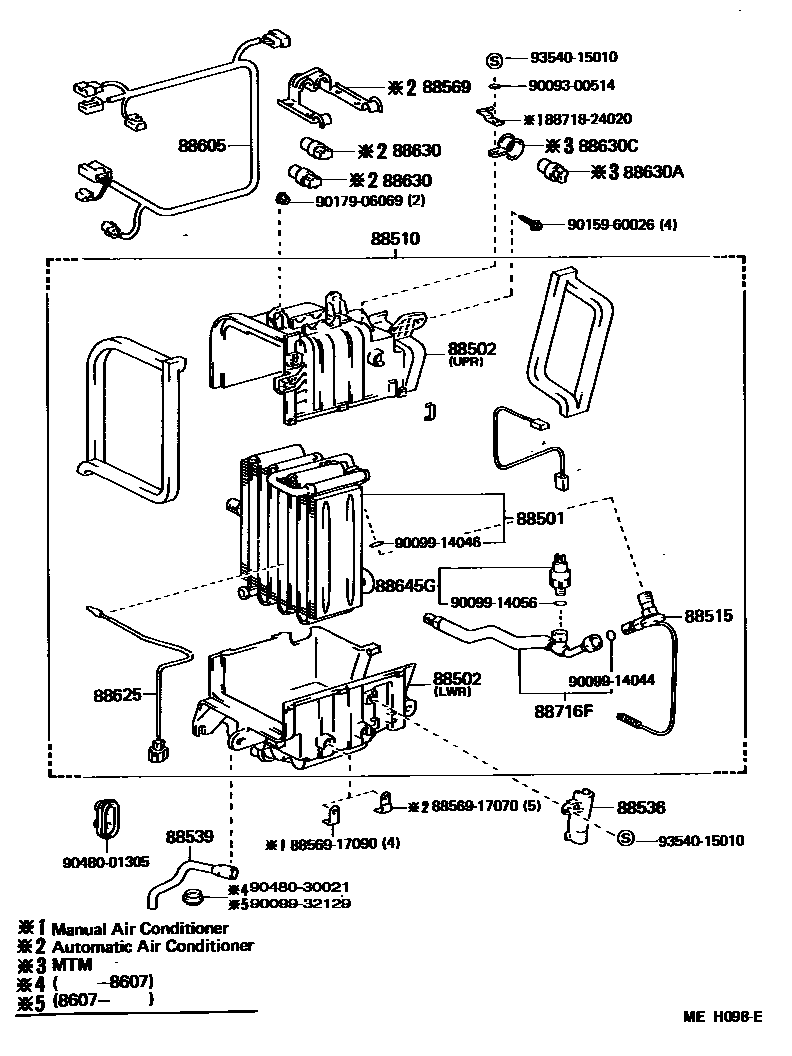

HEATING & AIR CONDITIONING - COOLER UNIT
88502CASE SUB-ASSY, COOLING UNIT
UPR
LWR
88510UNIT ASSY, COOLER
88515VALVE, COOLER EXPANSION
88536BRACKET, COOLING UNIT, NO.1
88539HOSE, COOLER UNIT DRAIN, NO.1
88569CLAMP (FOR COOLER RELAY)
W/*AAC
88605HARNESS SUB-ASSY, COOLER WIRING, NO.1
W/*AAC
W/*AAC
88625THERMISTOR, COOLER, NO.1
88630RELAY ASSY, COOLER
W/*AAC
88630ARELAY ASSY, COOLER
W/*AAC
W/COOLER
88630CBRACKET, COOLER RELAY
W/COOLER
W/*AAC
88716FPIPE, COOLER REFRIGERANT LIQUID, F
8856917070CLAMP (FOR COOLER RELAY)
main88569-17070
8856917090CLAMP (FOR COOLER RELAY)
main88569-17090
8871824020PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-24020
9009300514
main90093-00514
9009914044
main90099-14044
9009914046
main90099-14046
9009914056
main90099-14056
9009932129
main90099-32129
9015960026
main90159-60026
9017906069
main90179-06069
9048001305
main90480-01305
9048030021
main90480-30021
9354015010
main93540-15010
27 parts on this diagram · 2 diagrams in section
