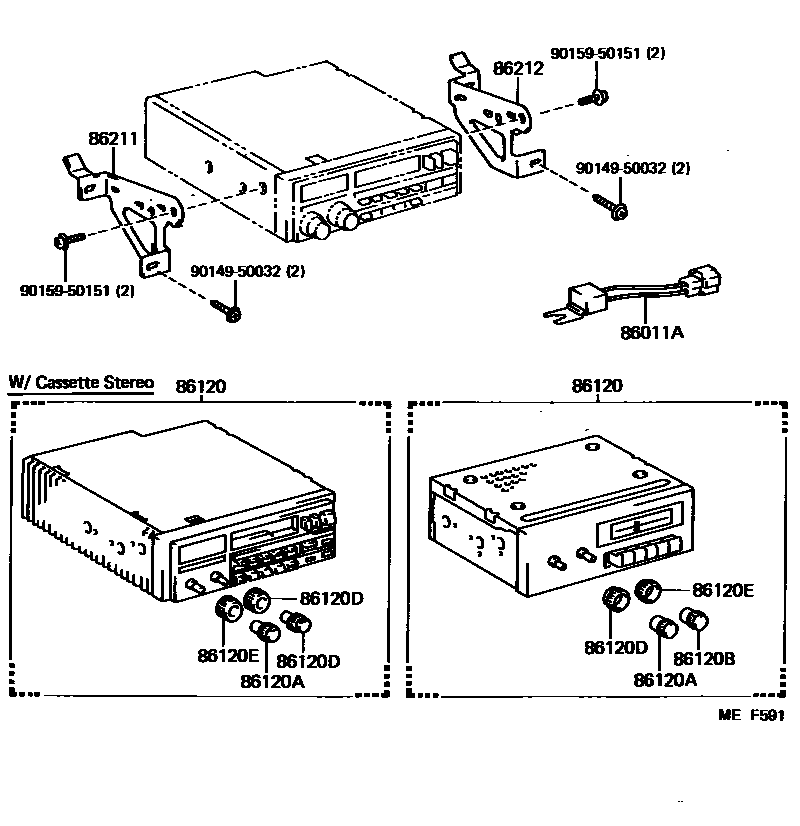

RADIO RECEIVER & AMPLIFIER & CONDENSER
86011ACONDENSER, RADIO SETTING
86120RECEIVER ASSY, RADIO
AM/FM MPX ETR/2-AMP
*36
*36,*ELT
AM MPX/FM MPX ETR/2-AMP
*AMC/*AF/4-AMP/2-DIN
AM/FM MPX ETR/4-AMP
AM/FM MPX ETR/4-AMP
*AMC/4-AMP/2-DIN
FUJITSU TEN
86120AKNOB, RADIO RECEIVER SWITCH
AM/FM
AM/FM MPX ETR/2-AMP
*36,*ELT
*36,*ELT
*AMC/(*AF)/4-AMP/2-DIN
86120BKNOB, RADIO RECEIVER TUNING, NO.1
AM/FM
86120DKNOB, RADIO RECEIVER TONE
AM/FM
AM/FM MPX ETR/2-AMP
*36,*ELT,TRE
*36,*ELT,BASS
*36,*ELT,BASS
86120EKNOB, RADIO RECEIVER BALANCE
AM/FM
AM/FM MPX ETR/2-AMP
*36,*ELT
*36,*ELT
*AMC/(*AF)/4-AMP/2-DIN
9014950032
main90149-50032
9014950832
main90149-50832
9015950151
main90159-50151
11 parts on this diagram · 5 diagrams in section
