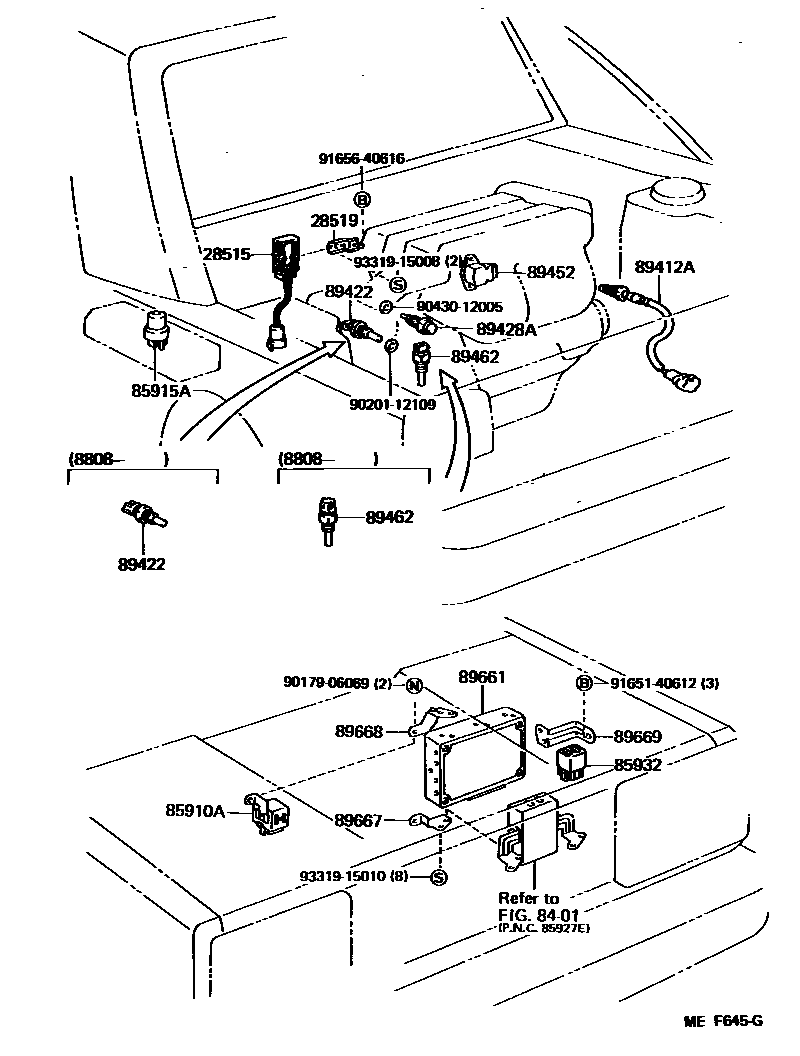

ELECTRONIC FUEL INJECTION SYSTEM

28515RESISTOR, SOLENOID

main28515-11010i4AGELC..AW11198608-198912

main28515-52010i4AGELC..AW11198412-198608

sub28515-11010

28519BRACKET, SOLENOID RESISTOR

main28519-16010i4AGELC..AW11198412-198608

main28519-16020i4AGELC..AW11198608-198912

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-17010iAW11198412-198608

main85910-30050iAW11198608-198912

85915ARELAY, MAIN

main90987-02004iAW11198412-198912

85932RELAY, SUPERCHARGER

main85932-30010iAW11..SPC198708-198912

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-12010iAW11..USA198708-198803

CALIFORNIA SPEC

main89412-12010iAW11..USA198803-198912

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iAW11198808-198912

main89422-30020iAW11198412-198808

sub89422-12010

89428ASWITCH, WATER TEMPERATURE (FOR E.F.I)

main89428-28030iAW11..USA198508-198608

W/*AAC

main89428-28030iAW11198412-198708

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12040iAW11..GT198708-198903

main89452-12050iAW11..GT198903-198912

sub89452-33010

main89452-20050iAW11..SPC198708-198912

main89452-20070iAW11198608-198708

main89452-28010iAW11198412-198608

sub89452-28040

89462SWITCH, START INJECTOR TIME

main89462-20030iAW11198808-198912

main89462-30011iAW11198412-198808

89661COMPUTER, ENGINE CONTROL

main89661-17020iAW11..5F198412-198608

main89661-17021iAW11..5F198608-198708

main89661-17050iAW11..4FC198508-198608

main89661-17051iAW11..4FC198608-198708

main89661-17120iAW11..SPC198708-198912

main89661-17130iAW11..SPC..USA198708-198912

CALIFORNIA SPEC

main89661-17190iAW11..GT198708-198712

sub89661-17191

main89661-17191iAW11..GT198712-198912

main89661-17200iAW11..GT..USA198708-198712

CALIFORNIA SPEC

sub89661-17201

main89661-17201iAW11..GT..USA198712-198912

CALIFORNIA SPEC

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-17010iAW11198412-198608

main89667-17020iAW11198608-198912

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-17010iAW11198412-198608

main89668-17030iAW11..GT198608-198912

main89668-17040iAW11..SPC198708-198912

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-17010iAW11198412-198608

main89669-17040iAW11..GT198608-198912

main89669-17050iAW11..SPC198708-198912

9017906069

main90179-06069

9020112109

main90201-12109

9043012005

main90430-12005

9165140612

main91651-40612

9165640616

main91656-40616

9331915008

main93319-15008

9331915010

main93319-15010

22 parts on this diagram · 1 diagram in section
