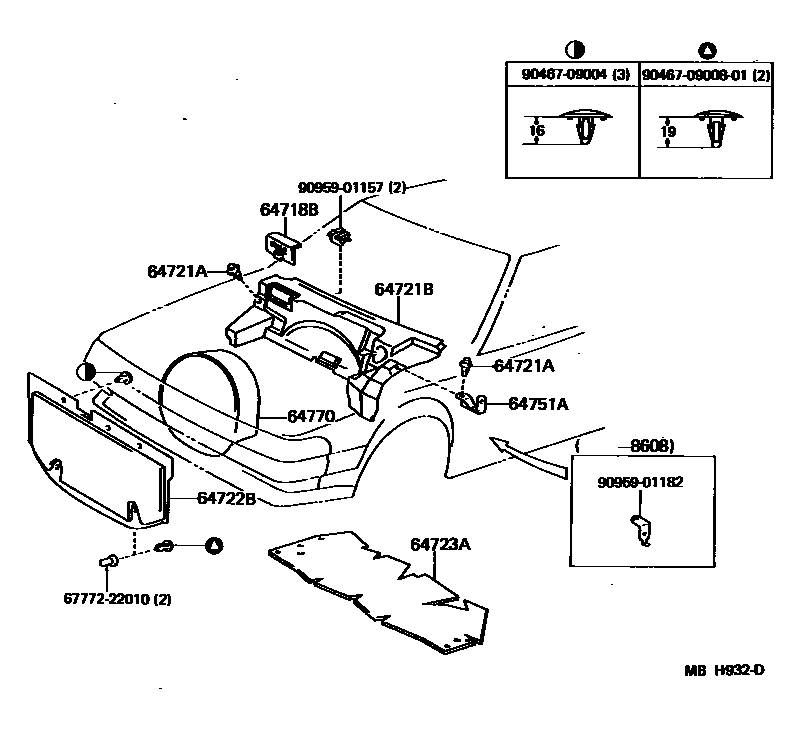

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

64718BCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-17010iAW11198412-198607

sub64718-17011

main64718-17011iAW11198607-198912

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07041-01iAW11198412-198803

BLACK,BLACK,TRIM1#

sub90467-07041

main90467-07041-01iAW11198803-198808

BLACK,TRIM2#

sub90467-07041

main90467-07041-11iAW11198808-198912

BLACK,TRIM2#

sub90467-07041

main90467-07041-20iAW11198808-198912

RED,TRIM3#

sub90467-07041

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main64721-17030iAW11198412-198608

main64721-17031iAW11..5F198608-198912

main64721-17040iAW11..4FC198508-198608

main64721-17041iAW11..4FC198608-198912

main64721-17070iAW11..5F198412-198608

W/REMOVABLE ROOF

main64721-17071iAW11..CP..5F198803-198912

W(REMOVABLE ROOF)

main64721-17071iAW11..CP..5F198608-198803

W/REMOVABLE ROOF

main64721-17080iAW11..4FC198508-198608

W/REMOVABLE ROOF

main64721-17081iAW11..CP..4FC198608-198803

W/REMOVABLE ROOF

main64721-17081iAW11..CP..4FC198803-198912

W(REMOVABLE ROOF)

64722BCOVER, LUGGAGE COMPARTMENT TRIM, NO.2

main64722-17030iAW11198412-198808

main64722-17050iAW11..CP198412-198803

W/REMOVABLE ROOF

main64722-17050iAW11..CP198803-198808

W(REMOVABLE ROOF)

main64722-17070iAW11198808-198912

main64722-17080iAW11..CP198808-198912

W(REMOVABLE ROOF)

64723ACOVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER

main64723-17010iAW11198412-198912

64751ABRACKET, LUGGAGE COMPARTMENT COVER, NO.1

main64751-17010iAW11198608-198912

64770COVER ASSY, SPARE WHEEL

main64770-17010iAW11198608-198912

main64770-17020iAW11..CP198803-198912

W(REMOVABLE ROOF)

main64770-17020iAW11..CP198608-198803

W/SUN ROOF

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9046709004

main90467-09004

904670900801

main90467-0900801

9095901157

main90959-01157

9095901182

main90959-01182

12 parts on this diagram · 2 diagrams in section
