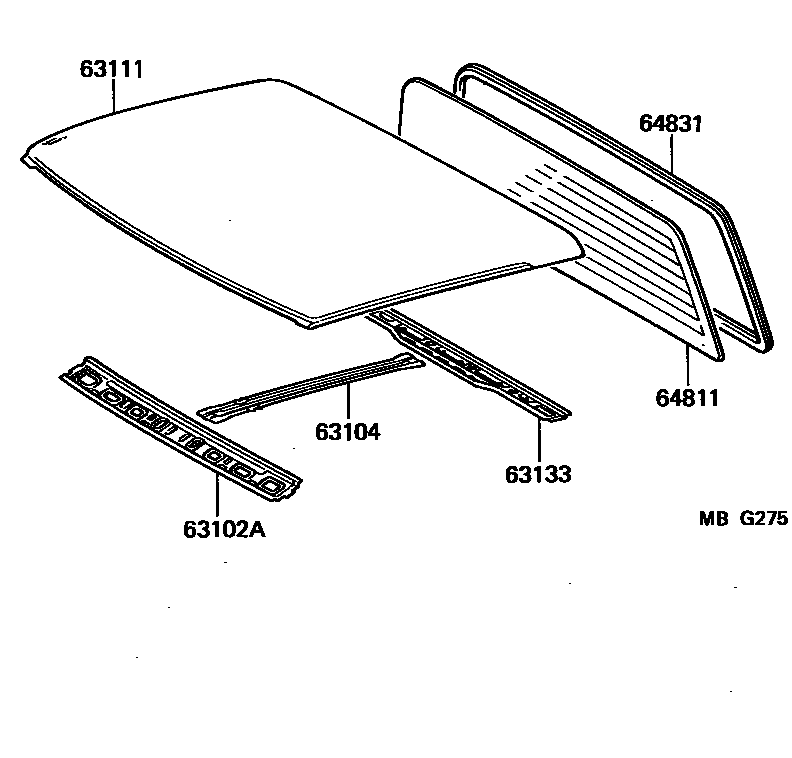

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-17010iAW11..CP198412-198912

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-17010iAW11..CP198412-198912

63111PANEL, ROOF

main63101-17900iAW11..TBR198608-198912

main63111-17060iAW11..CP..USA198608-198803

W/O ANTENNA HOLE

main63111-17060iAW11..CP..USA198803-198912

W(MOTOR ANTENNA)

main63111-17070iAW11..CP..USA198803-198912

W(REMOVABLE ROOF & MOTOR ANTENNA)

main63111-17070iAW11..CP..USA198608-198803

W/REMOVABLE ROOF,W/O ANTENNA

main63111-17901iAW11..CP198412-198912

main63111-17903iAW11198412-198803

W/REMOVABLE ROOF

main63111-17903iAW11..CP198803-198912

W(REMOVABLE ROOF)

63133FRAME, BACK WINDOW OPENING, UPPER

main63133-17011iAW11198412-198912

64811GLASS, BACK WINDOW

main64811-17030iAW11..CP..5F..CND198803-198912

*EHTT,T=3.5

main64811-17030iAW11198412-198508

*EHTT,T=3.5,*EHTT,T=3.5

main64811-17030iAW11198508-198803

*EHTT,T=3.5,W/SPOILER,*EHTT,T=3.5

main64811-17070iAW11198803-198912

*EHTT,T=3.5,BRONZE

main64811-17070iAW11198412-198508

*EHTT,T=3.5,BRONZE,*EHTT,T=3.5,BRONZE

main64811-17070iAW11198508-198803

*EHTT,T=3.5,BRONZE,W/SPOILER,BRONZE,*EHTT,T=3.5

main64811-17080iAW11198508-198803

*EHTT,T=3.5,*EHTT,T=3.5

main64811-17080iAW11198803-198912

*EHTT,T=3.5

main64811-17090iAW11198508-198803

*EHTT,T=3.5,BRONZE,BRONZE,*EHTT,T=3.5

main64811-17090iAW11..GT;AW11..4FC..SPC;AW11..SPC..CND198803-198912

*EHTT,T=3.5,BRONZE

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-17010iAW11198412-198912

6 parts on this diagram · 3 diagrams in section
