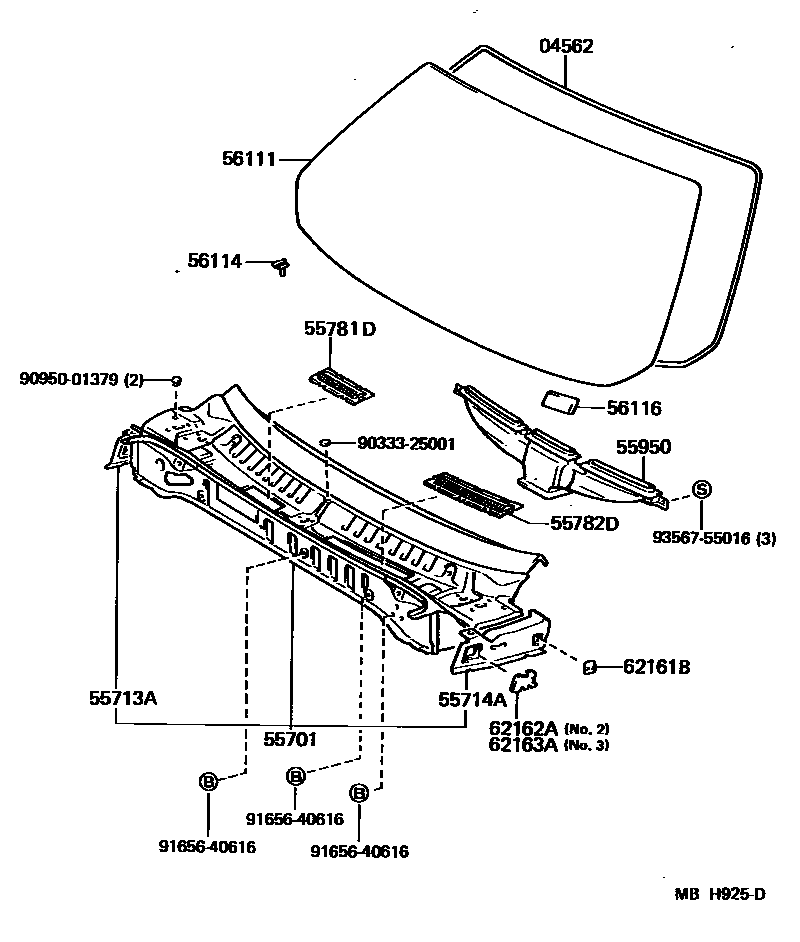

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iAW11198412-198912

55701PANEL SUB-ASSY, COWL

main55700-17040iAW11198412-198912

55713APANEL, COWL TOP SIDE, RH

main55713-17010iAW11198412-198912

55714APANEL, COWL TOP SIDE, LH

main55714-17010iAW11198412-198912

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-17020iAW11198412-198605

sub55781-17030

main55781-17030iAW11198605-198912

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-17020iAW11198412-198605

sub55782-17030

main55782-17030iAW11198605-198912

55950NOZZLE ASSY, DEFROSTER

main55950-17020iAW11198412-198608

main55950-17020-01iAW11198608-198803

BLACK,BLACK,TRIM1#

sub55950-17020

main55950-17020-01iAW11198803-198808

BLACK,TRIM2#

sub55950-17020

main55950-17020-02iAW11198808-198912

RED,TRIM3#

sub55950-17020

main55950-17020-04iAW11198608-198803

BLUE,DARK BLUE,TRIM8#

sub55950-17020

main55950-17020-04iAW11198803-198912

DARK BLUE,TRIM8#

sub55950-17020

main55950-17020-05iAW11198803-198808

DARK BEIGE,TRIM4#

sub55950-17020

main55950-17020-05iAW11198608-198803

BEIGE,DARK BEIGE,TRIM4#

sub55950-17020

main55950-17020-11iAW11198808-198912

BLACK,TRIM2#

sub55950-17020

56111GLASS, WINDSHIELD

main56111-17030iAW11198412-198803

*TL,T=5.3,*TL,T=5.3

main56111-17030iAW11198803-198912

*TL,T=5.3

main56111-17060iAW11198412-198803

*TL,T=5.3,BRONZE,BRONZE,*TL,T=5.3

main56111-17060iAW11198803-198912

*TL,T=5.3,BRONZE

56114RETAINER, WINDSHIELD GLASS

main56114-17010iAW11198412-198912

56116SPACER, WINDSHIELD GLASS

main56116-17020iAW11198608-198912

62161BCOVER, COWL SIDE PANEL SERVICE HOLE

main62161-17010iAW11198412-198912

62162ACOVER, COWL SIDE PANEL HOLE, NO.2

main62162-17010iAW11198412-198912

62163ACOVER, COWL SIDE PANEL HOLE, NO.3

main62163-17010iAW11198412-198912

9033325001

main90333-25001

9095001379

main90950-01379

9165640616

main91656-40616

9356755016

main93567-55016

17 parts on this diagram · 1 diagram in section
