FRONT FENDER APRON & DASH PANEL
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53285BSEAL, RADIATOR SIDE AIR, NO.1
53285CCLIP(FOR RADIATOR SIDE AIR SEAL)
53286BSEAL, RADIATOR SIDE AIR, NO.2
53295DEFLECTOR, RADIATOR LOWER AIR
53295BCLIP(FOR RADIATOR LOWER AIR DEFLECTOR)
53297BPROTECTOR, RADIATOR HOSE, NO.1
53298BPROTECTOR, RADIATOR HOSE, NO.2
53711AAPRON, FRONT FENDER, W/SUPPORT, FRONT RH
53712AAPRON, FRONT FENDER, W/SUPPORT, FRONT LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53787AGUSSET, FRONT FENDER APRON, LOWER RH
53788AGUSSET, FRONT FENDER APRON, LOWER LH
55101PANEL SUB-ASSY, DASH
55102PANEL SUB-ASSY, DASH, LOWER
55210INSULATOR ASSY, DASH PANEL
57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
57307APANEL SUB-ASSY, FRONT LUGGAGE END
57308PAN SUB-ASSY, FRONT LUGGAGE
57379REINFORCEMENT, FRONT LUGGAGE UNDER
63650HOLDER ASSY, REMOVABLE ROOF
63660ASTAY ASSY, REMOVABLE ROOF, LH
63670ASTAY ASSY, REMOVABLE ROOF, RH
9015950069
main90159-50069
9017905026
main90179-05026
9018906006
main90189-06006
9033301004
main90333-01004
9033325001
main90333-25001
9033330002
main90333-30002
9048023010
main90480-23010
9095001005
main90950-01005
9095001027
main90950-01027
9095001056
main90950-01056
9095001059
main90950-01059
9095001060
main90950-01060
9095001061
main90950-01061
9095001065
main90950-01065
9095001147
main90950-01147
9095001167
main90950-01167
9095001327
main90950-01327
9095001426
main90950-01426
9095001461
main90950-01461
9165140614
main91651-40614
9165140814
main91651-40814
9165540616
main91655-40616
9165640616
main91656-40616

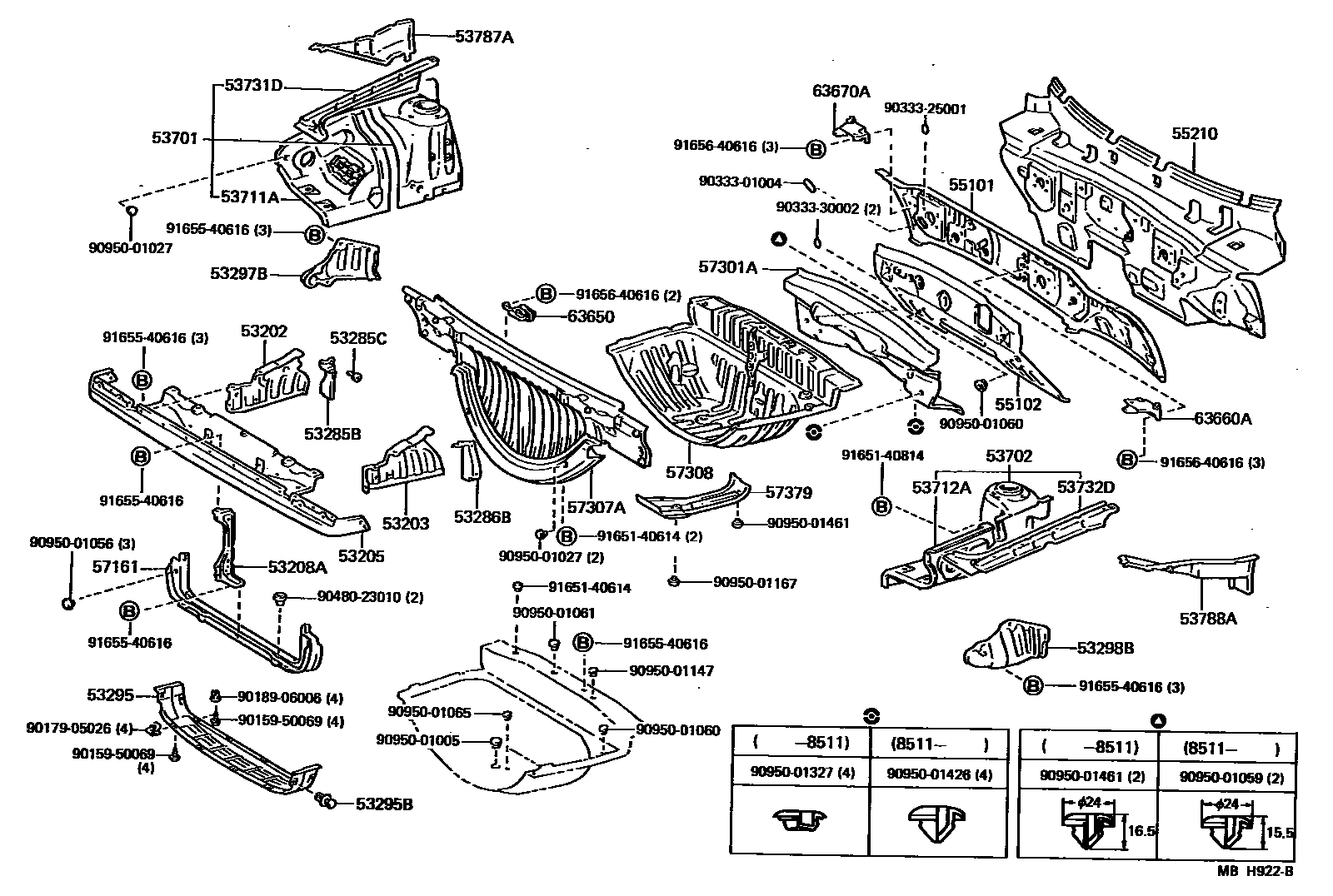

53 parts on this diagram · 2 diagrams in section
