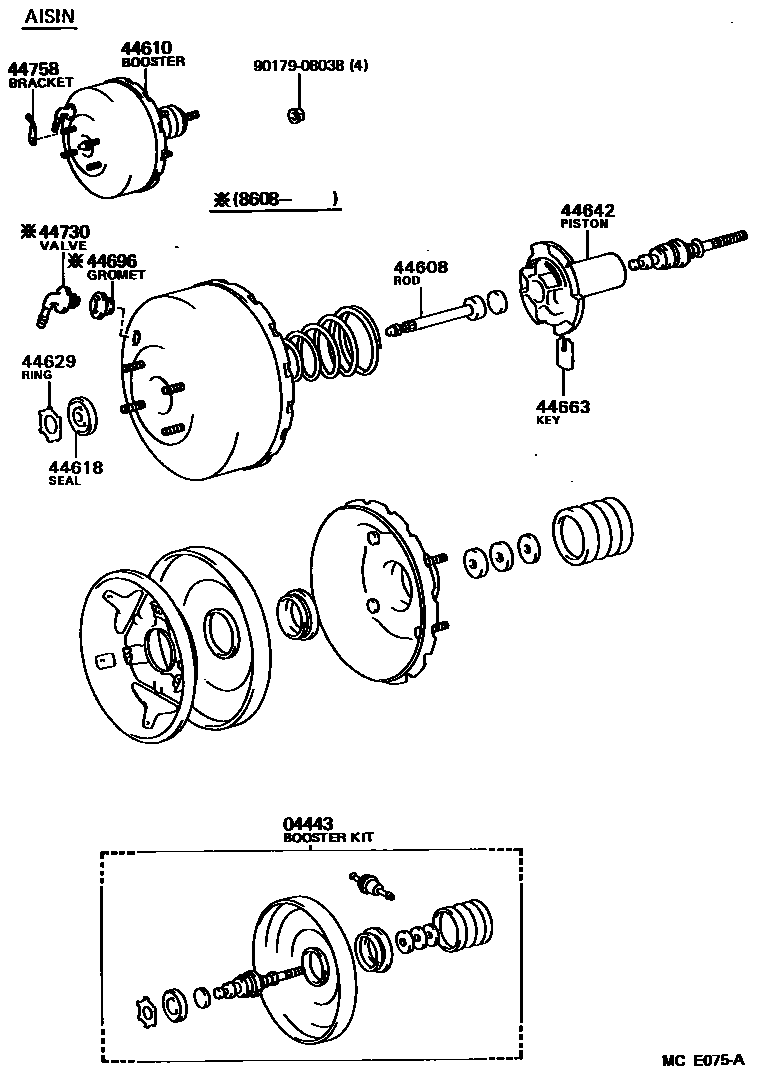

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

04443BOOSTER KIT, BRAKE

main04443-17020iAW11198412-198608

AISIN

main04443-17030iAW11198412-198608

JKC

main04443-17050iAW11..GT198608-198912

JKC

main04443-17090iAW11198608-198708

AISIN

sub04443-17091

main04443-17091iAW11..GT198708-198912

AISIN

main04443-17160iAW11..SPC198708-198912

AISIN

main04443-17170iAW11..SPC198708-198912

JKC

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iAW11..GT198412-198912

AISIN

main44606-20800iAW11..SPC198708-198912

AISIN

main44608-20810iAW11..SPC198708-198803

JKC

main44608-32020iAW11..GT198412-198912

JKC

44610BOOSTER ASSY, BRAKE

main44610-17020iAW11198412-198608

main44610-17060iAW11198608-198708

sub44610-17061

main44610-17061iAW11..GT198708-198912

main44610-17160iAW11..SPC198708-198912

44618SEAL, BOOSTER BODY

main44621-14030iAW11..SPC198708-198912

main44621-28120iAW11..GT198412-198912

44629RING, CIRCULAR INTERNAL

main44628-28120iAW11..GT198412-198912

main44628-60010iAW11..SPC198708-198912

44642PISTON, BRAKE BOOSTER

main44642-16050iAW11198412-198608

main44642-20800iAW11..SPC198708-198912

main44642-32010iAW11..GT198608-198912

44663KEY, VALVE STOPPER

main44635-12630iAW11..5F198608-198912

main44635-20800iAW11..SPC198708-198912

main44635-28120iAW11..GT198412-198803

44696GROMMET, CHECK VALVE

main90480-24439iAW11198608-198912

AISIN

main90480-24517iAW11198608-198912

JKC

sub90480-24015

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iAW11198412-198608

main44730-14050iAW11198608-198912

AISIN

main44730-14060iAW11198608-198912

JKC

sub44730-28010

sub90480-24015

44758BRACKET, VACUUM CHECK VALVE

main44758-17010iAW11198412-198608

main44758-17020iAW11..GT198608-198912

main44758-17030iAW11..SPC198708-198912

9017908038

main90179-08038

11 parts on this diagram · 5 diagrams in section
