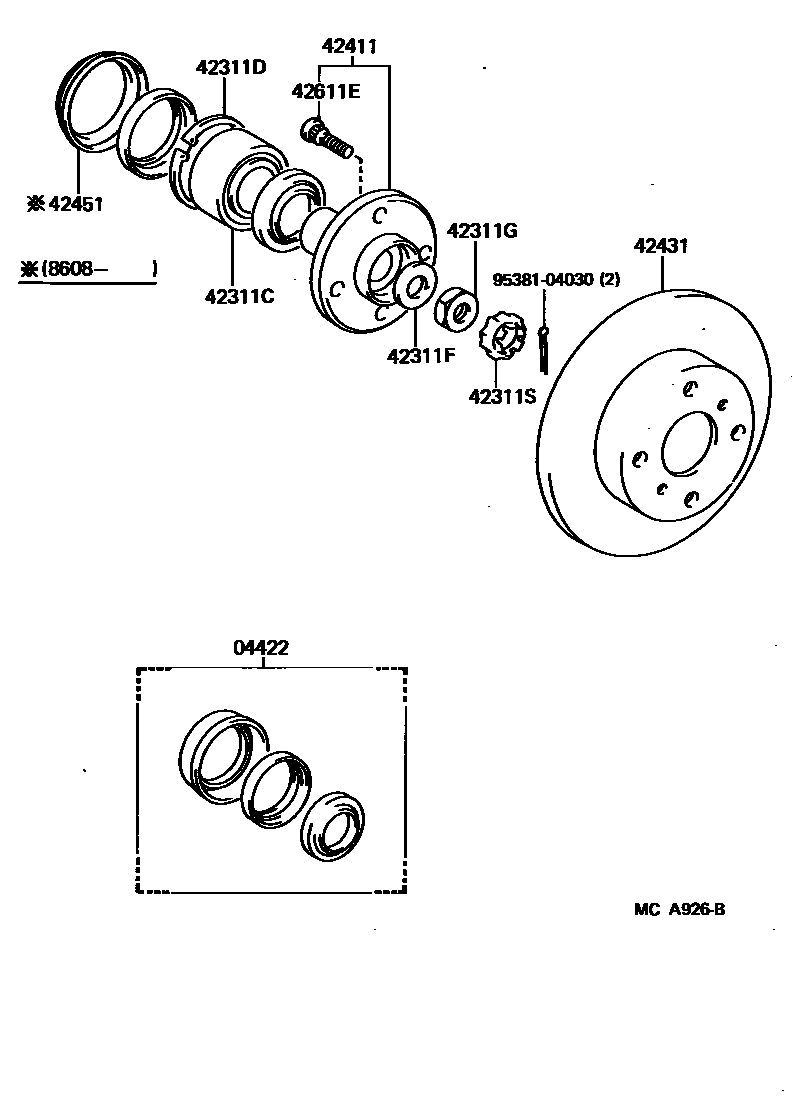

REAR AXLE SHAFT & HUB

0001 1 0002 1 0004 1 0005 1

04422SEAL KIT, REAR AXLE OIL

main04422-17010iAW11¥1,230198412-198608

main04422-32010iAW11¥2,450198608-198912

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-38003iAW11¥7,000198412-198912

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90521-79002iAW11¥140198412-198912

42311FWASHER, PLATE(FOR REAR AXLE SHAFT)

main90201-20012iAW11¥340198412-198912

42311GNUT(FOR REAR AXLE SHAFT)

main90170-19001iAW11¥320198412-198912

42311SCAP, REAR WHEEL ADJUSTING LOCK

main43525-16010iAW11..TBR;AW11..CP..USA¥250198412-198912

42411HUB, REAR AXLE

main43502-20030iAW11..TBR¥8,900198412-198912

sub43502-12100¥8,900

sub43502-20110¥9,400

main43502-20080iAW11¥9,500198803-198904

sub43502-20110¥9,400

42431DISC, REAR

main42431-17010iAW11¥10,000198412-198608

main42431-17020iAW11¥10,300198608-198912

42451DEFLECTOR, REAR WHEEL BEARING DUST, NO.1

main43246-17010iAW11¥1,690198412-198608

main43246-32011iAW11¥1,870198608-198912

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047iAW11¥230198412-198912

9538104030

main95381-04030¥50

11 parts on this diagram · 4 diagrams in section
