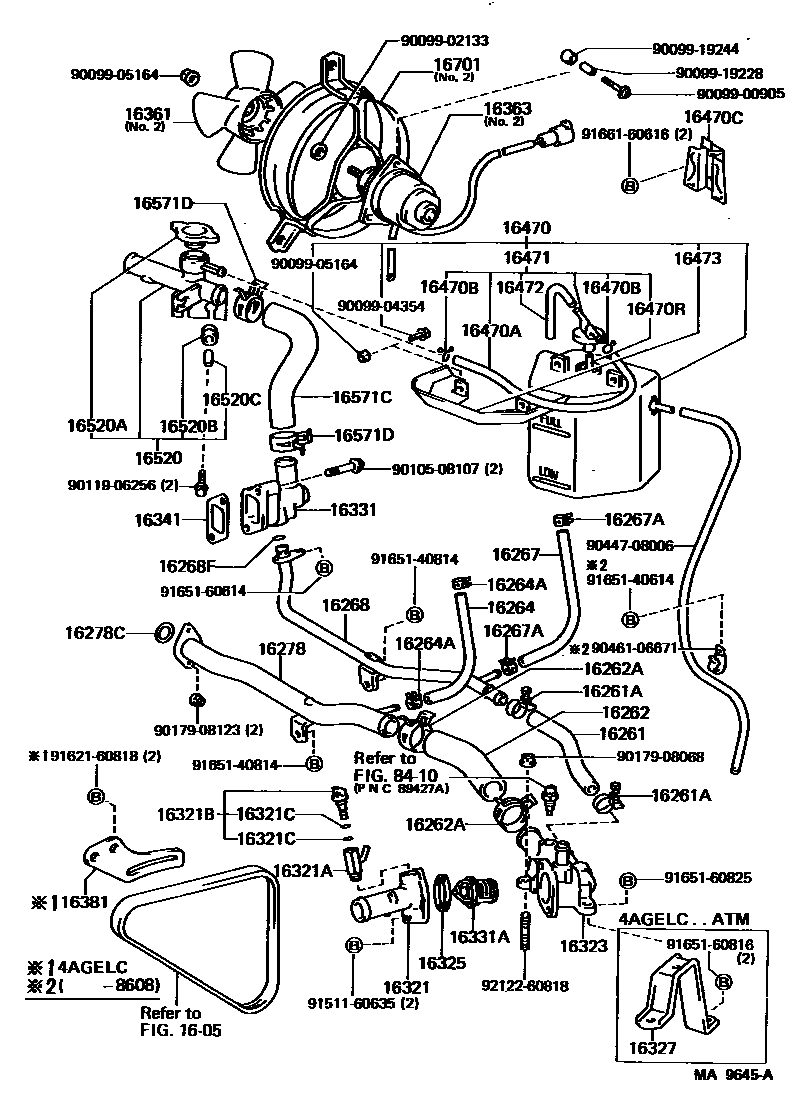

RADIATOR & WATER OUTLET
1605
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16262HOSE, WATER INLET
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51300
16267HOSE, WATER BY-PASS, NO.3
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
sub96135-51300
16268FRING, O(FOR WATER BY-PASS PIPE)
16278CRING, O(FOR WATER BY-PASS PIPE NO.2)
sub96761-24035
16321AUNION(FOR WATER INLET)
16321BPLUG, DRAIN COCK(FOR WATER INLET UNION)
sub90910-09093
16321CRING, O(FOR WATER INLET UNION DRAIN COCK PLUG)
ID=4
ID=6
16323HOUSING, WATER INLET
16325GASKET, WATER INLET HOUSING, NO.1
sub16325-63011
16327BRACKET, WATER INLET HOUSING
NO.1
16331ATHERMOSTAT
*WAX 82-95
16361FAN
NO.1
NO.1
NO.2
16363MOTOR, COOLING FAN
NO.2
NO.1
NO.1
16381BAR, FAN BELT ADJUSTING
sub16381-16050
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470CBRACKET(FOR RADIATOR RESERVE TANK)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
L=600
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16473SUPPORT(FOR RADIATOR RESERVE TANK)
16520FILLER ASSY, WATER
16520ACAP SUB-ASSY, WATER FILLER
16520BBUSHING(FOR WATER FILLER)
16520CPIPE(FOR WATER FILLER)
16571CHOSE, RADIATOR, NO.1
16701SHROUD SUB-ASSY, FAN
NO.1
NO.1
NO.2
NO.1
NO.1
8410
9009900905
main90099-00905
9009902133
main90099-02133
9009904354
main90099-04354
9009905164
main90099-05164
9009919228
main90099-19228
9009919244
main90099-19244
9010508107
main90105-08107
9011906256
main90119-06256
9017908068
main90179-08068
9017908123
main90179-08123
9044708006
main90447-08006
9046106671
main90461-06671
9151160635
main91511-60635
9162160818
main91621-60818
9165140614
main91651-40614
9165140814
main91651-40814
9165160614
main91651-60614
9165160816
main91651-60816
9165160825
main91651-60825
9166160616
main91661-60616
9212260818
main92122-60818
63 parts on this diagram · 2 diagrams in section
