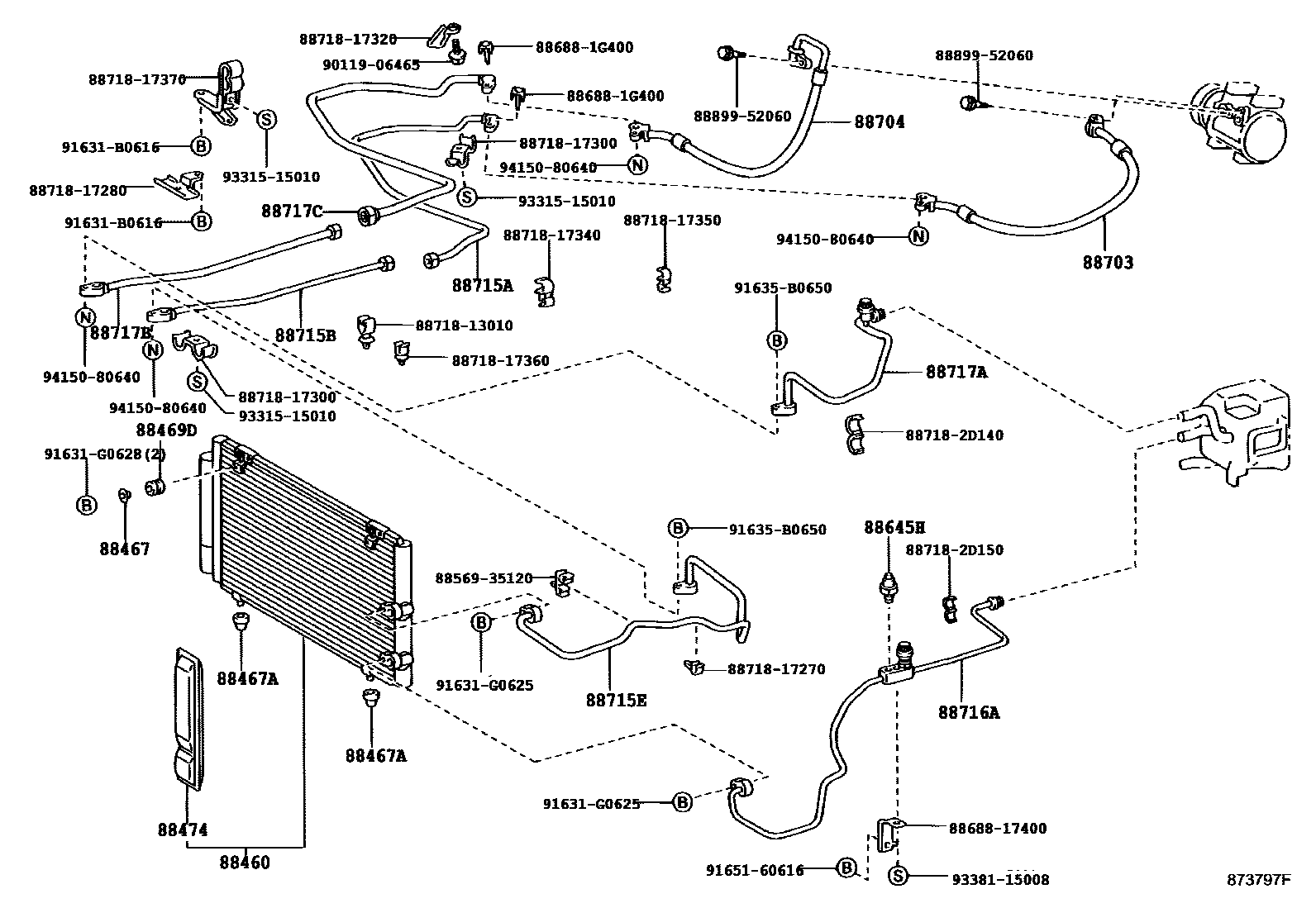

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1MAKER OPTION 0002 1DEALER OPTION 0003 1MAKER OPTION 0004 1DEALER OPTION 0005 1MAKER OPTION 0006 1DEALER OPTION 0007 1MAKER OPTION 0008 1DEALER OPTION 0009 1O RING

88460CONDENSER ASSY, COOLER

main88460-17120iZZW30..RHD199912-200104

sub88460-17121

main88460-17121iZZW30..RHD200104-200509

main88460-17130iZZW30..LHD199912-200208

main88460-17140iZZW30..LHD200208-200509

88467CUSHION, COOLER CONDENSER, NO.1

main88467-16100iZZW30199912-200509

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-20190iZZW30199912-200509

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-16020iZZW30199912-200509

88474DRYER, COOLER

main88474-17010iZZW30200104-200509

main88474-47010iZZW30..LHD199912-200208

88645HSWITCH, PRESSURE NO.1

main88645-17020iZZW30199912-200509

sub88645-60030

88703HOSE SUB-ASSY, DISCHARGE

main88703-17050iZZW30199912-200208

main88703-17060iZZW30200208-200509

88704HOSE SUB-ASSY, SUCTION

main88704-17050iZZW30199912-200208

main88704-17060iZZW30200208-200509

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-17300iZZW30199912-200208

main88715-17300iZZW30200208-200509

DEALER OPTION

main88715-17360iZZW30200402-200509

88715BPIPE, COOLER REFRIGERANT DISCHARGE, B

main88715-17290iZZW30199912-200509

88715EPIPE, COOLER REFRIGERANT DISCHARGE, E

main88715-17280iZZW30..RHD199912-200402

MAKER OPTION

sub88715-17281

main88715-17281iZZW30..RHD200402-200509

MAKER OPTION

main88715-17310iZZW30..LHD199912-200402

MAKER OPTION

sub88715-17311

main88715-17311iZZW30..LHD200402-200509

MAKER OPTION

main88715-17330iZZW30..RHD199912-200402

DEALER OPTION

main88715-17331iZZW30..RHD200402-200509

DEALER OPTION

main88715-17350iZZW30..LHD199912-200402

DEALER OPTION

sub88715-17351

main88715-17351iZZW30..LHD200402-200509

DEALER OPTION

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-17230iZZW30..RHD199912-200402

MAKER OPTION

sub88716-17231

main88716-17231iZZW30..RHD200402-200509

MAKER OPTION

main88716-17240iZZW30..LHD199912-200402

MAKER OPTION

sub88716-17241

main88716-17241iZZW30..LHD200402-200509

MAKER OPTION

main88716-17250iZZW30..RHD199912-200402

DEALER OPTION

main88716-17251iZZW30..RHD200402-200509

DEALER OPTION

main88716-17260iZZW30..LHD199912-200402

DEALER OPTION

sub88716-17261

main88716-17261iZZW30..LHD200402-200509

DEALER OPTION

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-17220iZZW30..RHD199912-200509

main88717-17230iZZW30..LHD199912-200509

88717BPIPE, COOLER REFRIGERANT SUCTION, B

main88717-17240iZZW30199912-200509

88717CPIPE, COOLER REFRIGERANT SUCTION, C

main88717-17250iZZW30199912-200208

main88717-17250iZZW30200208-200509

DEALER OPTION

main88717-17260iZZW30200402-200509

8856935120CLAMP (FOR COOLER RELAY)

main88569-35120

8868817400BRACKET, COOLER DIAPHRAGM

main88688-17400

886881G400BRACKET, COOLER DIAPHRAGM

main88688-1G400

8871813010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-13010

8871817270PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-17270

8871817280PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-17280

8871817300PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-17300

8871817320PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-17320

8871817340PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-17340

8871817350PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-17350

8871817360PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-17360

8871817370PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-17370

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8889952060COVER, EVAPORATOR

main88899-52060

9011906465

main90119-06465

91631B0616

main91631-B0616

91631G0625

main91631-G0625

91631G0628

main91631-G0628

91635B0650

main91635-B0650

9165160616

main91651-60616

9331515010

main93315-15010

9338115008

main93381-15008

9415080640

main94150-80640

39 parts on this diagram · 9 diagrams in section
