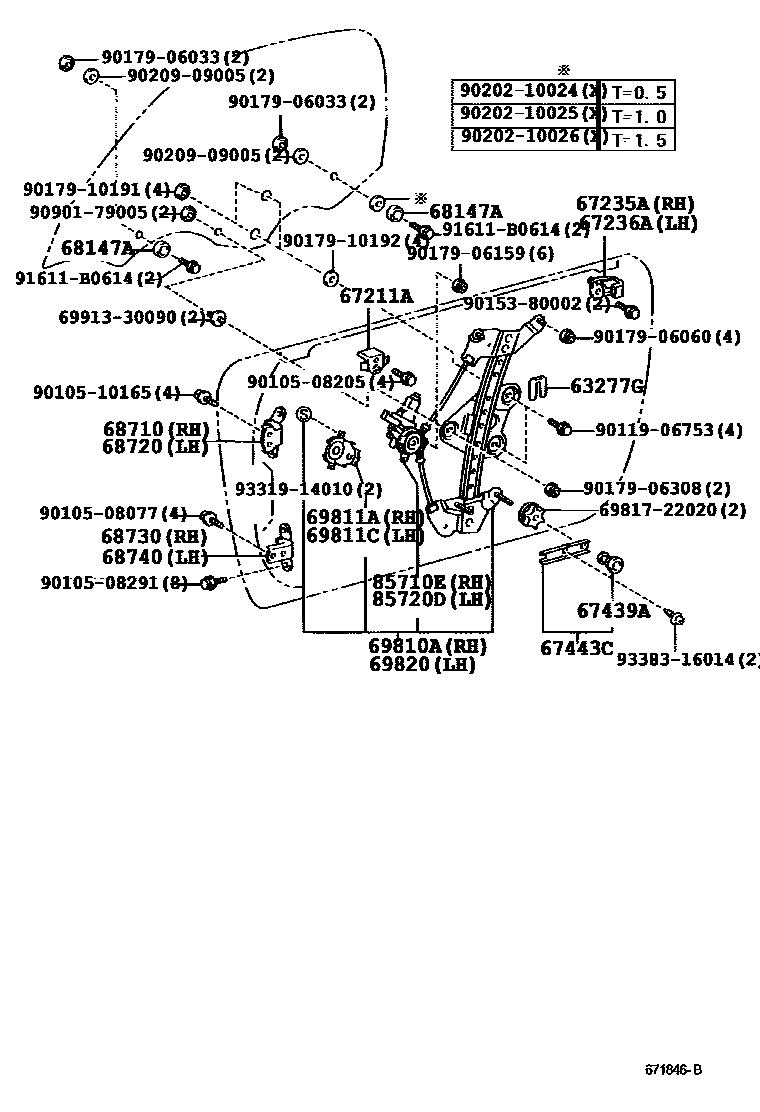

FRONT DOOR WINDOW REGULATOR & HINGE
63277GSHIM, WINDOW REGULATOR
T=1.0
T=2.0
67211ASTOP, FRONT DOOR WINDOW, UPPER
67235ASTABILIZER, DOOR GLASS FEMALE, RH
67236ASTABILIZER, DOOR GLASS FEMALE, LH
67439ASNAP, FRONT DOOR WINDOW GUIDE
67443CPLATE, FRONT DOOR WINDOW GUIDE, LOWER
68147ASTOP, FRONT DOOR GLASS, UPPER
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH
69811APLATE, FRONT DOOR POWER WINDOW REGULATOR BASE
69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE
69820REGULATOR ASSY, FRONT DOOR WINDOW, LH
85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH
85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH
6981722020PLATE, QUARTER WINDOW REGULATOR BASE, RH
main69817-22020
6991330090BOLT, FRONT DOOR GLASS SETTING
main69913-30090
9010508077
main90105-08077
9010508205
main90105-08205
9010508291
main90105-08291
9010510165
main90105-10165
9011906753
main90119-06753
9015380002
main90153-80002
9017906033
main90179-06033
9017906060
main90179-06060
9017906159
main90179-06159
9017906308
main90179-06308
9017910191
main90179-10191
9017910192
main90179-10192
9020210024
main90202-10024
9020210025
main90202-10025
9020210026
main90202-10026
9020909005
main90209-09005
9090179005
main90901-79005
91611B0614
main91611-B0614
9331914010
main93319-14010
9338316014
main93383-16014
39 parts on this diagram · 1 diagram in section
