FRONT DOOR PANEL & GLASS

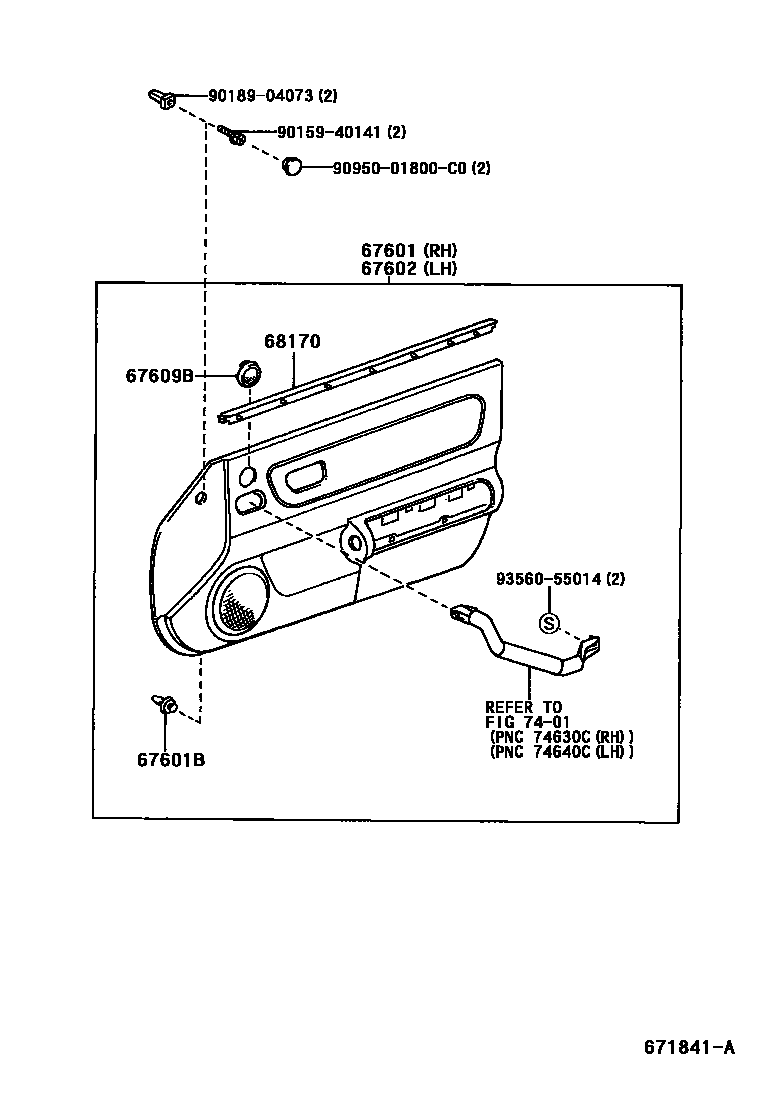

Parts diagram
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-17460-C1i199912-200008
BLACK,TRIM2#
main67610-17460-D0i199912-200008
RED,TRIM3#
main67610-17460-F0i199912-200008
YELLOW,TRIM5#
main67610-17470-C1i199912-200008
W(TWEETER SPEAKER),BLACK,TRIM2#
sub67610-17471
main67610-17470-C1i200008-200208
W(TWEETER SPEAKER),BLACK,TRIM2#,4#
sub67610-17471
main67610-17470-D0i199912-200208
W(TWEETER SPEAKER),RED,TRIM3#
sub67610-17471
main67610-17470-F0i199912-200208
W(TWEETER SPEAKER),YELLOW,TRIM5#
sub67610-17471
main67610-17490-C0i199912-200008
BLACK,TRIM2#
main67610-17490-D0i199912-200008
RED,TRIM3#
main67610-17490-F0i199912-200008
YELLOW,TRIM5#
main67610-17500-C0i199912-200008
W(TWEETER SPEAKER),BLACK,TRIM2#
main67610-17500-C0i200008-200208
W(TWEETER SPEAKER),BLACK,TRIM2#,4#
main67610-17500-D0i199912-200208
W(TWEETER SPEAKER),RED,TRIM3#
main67610-17500-F0i199912-200208
W(TWEETER SPEAKER),YELLOW,TRIM5#
main67610-17540-E0i200008-200208
TAN,TRIM4#
main67610-17570-B0i200208-200309
MD.GRAY,TRIM1#
sub67610-17571
main67610-17570-C0i200208-200309
BLACK,TRIM2#
sub67610-17571
main67610-17570-D0i200208-200309
RED,TRIM3#
sub67610-17571
main67610-17571-B0i200309-200402
MD.GRAY,TRIM1#
sub67610-17572
main67610-17571-C0i200309-200402
BLACK,TRIM2#
sub67610-17572
main67610-17571-D0i200309-200402
RED,TRIM3#
sub67610-17572
main67610-17572-B0i200402-200509
MD.GRAY,TRIM1#
sub67610-17592
main67610-17572-C0i200402-200509
BLACK,TRIM2#
sub67610-17592
main67610-17572-D0i200402-200509
RED,TRIM3#
sub67610-17592
main67610-17590-B0i200208-200309
MD.GRAY,TRIM1#
sub67610-17591
main67610-17590-C0i200208-200309
BLACK,TRIM2#
sub67610-17591
main67610-17590-D0i200208-200309
RED,TRIM3#
sub67610-17591
main67610-17591-B0i200309-200402
MD.GRAY,TRIM1#
sub67610-17592
main67610-17591-C0i200309-200402
BLACK,TRIM2#
sub67610-17592
main67610-17591-D0i200309-200402
RED,TRIM3#
sub67610-17592
main67610-17592-B0i200402-200509
MD.GRAY,TRIM1#
main67610-17592-C0i200402-200509
BLACK,TRIM2#
main67610-17592-D0i200402-200509
RED,TRIM3#
main67610-17610-C0i200208-200309
W(LEATHER TRIM),BLACK,TRIM2#
sub67610-17611
main67610-17610-E0i200208-200309
W(LEATHER TRIM),TAN,TRIM4#
sub67610-17611
main67610-17611-C0i200309-200402
W(LEATHER TRIM),BLACK,TRIM2#
sub67610-17612
main67610-17612-B1i200402-200509
W(LEATHER TRIM),GRAY,TRIM1#
main67610-17612-C0i200402-200509
W(LEATHER TRIM),BLACK,TRIM2#
main67610-17612-D0i200402-200509
W(LEATHER TRIM),RED,TRIM3#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-10161i199912-200509
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-17420-C1i199912-200008
BLACK,TRIM2#
main67620-17420-D0i199912-200008
RED,TRIM3#
main67620-17420-F0i199912-200008
YELLOW,TRIM5#
main67620-17430-C1i199912-200008
W(TWEETER SPEAKER),BLACK,TRIM2#
main67620-17430-C1i200008-200208
W(TWEETER SPEAKER),BLACK,TRIM2#,4#
main67620-17430-D0i199912-200208
W(TWEETER SPEAKER),RED,TRIM3#
main67620-17430-F0i199912-200208
W(TWEETER SPEAKER),YELLOW,TRIM5#
main67620-17450-C0i199912-200008
BLACK,TRIM2#
main67620-17450-D0i199912-200008
RED,TRIM3#
main67620-17450-F0i199912-200008
YELLOW,TRIM5#
main67620-17460-C0i199912-200008
W(TWEETER SPEAKER),BLACK,TRIM2#
main67620-17460-C0i200008-200208
W(TWEETER SPEAKER),BLACK,TRIM2#,4#
main67620-17460-D0i199912-200208
W(TWEETER SPEAKER),RED,TRIM3#
main67620-17460-F0i199912-200208
W(TWEETER SPEAKER),YELLOW,TRIM5#
main67620-17500-E0i200008-200208
TAN,TRIM4#
main67620-17530-B0i200208-200309
MD.GRAY,TRIM1#
sub67620-17531
main67620-17530-C0i200208-200309
BLACK,TRIM2#
sub67620-17531
main67620-17530-D0i200208-200309
RED,TRIM3#
sub67620-17531
main67620-17531-B0i200309-200402
MD.GRAY,TRIM1#
sub67620-17532
main67620-17531-C0i200309-200402
BLACK,TRIM2#
sub67620-17532
main67620-17531-D0i200309-200402
RED,TRIM3#
sub67620-17532
main67620-17532-B0i200402-200509
MD.GRAY,TRIM1#
main67620-17532-C0i200402-200509
BLACK,TRIM2#
main67620-17532-D0i200402-200509
RED,TRIM3#
main67620-17550-B0i200208-200309
MD.GRAY,TRIM1#
sub67620-17551
main67620-17550-C0i200208-200309
BLACK,TRIM2#
sub67620-17551
main67620-17550-D0i200208-200309
RED,TRIM3#
sub67620-17551
main67620-17551-B0i200309-200402
MD.GRAY,TRIM1#
sub67620-17552
main67620-17551-C0i200309-200402
BLACK,TRIM2#
sub67620-17552
main67620-17551-D0i200309-200402
RED,TRIM3#
sub67620-17552
main67620-17552-B0i200402-200509
MD.GRAY,TRIM1#
sub67620-17532
main67620-17552-C0i200402-200509
BLACK,TRIM2#
sub67620-17532
main67620-17552-D0i200402-200509
RED,TRIM3#
sub67620-17532
main67620-17570-C0i200208-200309
W(LEATHER TRIM),BLACK,TRIM2#
sub67620-17571
main67620-17570-E0i200208-200309
W(LEATHER TRIM),TAN,TRIM4#
sub67620-17571
main67620-17571-C0i200309-200402
W(LEATHER TRIM),BLACK,TRIM2#
sub67620-17572
main67620-17572-B1i200402-200509
W(LEATHER TRIM),GRAY,TRIM1#
main67620-17572-C0i200402-200509
W(LEATHER TRIM),BLACK,TRIM2#
main67620-17572-D0i200402-200509
W(LEATHER TRIM),RED,TRIM3#
67609BGRILLE SUB-ASSY, FRONT DOOR SPEAKER
main67609-17010-C0i200008-200208
BLACK,TRIM2#,3#,4#,5#,RH
main67609-17010-C0i199912-200008
BLACK,TRIM2#,3#,5#,RH
main67609-17020-C0i200208-200509
BLACK,TRIM1#,2#,3#,4#,RH
main67709-17010-C0i200008-200208
BLACK,TRIM2#,3#,4#,5#,LH
main67709-17010-C0i199912-200008
BLACK,TRIM2#,3#,5#,LH
main67709-17020-C0i200208-200509
BLACK,TRIM1#,2#,3#,4#,LH
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68171-17010i199912-200309
RH
sub68171-17011
main68171-17011i200309-200509
RH
main68172-17010i199912-200309
LH
sub68172-17011
main68172-17011i200309-200509
LH
7401
9015940141
main90159-40141
9018904073
main90189-04073
9095001800C0
main90950-01800C0
9356055014
main93560-55014

10 parts on this diagram · 2 diagrams in section
