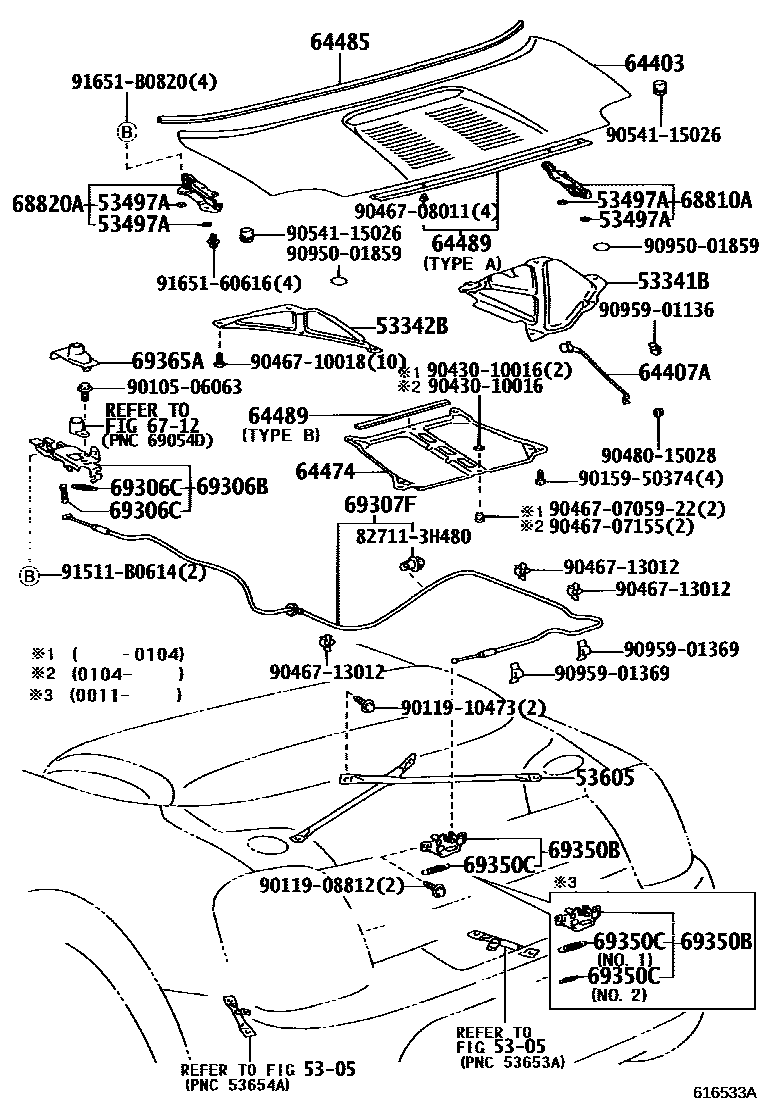

ENGINE HOOD & LOCK

5305

53341BINSULATOR, HOOD

main53341-17020iZZW30199912-200509

53342BINSULATOR, HOOD, NO.2

main53342-17010iZZW30199912-200509

53497APAD, HOOD HINGE, NO.1

main53497-12070iZZW30199912-200509

53605BRACE SUB-ASSY, REAR SUSPENSIOM, UPPER

main53605-17030iZZW30199912-200509

64403HOOD SUB-ASSY, ENGINE

main64403-17060iZZW30199912-200509

sub64403-17070

64407ASUPPORT SUB-ASSY, ENGINE HOOD

main64407-17050iZZW30199912-200509

64474PANEL, ENGINE HOOD, INNER LOWER

main64474-17021iZZW30199912-200509

64485SEAL, ENGINE HOOD TO UPPER BACK

main64485-17030iZZW30199912-200308

sub64485-17031

main64485-17031iZZW30200308-200509

64489SEAL, ENGINE HOOD TO INTER COOLER

main64489-17020iZZW30199912-200312

TYPE A:REFER TO ILLUSTRATION

sub64489-17021

main64489-17021iZZW30200312-200509

TYPE A:REFER TO ILLUSTRATION

main64489-17040iZZW30200104-200509

TYPE B:REFER TO ILLUSTRATION

6712

68810AHINGE ASSY, ENGINE HOOD, RH

main68810-17050iZZW30199912-200509

68820AHINGE ASSY, ENGINE HOOD, LH

main68820-17070iZZW30199912-200509

69306BLEVER SUB-ASSY, ENGINE HOOD LOCK CONTROL

main69306-17040iZZW30..RHD199912-200307

main69306-17041iZZW30..RHD200307-200509

main69306-17050iZZW30..LHD199912-200307

main69306-17051iZZW30..LHD200307-200509

69306CSPRING, TORSION(FOR ENGINE HOOD LOCK CONTROL LEVER)

main90506-09004iZZW30199912-200509

69307FCABLE ASSY, ENGINE HOOD LOCK CONTROL

main69307-17080iZZW30..RHD199912-200307

main69307-17081iZZW30..RHD200307-200509

main69307-17090iZZW30..LHD199912-200307

main69307-17091iZZW30..LHD200307-200509

69350BLOCK ASSY, ENGINE HOOD

main69350-17050iZZW30199912-200011

sub69350-17051

main69350-17051iZZW30200011-200509

69350CSPRING, TENSION(FOR ENGINE HOOD LOCK)

main90506-09052iZZW30200011-200509

NO.2

main90506-18078iZZW30..LHD199912-200011

main90506-20008iZZW30..RHD199912-200011

main90506-20008iZZW30200011-200509

NO.1

69365ABEZEL, ENGINE HOOD LOCK CONTROL

main69365-17030iZZW30..RHD199912-200509

main69365-17040iZZW30..LHD199912-200509

827113H480WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H480

9010506063

main90105-06063

9011908812

main90119-08812

9011910473

main90119-10473

9015950374

main90159-50374

9043010016

main90430-10016

904670705922

main90467-0705922

9046707155

main90467-07155

9046708011

main90467-08011

9046710018

main90467-10018

9046713012

main90467-13012

9048015028

main90480-15028

9054115026

main90541-15026

9095001859

main90950-01859

9095901136

main90959-01136

9095901369

main90959-01369

91511B0614

main91511-B0614

9165160616

main91651-60616

91651B0820

main91651-B0820

38 parts on this diagram · 1 diagram in section
