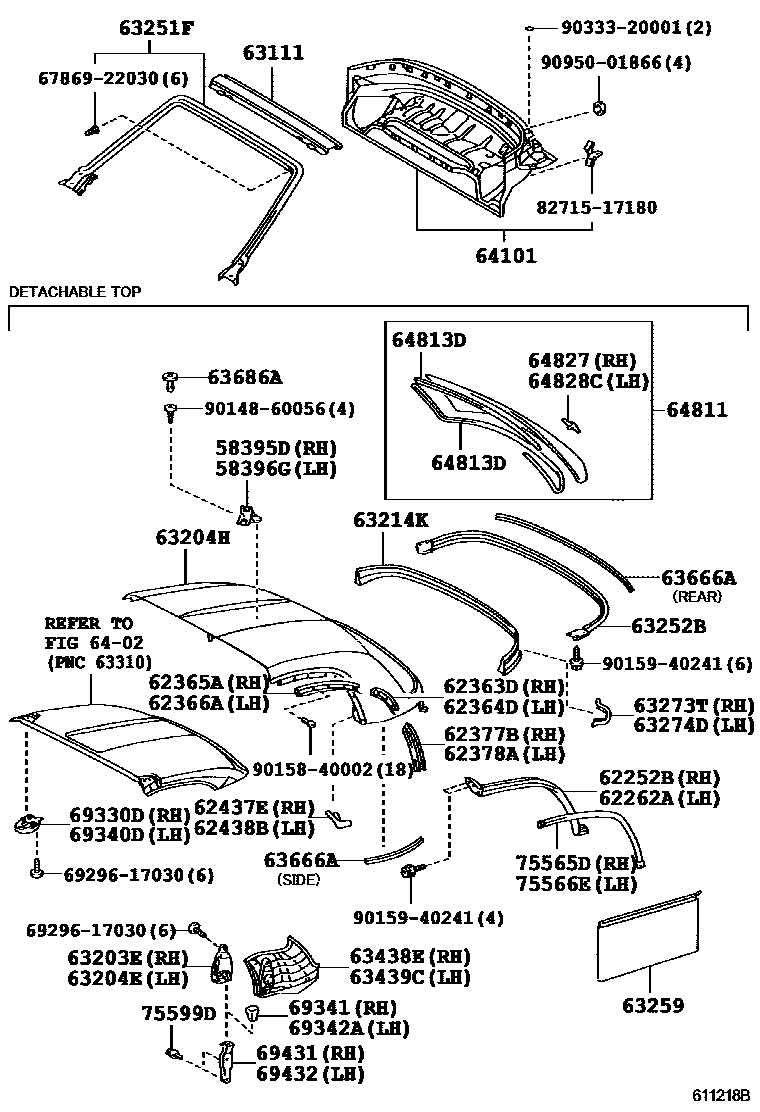

ROOF PANEL & BACK WINDOW GLASS
58395DBRACKET, REMOVABLE ROOF SET, RH
58396GBRACKET, REMOVABLE ROOF SET, LH
62252BWEATHERSTRIP, SIDE WINDOW, RH
62262AWEATHERSTRIP, SIDE WINDOW, LH
62363DRETAINER, ROOF SIDE RAIL WEATHERSTRIP, CENTER RH
62364DRETAINER, ROOF SIDE RAIL WEATHERSTRIP, CENTER LH
62365ARETAINER, REMOVABLE ROOF WEATHERSTRIP, FRONT RH
62366ARETAINER, REMOVABLE ROOF WEATHERSTRIP, FRONT LH
62377BRETAINER, REMOVABLE ROOF WEATHERSTRIP, REAR RH
62378ARETAINER, REMOVABLE ROOF WEATHERSTRIP, REAR LH
62437EPROTECTOR, BASE EDGE, NO.1
62438BPROTECTOR, BASE EDGE, NO.2
63111PANEL, ROOF
63203ELOCK SUB-ASSY, REMOVABLE ROOF, RH
63204ELOCK SUB-ASSY, REMOVABLE ROOF, LH
63204HPANEL SUB-ASSY, REMOVABLE ROOF
63214KPANEL, REMOVABLE ROOF, INNER REAR
BLACK,TRIM1#,2#,3#,4#
63251FWEATHERSTRIP, REMOVABLE ROOF, FRONT
63252BWEATHERSTRIP, REMOVABLE ROOF, REAR
63259CASE, REMOVABLE ROOF
63273TPROTECTOR, ROOF LOCK BASE, REAR RH
63274DPROTECTOR, ROOF LOCK BASE, REAR LH
63438ECOVER, ROOF SIDE FRAME END, RH
63439CCOVER, ROOF SIDE FRAME END, LH
63666APROTECTOR, ROOF, REAR
REAR
SIDE
63686ACOVER, REMOVABLE ROOF HOLDER
6402
64101PANEL SUB-ASSY, UPPER BACK
64811GLASS, BACK WINDOW
*EHT,T=2.8,GREEN
64813DDAM, BACK WINDOW GLASS ADHESIVE
L=2300
L=1084
64827CLIP, BACK WINDOW GLASS, RH
64828CCLIP, BACK WINDOW GLASS, LH
69330DLOCK ASSY, TARPAULIN, RH
69340DLOCK ASSY, TARPAULIN, LH
69341PLATE, TOP COVER HOOK, RH
69342APLATE, TOP COVER HOOK, LH
69431STRIKER, TOP COVER LOCK, NO.1 RH
69432STRIKER, TOP COVER LOCK, NO.1 LH
75565DPROTECTOR, ROOF SIDE GARNISH, NO.1
75566EPROTECTOR, ROOF SIDE GARNISH, NO.2
75599DBOLT, ROOF SIDE GARNISH
LOWER
UPPER
6786922030PLATE, WEATHERSTRIP, CENTER DOOR, UPPER
main67869-22030
6929617030SCREW, DOOR INSIDE HANDLE
main69296-17030
8271517180BRACKET,WIRING HARNESS CLAMP
main82715-17180
9014860056
main90148-60056
9015840002
main90158-40002
9015940241
main90159-40241
9033320001
main90333-20001
9095001866
main90950-01866
49 parts on this diagram · 1 diagram in section
