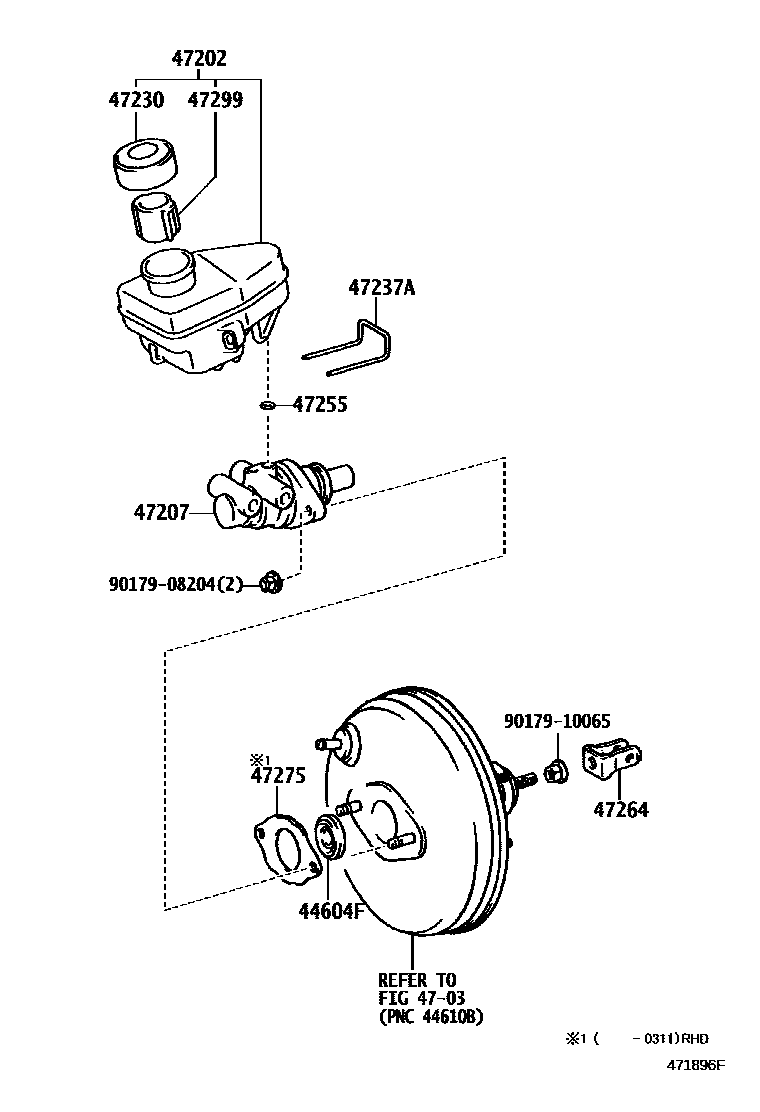

BRAKE MASTER CYLINDER

0001 1 0002 1

44604FSEAL, BRAKE BOOSTER BODY

main44604-52070iZZW30..RHD199912-200106

main44605-48010iZZW30..RHD200106-200509

4703

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-12110iZZW30..RHD199912-200203

sub47220-12111

main47220-12111iZZW30..RHD200203-200509

main47220-17080iZZW30..LHD199912-200509

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-17010iZZW30..RHD199912-200208

main47207-17010iZZW30..RHD..6F200208-200311

BRAKE BOOSTER MARK = 44610-17340

main47207-17011iZZW30..RHD..6F200311-200509

BRAKE BOOSTER MARK = 44610-17341

main47207-17020iZZW30..RHD..6FS200208-200311

BRAKE BOOSTER MARK = 44610-17340

main47207-17021iZZW30..RHD..6FS200311-200509

BRAKE BOOSTER MARK = 44610-17341

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iZZW30..LHD199912-200509

main47230-52030iZZW30..RHD199912-200509

sub47230-33071

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-52010iZZW30..RHD199912-200509

47255GROMMET, MASTER CYLINDER RESERVOIR

main31417-35010iZZW30..LHD199912-200509

main47255-52010iZZW30..RHD199912-200509

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-17020iZZW30..LHD199912-200509

main47264-52020iZZW30..RHD199912-200509

47275GASKET, BRAKE MASTER CYLINDER

main47275-52010iZZW30..RHD199912-200311

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iZZW30..LHD199912-200509

main47299-35010iZZW30..RHD199912-200106

sub47299-52010

main47299-52010iZZW30..RHD200106-200509

9017908204

main90179-08204

9017910065

main90179-10065

12 parts on this diagram · 2 diagrams in section
