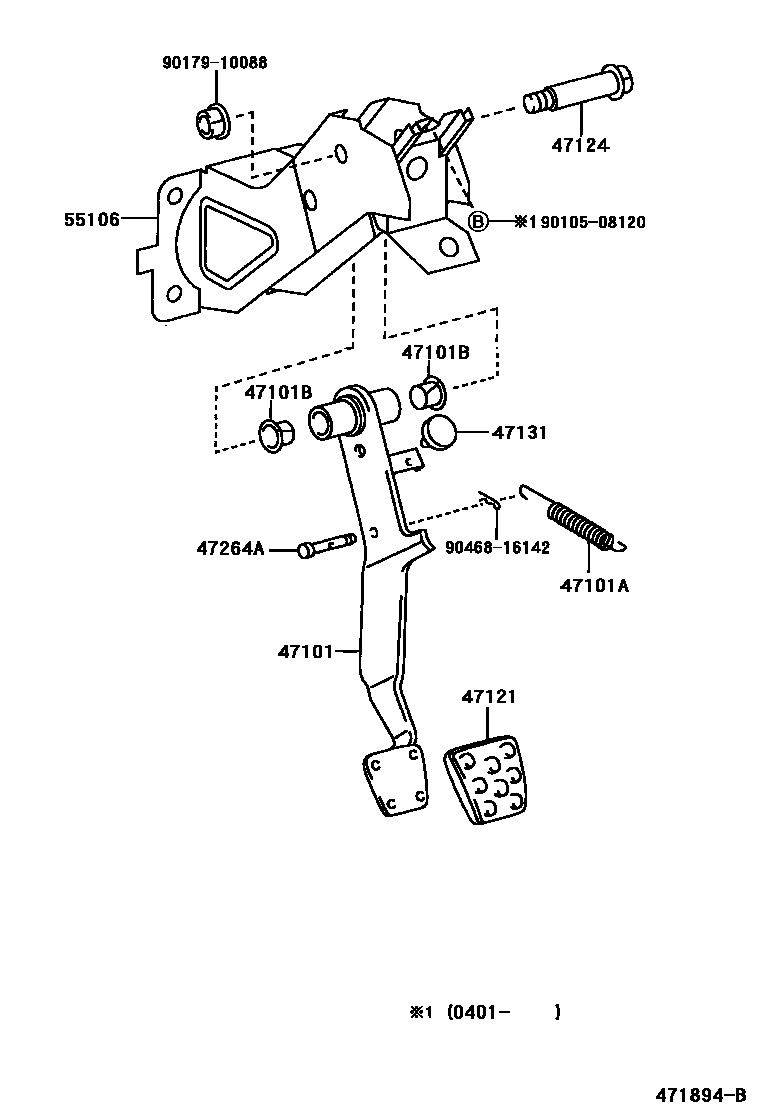

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-17110iZZW30..RHD199912-200509

main47101-17120iZZW30..LHD199912-200509

main47101-17130iZZW30..RHD..6FS200208-200509

main47101-17140iZZW30..LHD..6FS200208-200509

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14041iZZW30199912-200509

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iZZW30199912-200509

47121PAD, BRAKE PEDAL

main31321-53010iZZW30199912-200509

main47121-53010iZZW30..6FS200208-200509

47124SHAFT, BRAKE PEDAL

main90109-10167iZZW30199912-200509

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iZZW30199912-200509

47264APIN(FOR PUSH ROD)

main90249-08286iZZW30199912-200509

sub47148-20020

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-17050iZZW30..RHD199912-200202

sub55106-17051

main55106-17051iZZW30..RHD200202-200509

main55106-17060iZZW30..LHD199912-200202

sub55106-17061

main55106-17061iZZW30..LHD200202-200401

9010508120

main90105-08120

9017910088

main90179-10088

9046816142

main90468-16142

11 parts on this diagram · 2 diagrams in section
