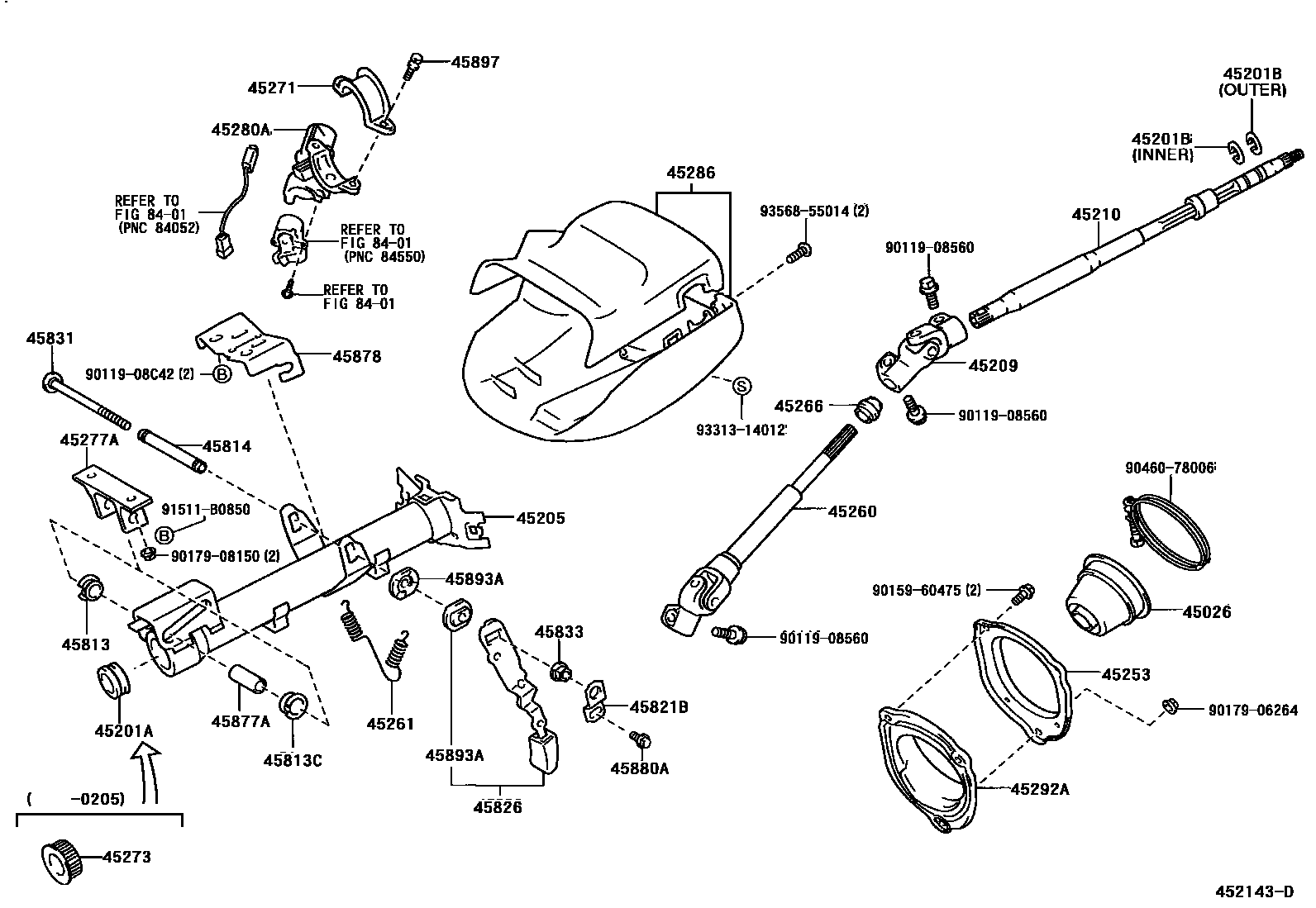

STEERING COLUMN & SHAFT
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,INNER
T=1.20,OUTER
45205TUBE SUB-ASSY, STEERING COLUMN
45209YOKE SUB-ASSY, STEERING SLIDING
45210SHAFT ASSY, STEERING MAIN
45253COVER, STEERING COLUMN HOLE
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45261SPRING, TILT STEERING JUMP UP
45266COVER, STEERING INTERMEDIATE SHAFT DUST
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286COVER, STEERING COLUMN
BLACK,TRIM2#,3#,5#
45292ACOVER, MAIN SHAFT LOWER DUST
45813COLLAR, TILT STEERING SUPPORT, NO.1
OD=24
45813CCOLLAR, TILT STEERING SUPPORT, NO.1
45814COLLAR, TILT STEERING SUPPORT, NO.2
OD=8
45821BREINFORCE, TILT STEERING SUPPORT, NO.1
45826LEVER, STEERING TILT
45831BOLT, TILT LEVER LOCK, NO.1
45833NUT, TILT STEERING ADJUSTING, NO.1
45877ASPACER, STEERING COLUMN BRACKET
45878BRACKET, STEERING COLUMN UPPER SUPPORT
45880ABOLT(FOR STEERING TILT LEVER)
45893ASTOPPER, TILT STEERING PAWL
45897BOLT, STEERING LOCK SET
8401
9011908560
main90119-08560
9011908C42
main90119-08C42
9015960475
main90159-60475
9017906264
main90179-06264
9017908150
main90179-08150
9046078006
main90460-78006
91511B0850
main91511-B0850
9331314012
main93313-14012
9356855014
main93568-55014
38 parts on this diagram · 2 diagrams in section
