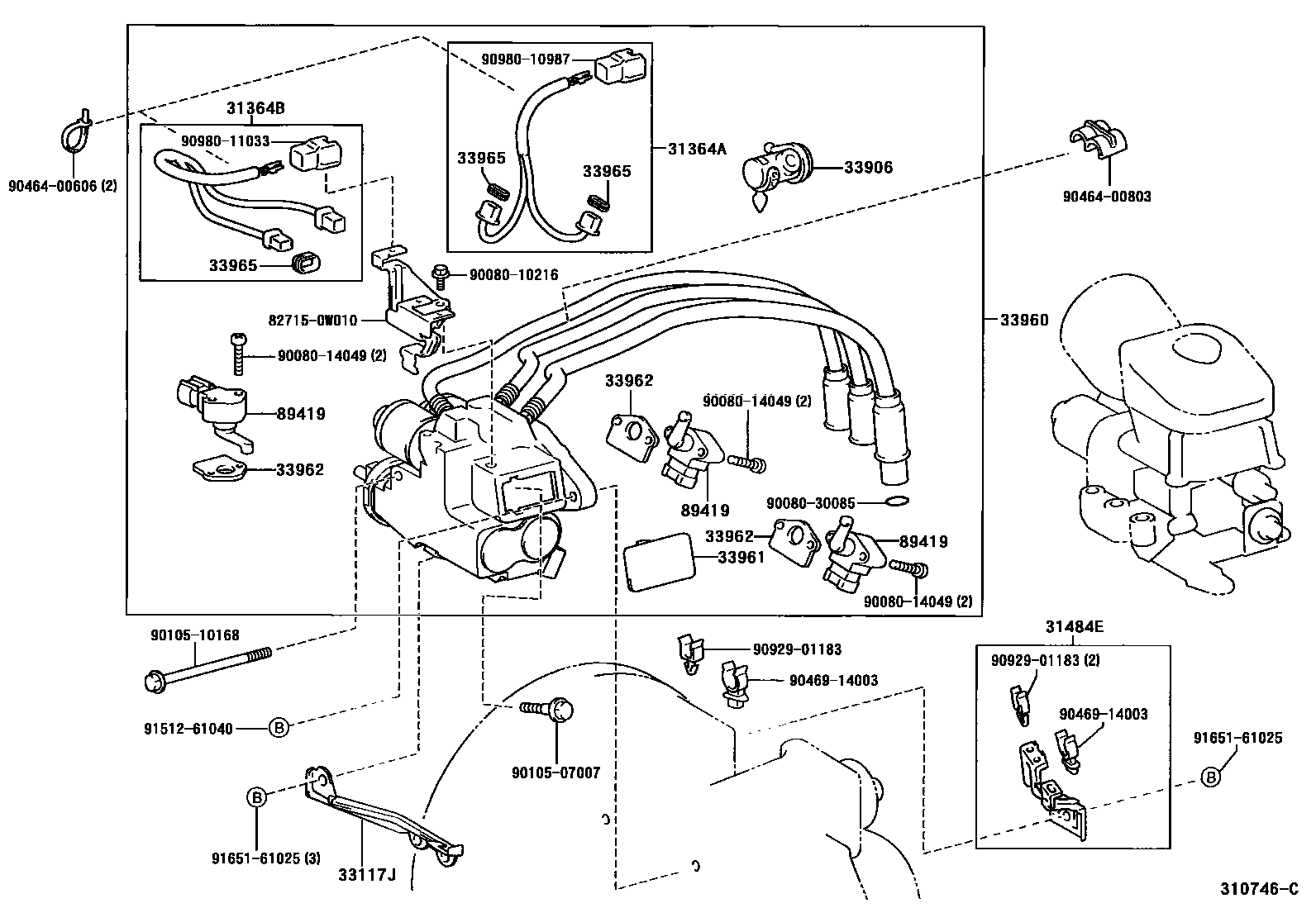

PUMP & ACTUATOR, SEQUENTIAL OR MULTI-MODE MANUAL TRANSAXLE

0001 1 0002 1

31364AWIRE, SEQUENTIAL TRANSMISSION, NO.1

main31364-0W020iZZW30..5FS200008-200509

31364BWIRE, SEQUENTIAL TRANSMISSION, NO.2

main31364-0W030iZZW30..5FS200008-200509

31484EBRACKET, FLEXIBLE HOSE NO.1

main31484-17021iZZW30..5FS200008-200509

33117JBRACKET, STIFFENER PLATE

main33117-17030iZZW30..5FS200008-200509

33906LINK SUB-ASSY, SEQUENTIAL TRANSMISSION ACTUATOR

main33906-0W010iZZW30..5FS200008-200509

33960ACTUATOR ASSY, SEQUENTIAL TRANSMISSION

main33960-0W010iZZW30..5FS200008-200108

sub33960-0W011

main33960-0W011iZZW30..5FS200108-200509

sub33970-0W012

33961COVER, SEQUENTIAL TRANSMISSION ACTUATOR

main33961-0W010iZZW30..5FS200008-200509

33962COVER, CLUTCH STROKE SENSOR

main33962-0W010iZZW30..5FS200008-200509

33965PACKING, STROKE SENSOR CONNECTOR

main33965-0W010iZZW30..5FS200008-200509

89419SENSOR, CLUTCH STROKE

main89419-0W010iZZW30..5FS200008-200108

sub89419-0W020

main89419-0W020iZZW30..5FS200108-200509

827150W010BRACKET,WIRING HARNESS CLAMP

main82715-0W010

9008010216

main90080-10216

9008014049

main90080-14049

9008030085

main90080-30085

9010507007

main90105-07007

9010510168

main90105-10168

9046400606

main90464-00606

9046400803

main90464-00803

9046914003

main90469-14003

9092901183

main90929-01183

9098010987

main90980-10987

9098011033

main90980-11033

9151261040

main91512-61040

9165161025

main91651-61025

24 parts on this diagram · 2 diagrams in section
