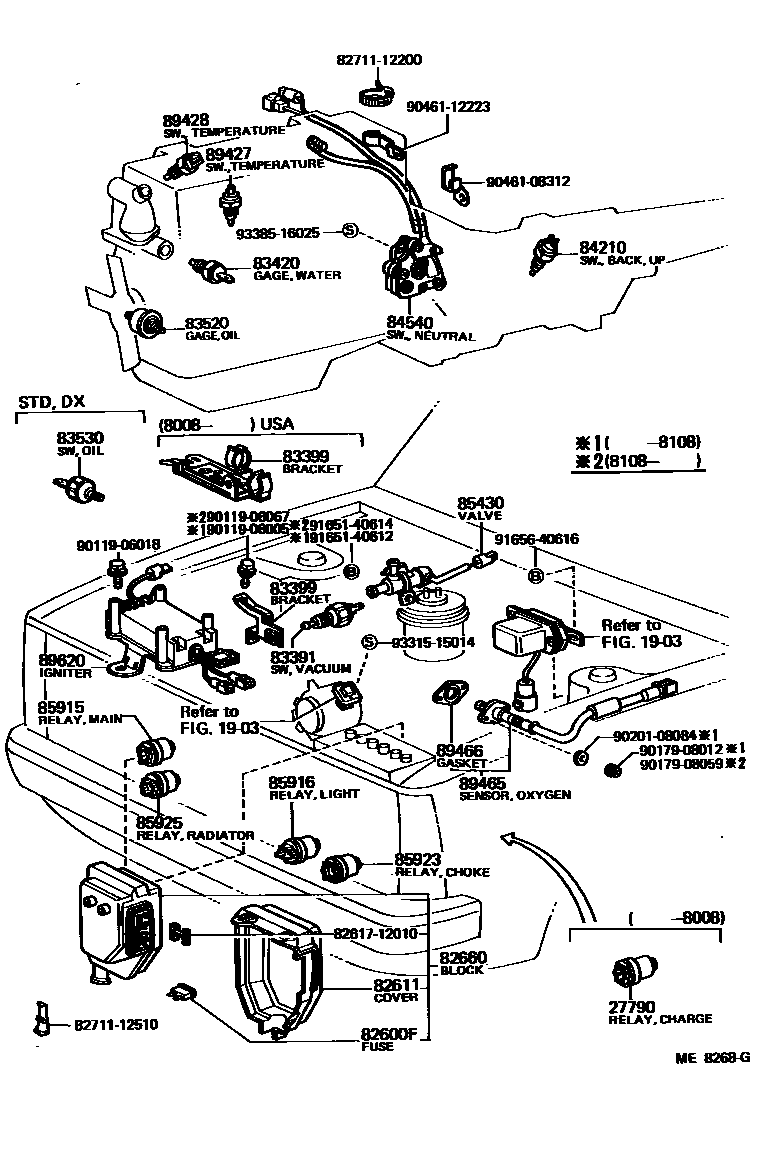

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1903

27790RELAY ASSY, CHARGE LAMP

main27790-13010i3TC..TE72198008-198108

main27790-28020i3TC..TE72..CND198012-198102

main27790-35010i4AC,3TC..AE71,TE72198108-198307

main90987-02001i3TC..TE72197908-198008

sub90999-99089

82600BLOCK ASSY, FUSE

main82600-12100iTE72..SED;TE72..WG..CND197908-198108

main82600-12110iTE72..WG..USA;TE72..CP,HT,LB197908-198108

main82600-12120iAE71,TE72..SED,WG198108-198307

main82600-12140iAE71,TE72..CP,HT,LB198108-198307

82600FFUSE, FUSE BLOCK

main90982-09001iTE72197908-198108

5A,5A

main90982-09002iTE72197908-198108

10A,10A

main90982-09003iAE71,TE72197908-198307

15A,15A

main90982-09004iAE71,TE72197908-198307

20A,YELLOW,20A

main90982-09005iAE71,TE72198008-198307

7.5A,7.5A

82611COVER, FUSE BLOCK

main82611-12090iTE72197908-198108

COWL SIDE,LH

main82611-12091iAE71,TE72198108-198307

COWL SIDE,LH

main82661-12010iTE72197908-198008

ENGINE ROOM

main82661-12011iTE72198008-198108

ENGINE ROOM

main82661-12012iAE71,TE72198108-198307

ENGINE ROOM

82660BLOCK ASSY, RELAY, ENGINE ROOM

main82660-12010iTE72197908-198008

ENGINE ROOM

main82660-12011iTE72198008-198108

ENGINE ROOM

main82660-12012iAE71,TE72198108-198307

ENGINE ROOM

main82660-12050iTE72197908-198108

COWL SIDE,LH

main82660-12051iAE71,TE72198108-198307

COWL SIDE,LH

83391SWITCH, VACUUM

main83391-14010iTE72197908-198208

main83391-16040iAE71..USA198208-198307

MARK=85M

main83391-16060iAE71198208-198307

MARK=200B

83399BRACKET, VACUUM SWITCH

main83399-12060iTE72197908-198208

main83399-12070iTE72..USA198008-198208

main83399-22011iAE71..CND198208-198307

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iAE71,TE72197908-198307

DENSO

sub83420-20020

main83420-20020iAE71,TE72197908-198307

YAZAKI

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14021iAE71..(CP,HT,LB)..(4FC,5F)198208-198307

SR5 PACKAGE

sub83520-14022

main83520-14021iTE72..SR5197908-198208

sub83520-14022

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iTE72..DX,STD197908-198208

sub83530-14030

main83530-12040iAE71198208-198307

sub83530-14040

84210SWITCH ASSY, BACK-UP LAMP

main84210-10051iAE71,TE72..MTM197908-198307

84540SWITCH ASSY, NEUTRAL START

main84540-12120iTE72..3FC197908-198008

sub84540-12121

sub90461-12223

sub93385-16025

main84540-12121iTE72..3FC198008-198108

sub84540-22150

main84540-14100iAE71..3FC198108-198307

main84540-14110iAE71..4FC198208-198307

85430VALVE, OUTER VENT CONTROL

main85430-12030iTE72..USA197908-198008

CALIFORNIA SPEC

main85430-12030iTE72..USA198008-198208

main85430-12040iAE71..USA198208-198307

85915RELAY, MAIN

main90987-02001iTE72197908-198012

sub90999-99089

main90987-02004iAE71,TE72198012-198307

85916RELAY, LIGHT CONTROL

main90987-01001iTE72197908-198012

sub90999-99088

main90987-01003iAE71,TE72198012-198307

85923RELAY, CHOKE CONTROL

main90987-02001iTE72..USA197908-198008

sub90999-99089

main90987-03001iTE72..CND197908-198008

COLD SPEC

85925RELAY, RADIATOR FAN

main90987-03001iTE72..CND197908-198208

89427SWITCH, TEMPERATURE DETECT

main89427-14020iTE72..USA198008-198208

main89427-16020iAE71..USA198208-198307

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-30030iTE72..CND197908-198108

COOLING FAN,MARK=95B

main89428-30031iTE72..CND198108-198208

89465SENSOR, OXYGEN

main89465-19055iTE72..USA198008-198208

sub89465-19265

main89465-29075iAE71..USA198208-198307

sub89465-29076

89466GASKET, OXYGEN SENSOR

main89466-30010iAE71,TE72..USA198008-198307

sub89466-20020

89620IGNITER ASSY

main89620-12190iTE72..USA197908-198008

CALIFORNIA SPEC

main89620-12190iTE72198008-198208

main89620-12200iTE72197908-198008

8261712010

main82617-12010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271112510WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12510

9011906005

main90119-06005

9011906018

main90119-06018

9011906067

main90119-06067

9017908012

main90179-08012

9017908059

main90179-08059

9020108084

main90201-08084

9046108312

main90461-08312

9046112223

main90461-12223

9065140612

main90651-40612

9165140614

main91651-40614

9165640616

main91656-40616

9331515014

main93315-15014

9338516025

main93385-16025

39 parts on this diagram · 6 diagrams in section
