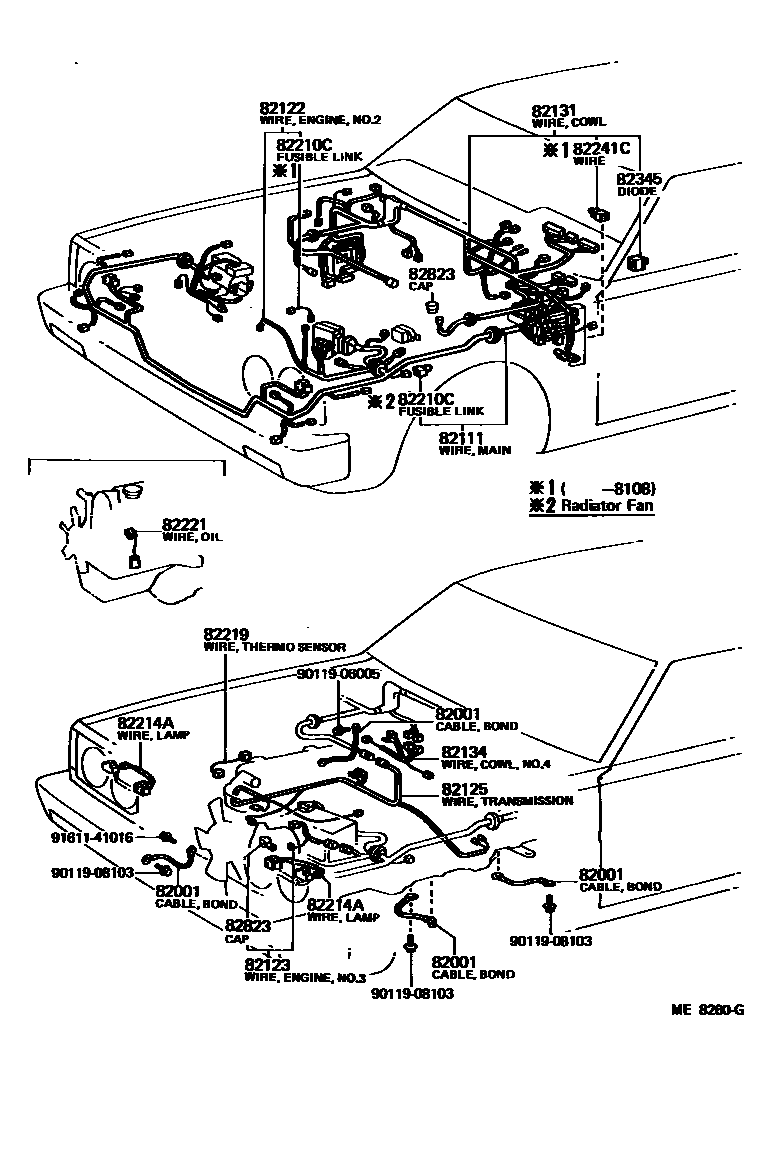

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

82001CABLE, BOND, NO.1

main90980-07062iTE72197908-198208

L=260

main90980-07118iAE71,TE72197908-198307

L=220

main90980-07119iTE72197908-198208

L=320

main90980-07177iTE72197908-198010

L=340

main90980-07219iAE71198208-198307

L=260

82111WIRE, ENGINE ROOM MAIN

main82111-12110iTE72..USA198108-198208

main82111-12120iTE72..CND198108-198208

main82111-12170iAE71..USA198208-198212

main82111-12171iAE71..USA198212-198307

main82111-12180iAE71..CND198208-198307

main82270-12490iTE72197908-198008

main82270-12491iTE72198008-198102

main82270-12492iTE72198102-198108

82122WIRE, ENGINE, NO.2

main82122-12060iTE72..USA198108-198208

main82122-12070iTE72198108-198208

W/IC REGULATOR

main82122-12110iAE71..USA198208-198307

main82122-12120iAE71198208-198307

W/IC REGULATOR

main82223-12430iTE72..USA197908-198008

main82223-12431iTE72..USA198008-198102

main82223-12432iTE72..USA198102-198108

main82223-12440iTE72197908-198008

W/IC REGULATER

main82223-12441iTE72198008-198108

W/IC REGULATER

main82223-12460iTE72..CND197908-198008

82123WIRE, ENGINE, NO.3

main82123-12030iTE72198108-198208

W/IC REGULATOR

main82123-12040iTE72..USA198108-198208

main82261-12270iTE72..USA197908-198108

main82261-12281iTE72197908-198108

W/IC REGULATER

main82261-12321iTE72..CND197908-198008

82125WIRE, TRANSMISSION

main82125-12080iTE72..MTM..(DX,STD)198108-198208

main82125-12090iTE72..ATM..(DX,STD)198108-198208

main82125-12100iTE72..5F..SR5198108-198208

main82125-12110iTE72..4FC..SR5198108-198208

main82125-12190iAE71..MTM..USA198208-198307

main82125-12200iAE71..ATM..USA198208-198307

main82125-12210iAE71..MTM..CND198208-198307

main82125-12220iAE71..3FC..CND198208-198307

main82310-12300iTE72..MTM..(DX,STD)197908-198008

main82310-12301iTE72..MTM..(DX,STD)198008-198108

main82310-12310iTE72..3FC197908-198008

main82310-12311iTE72..3FC198008-198108

main82310-12370iTE72..SR5197908-198008

main82310-12371iTE72..SR5198008-198108

82131WIRE, COWL

main82131-12220iTE72..(SED,WG)..USA198108-198208

main82131-12230iTE72..(CP,HT,LB)..USA198108-198208

main82131-12240iTE72..(SED,WG)..CND198108-198208

main82131-12250iTE72..(CP,HT,LB)..CND198108-198208

main82131-12300iAE71..(SED,WG)..USA198208-198212

main82131-12301iAE71..(SED,WG)..USA198212-198307

main82131-12310iAE71..(CP,HT,LB)..USA198208-198212

main82131-12311iAE71..(CP,HT,LB)..USA198212-198307

main82131-12320iAE71..(SED,WG)..CND198208-198307

main82131-12330iAE71..(CP,HT,LB)..CND198208-198307

main82230-12690iTE72..(SED,WG)..USA198008-198108

main82230-12700iTE72..(CP,HT,LB)..USA198008-198108

main82230-1A020iTE72..SED,WG197908-198008

main82230-1A022iTE72..(SED,WG)..CND198008-198108

main82230-1A030iTE72..CP,LB197908-198008

main82230-1A032iTE72..(CP,LB)..CND198008-198108

82134WIRE, COWL, NO.4

main82134-12030iAE71,TE72198108-198307

main82213-12020iTE72197908-198008

main82213-12021iTE72198008-198108

82210CFUSIBLE LINK

main90982-08052iTE72197908-198108

main90982-08121iTE72..USA197908-198208

RADIATOR FAN

main90982-08149iTE72..CND198108-198208

RADIATOR FAN

82214AWIRE, LAMP

main82214-12150iTE72..SED,WG197908-198008

82219WIRE, THERMO SENSOR

main82219-12070iTE72198008-198208

82221WIRE, OIL PRESSURE SWITCH

main82221-16030iAE71198208-198307

82241CWIRE, RELAY

main82241-12090iTE72198102-198108

82345DIODE

main82345-12010iTE72198008-198208

sub82345-12020

82823CAP, TERMINAL, NO.1

main82823-12020iAE71,TE72198108-198307

ALTERNATOR

main82823-30010iAE71,TE72..USA197908-198307

O2 SENSOR CHECK TERMINAL,4POLE

9011906005

main90119-06005

9011908103

main90119-08103

9161141016

main91611-41016

17 parts on this diagram · 10 diagrams in section
