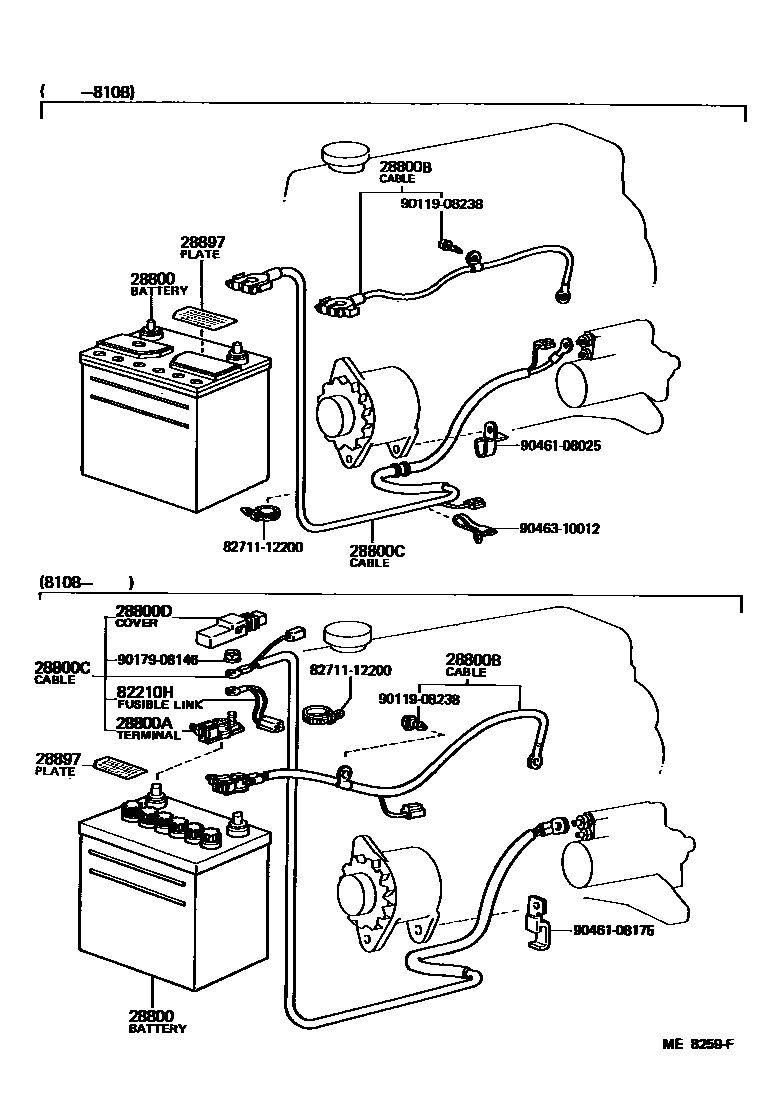

BATTERY & BATTERY CABLE

28800BATTERY

main28800-26010i3TC..TE72..USA197908-198008

N50L

sub28800-27010

main28800-27010i3TC..TE72..USA198008-198108

N50L-MF

sub28800-43090

main28800-30131i3TC..TE72197908-198108

55D26R,N50ZL

sub28800-73010

main28800-31031i4AC,3TC..AE71,TE72..USA197908-198307

32C24L,N40L

sub28800-31021

main28800-41040i3TC..TE72..USA198008-198108

N50ZL-MF

sub28800-43070

main28800-43070i4AC,3TC..AE71,TE72..USA198108-198307

55D23L

main28800-43090i4AC,3TC..AE71,TE72..USA198108-198307

50D20L

sub28800-31190

main28800-64010i4AC,3TC..AE71,TE72..CND198108-198307

55D23L,55D23L

sub28800-42041

28800ATERMINAL, BATTERY POSITIVE

main90982-05023i4AC,3TC..AE71,TE72198108-198307

sub90982-05029

28800BCABLE, BATTERY TO GROUND

main82046-12170i3TC..TE72197908-198008

main82046-12171i3TC..TE72198008-198108

main82113-12040i3TC..TE72198108-198208

main82113-12080i4AC..AE71198208-198307

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82021-12250i3TC..TE72197901-198108

main82112-12120i3TC..TE72198108-198208

main82112-12150i4AC..AE71198208-198307

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12150i4AC,3TC..AE71,TE72198108-198307

28897PLATE, BATTERY CAUTION

main28897-26010i4AC,3TC..AE71,TE72..USA197908-198307

N40L

main28897-38010i4AC,3TC..AE71,TE72..CND197908-198307

55D23L

main28897-45010i3TC..TE72..USA197908-198008

sub28897-26010

82210HFUSIBLE LINK

main90982-08021iAE71,TE72198108-198307

L=110,0.5G & 1.0Y

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9011908238

main90119-08238

9017908146

main90179-08146

9046108025

main90461-08025

9046108175

main90461-08175

9046310012

main90463-10012

13 parts on this diagram · 1 diagram in section
