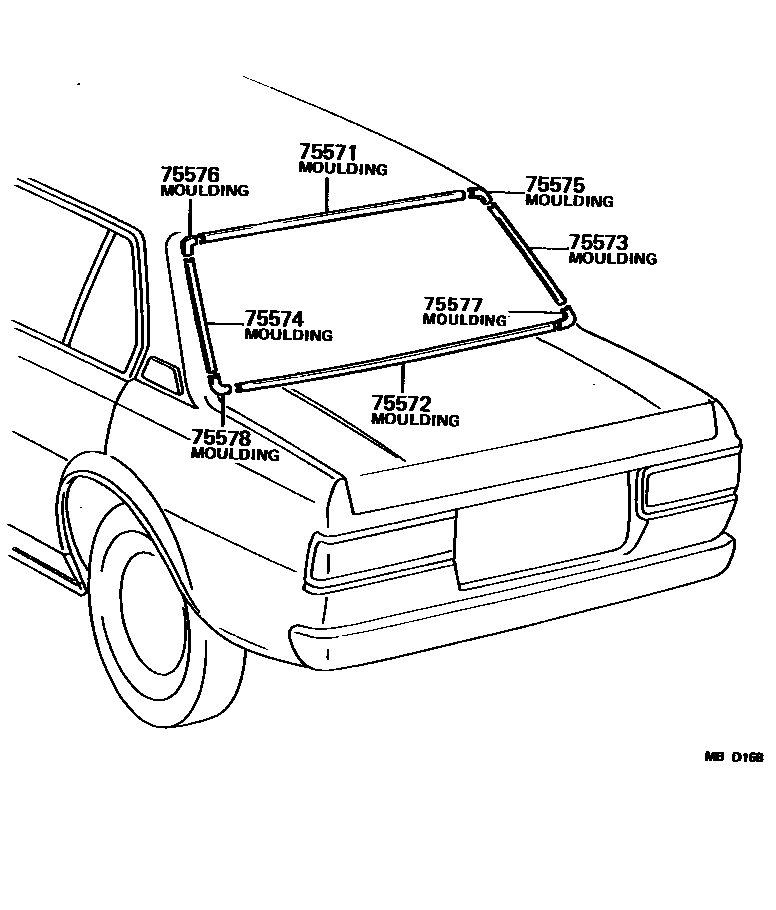

REAR MOULDING

0001 1 0002 1 0003 1 0004 1

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-12190iAE71,TE72..SED..DX197908-198307

main75571-12200iAE71,TE72..HT198101-198307

main75571-12220iTE72..CP..DX197908-198208

main75571-12230iAE71,TE72..LB197908-198307

75572MOULDING, BACK WINDOW, LOWER

main75575-12130iAE71,TE72..SED..DX197908-198307

main75575-12140iAE71,TE72..HT198101-198307

main75575-12160iTE72..CP..DX197908-198208

main75575-12170iAE71,TE72..LB197908-198307

75573MOULDING, BACK WINDOW SIDE, RH

main75573-12170iAE71,TE72..SED..DX197908-198307

main75573-12180iAE71,TE72..HT198101-198307

main75573-12200iTE72..CP..DX197908-198208

main75573-12210iAE71,TE72..LB197908-198307

75574MOULDING, BACK WINDOW SIDE, LH

main75573-12170iAE71,TE72..SED..DX197908-198307

main75573-12180iAE71,TE72..HT198101-198307

main75573-12200iTE72..CP..DX197908-198208

main75573-12210iAE71,TE72..LB197908-198307

75575MOULDING, BACK WINDOW CORNER, UPPER RH

main75581-12090iAE71,TE72..(HT,SED)..(DX,SR5)197908-198307

main75581-12120iTE72..CP..DX197908-198208

main75581-12130iAE71,TE72..LB197908-198307

75576MOULDING, BACK WINDOW CORNER, UPPER LH

main75581-12090iAE71,TE72..(HT,SED)..(DX,SR5)197908-198307

main75581-12120iTE72..CP..DX197908-198208

main75581-12130iAE71,TE72..LB197908-198307

75577MOULDING, BACK WINDOW CORNER, LOWER RH

main75583-12070iAE71,TE72..SED..DX197908-198307

main75583-12080iAE71,TE72..HT198101-198307

main75583-12100iTE72..CP..DX197908-198208

main75583-12110iAE71,TE72..LB197908-198307

75578MOULDING, BACK WINDOW CORNER, LOWER LH

main75583-12070iAE71,TE72..SED..DX197908-198307

main75583-12080iAE71,TE72..HT198101-198307

main75583-12100iTE72..CP..DX197908-198208

main75583-12110iAE71,TE72..LB197908-198307

8 parts on this diagram · 4 diagrams in section
