BACK DOOR PANEL & GLASS

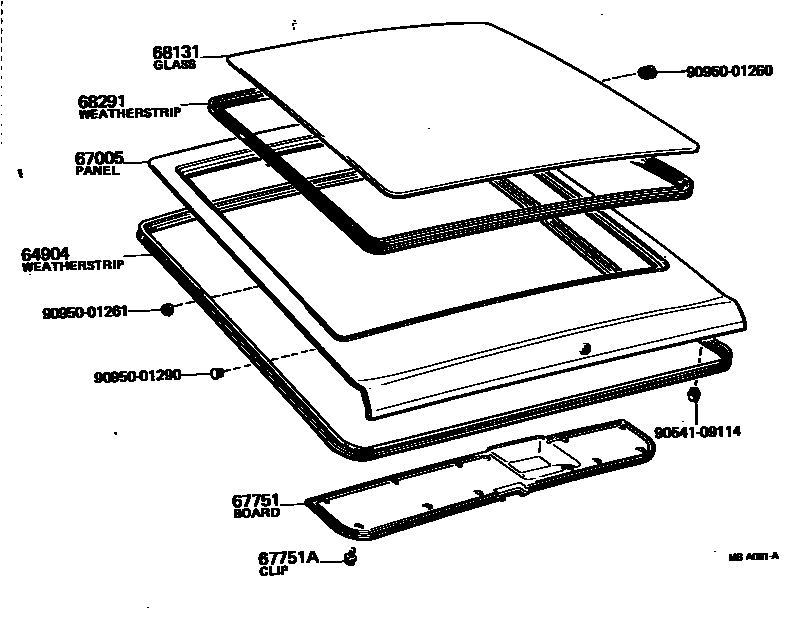

Parts diagram
64904WEATHERSTRIP SUB-ASSY, BACK DOOR
main67881-12030i197908-198307
main67881-12050i197908-198307
main67881-13050i197908-198307
67005PANEL SUB-ASSY, BACK DOOR
main67005-12241i198108-198307
W/RR WIPER
main67005-12261i198108-198307
main67005-12291i198108-198307
main67005-12301i198108-198307
W/RR WIPER
main67005-12900i197908-198108
W/RR WIPER
sub67005-12241
main67005-12901i197908-198108
sub67005-12261
main67005-12902i197908-198108
sub67005-12291
main67005-12903i197908-198108
W/RR WIPER
sub67005-12301
main67005-13360i198103-198108
W/RR WIPER
sub67005-13361
main67005-13361i198108-198307
W/RR WIPER
main67005-13430i198103-198108
sub67005-13431
main67005-13431i198108-198307
main67005-13915i197908-198103
sub67005-13430
main67005-13916i197908-198103
W/RR WIPER
sub67005-13360
67751BOARD, BACK DOOR TRIM
main64780-12010-01i197908-198307
W/O RR WIPER,BLACK,BLACK
main64780-12010-04i197908-198307
W/O RR WIPER,BLUE,BLUE
main64780-12010-06i197908-198307
W/O RR WIPER,DARK BROWN,BROWN
main64780-12020-01i197908-198307
W/O RR WIPER,BLACK,BLACK
main64780-12020-04i197908-198307
W/O RR WIPER,BLUE,BLUE
main64780-12020-06i197908-198307
W/O RR WIPER,DARK BROWN,BROWN
main64781-12010-01i197908-198307
W/RR WIPER,BLACK,BLACK
main64781-12010-04i197908-198307
W/RR WIPER,BLUE,BLUE
main64781-12010-06i197908-198307
W/RR WIPER,DARK BROWN,BROWN
main64781-12030-01i197908-198307
W/RR WIPER,BLACK,BLACK
main64781-12030-04i197908-198307
W/RR WIPER,BLUE,BLUE
main64781-12030-06i197908-198307
W/RR WIPER,DARK BROWN,BROWN
main67751-13080-01i197908-198307
BLACK,BLACK
sub67751-13080
main67751-13080-04i197908-198307
BLUE,BLUE
sub67751-13080
main67751-13080-06i197908-198008
LIGHT BROWN,BROWN
sub67751-13080
main67751-13080-16i198008-198307
LIGHT BROWN,BROWN
sub67751-13080
67751ACLIP(FOR BACK DOOR TRIM BOARD)
main90467-06017-01i198104-198307
BLACK,BLACK
sub90467-06017
main90467-06017-04i198104-198307
BLUE,BLUE
sub90467-06017
main90467-06017-06i198104-198307
LIGHT BROWN,BROWN
sub90467-06017
main90467-06017-16i198108-198307
DARK BROWN,BROWN
sub90467-06017
main90467-08015-01i197908-198104
BLACK,BLACK
sub90467-08015
main90467-08015-04i197908-198104
BLUE,BLUE
sub90467-08015
main90467-08015-06i197908-198008
LIGHT BROWN,BROWN
sub90467-08015
main90467-08015-16i198008-198104
LIGHT BROWN,BROWN
sub90467-08015
main90467-08114-11i197908-198108
BLACK,BLACK
sub90467-08114
main90467-08114-24i197908-198108
BLUE,BLUE
sub90467-08114
main90467-08114-36i197908-198108
DARK BROWN,BROWN
sub90467-08114
68131GLASS, BACK DOOR
main68105-12040i197908-198307
*TT,T=4.0,W/DEFOGGER
main68105-12050i197908-198307
*TT,T=4.0,W/DEFOGGER
main68105-12060i197908-198307
*TT,T=4.0,W/HEAVY DEFOGGER
main68105-12070i197908-198307
*TT,T=4.0,W/HEAVY DEFOGGER
main68105-13020i197908-198307
*TT,T=4.0,W/DEFOGGER
main68105-13050i197908-198307
*TT,T=4.0,W/HEAVY DEFOGGER
sub68105-13051
main68131-12020i197908-198307
*TT,T=4.0
sub68105-12040
main68131-12070i197908-198307
*TT,T=4.0
sub68105-12050
main68131-13080i197908-198307
*TEM,T=4.0
sub68105-13070
68291WEATHERSTRIP, BACK DOOR GLASS
main68291-12030i197908-198208
main68291-12040i197908-198307
sub68291-12030
main68291-12050i197908-198307
main68291-13090i197908-198307
9054109114
main90541-09114
9095001260
main90950-01260
9095001261
main90950-01261
9095001290
main90950-01290

10 parts on this diagram · 3 diagrams in section
