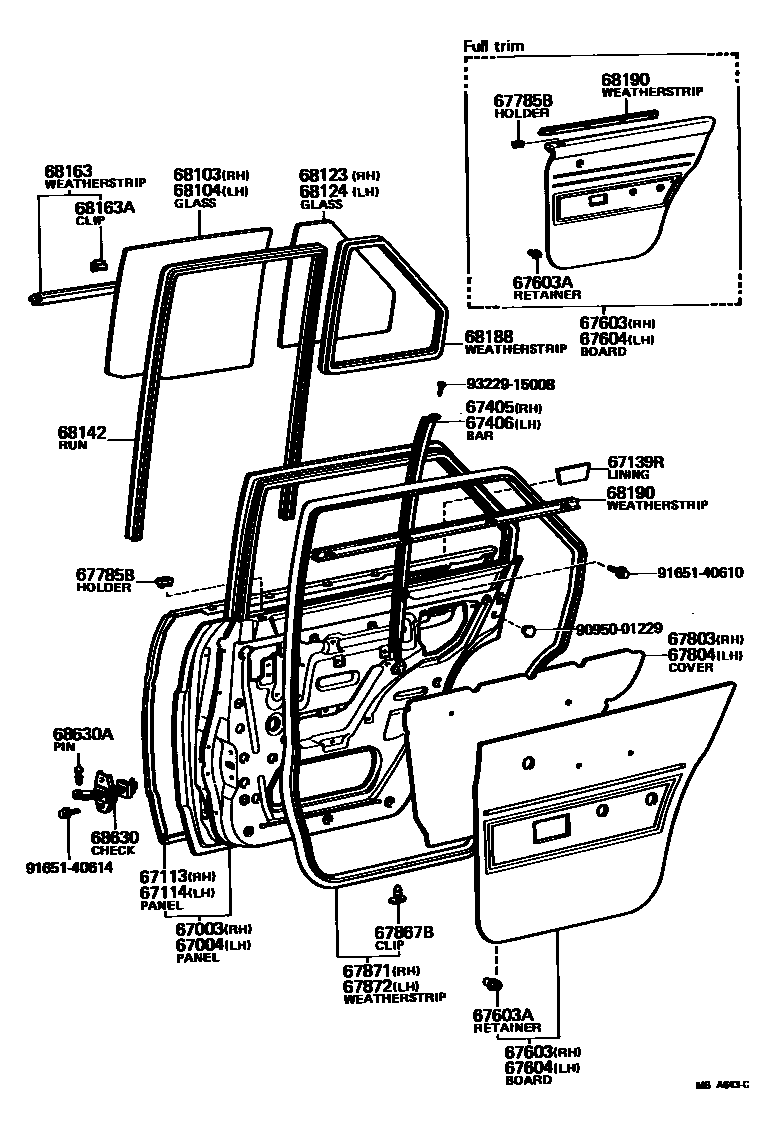

REAR DOOR PANEL & GLASS
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67139RLINING, DOOR OUTSIDE PANEL REINFORCEMENT
67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
IVORY,IVORY
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
FULL TRIM,BLACK,BLACK
FULL TRIM,BLUE,BLUE
FULL TRIM,LIGHT BROWN,BROWN
67603ARETAINER(FOR REAR DOOR TRIM BOARD)
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
IVORY,IVORY
BLACK,BLACK
BLUE,BLUE
LIGHT BROWN,BROWN
FULL TRIM,BLACK,BLACK
FULL TRIM,BLUE,BLUE
FULL TRIM,LIGHT BROWN,BROWN
67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
W/FULL TRIM
67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TT,T=3.5
*TT,T=3.5
68104GLASS SUB-ASSY, REAR DOOR, LH
*TT,T=3.5
*TT,T=3.5
68123GLASS, REAR DOOR WINDOW, RH
*TT,T=3.5
*TT,T=3.5
68124GLASS, REAR DOOR WINDOW, LH
*TT,T=3.5
*TT,T=3.5
68142RUN, REAR DOOR GLASS
L=1829.5
68163WEATHERSTRIP, REAR DOOR GLASS, OUTER
68163ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
RH
RH
LH
LH
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
W/FULL TRIM
68630APIN(FOR REAR DOOR CHECK)
sub68617-12010
9095001229
main90950-01229
9165140610
main91651-40610
9165140614
main91651-40614
9322915008
main93229-15008
31 parts on this diagram · 1 diagram in section
