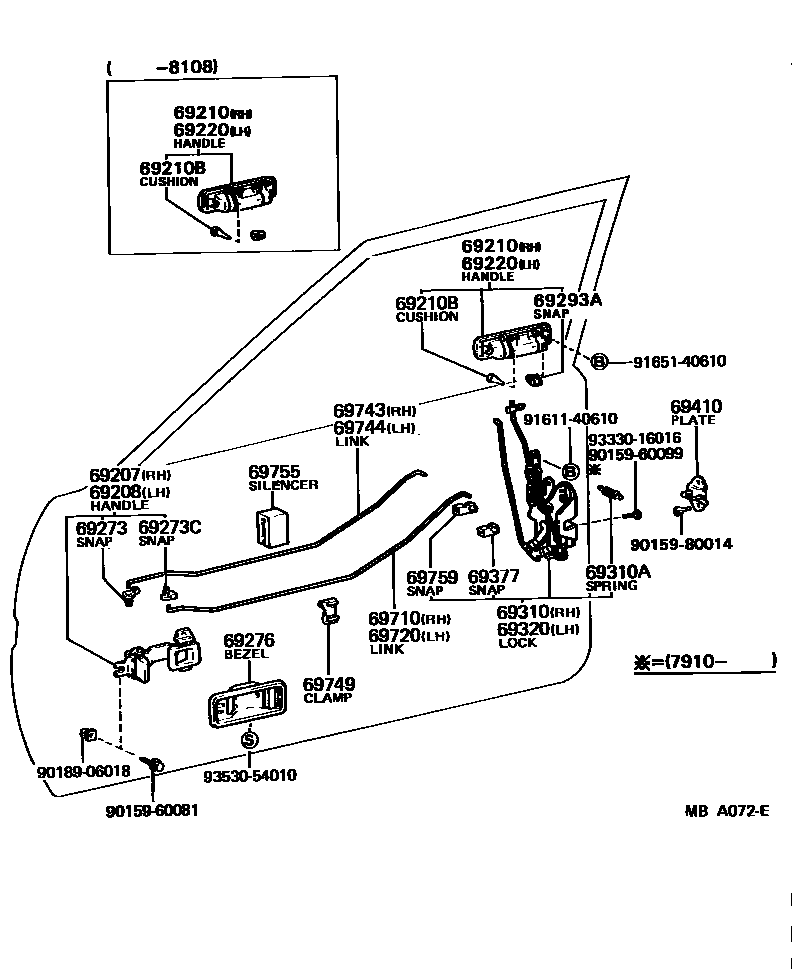

FRONT DOOR LOCK & HANDLE

0001 1 0002 1 0003 1

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12060-01iAE71,TE72..2D197908-198307

BLACK,BLACK

main69205-12060-04iAE71,TE72..2D197908-198307

BLUE,BLUE

main69205-12060-05iTE72..SED..2D197908-198008

BEIGE,BEIGE

main69205-12060-06iAE71,TE72..2D197908-198307

DARK BROWN,BROWN

main69205-12060-16iTE72..SED..2D198008-198108

LIGHT BROWN,BROWN

main69205-16010-01iAE71,TE72..4D197908-198307

BLACK,BLACK

sub69205-16010

main69205-16010-04iAE71,TE72..4D197908-198307

BLUE,BLUE

sub69205-16010

main69205-16010-05iTE72..4D197908-198008

BEIGE,BEIGE

sub69205-16010

main69205-16010-06iAE71,TE72..4D198108-198307

DARK BROWN,BROWN

sub69205-16010

main69205-16010-16iTE72..4D198008-198108

LIGHT BROWN,BROWN

sub69205-16010

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12060-01iAE71,TE72..2D197908-198307

BLACK,BLACK

sub69206-12060

main69206-12060-04iAE71,TE72..2D197908-198307

BLUE,BLUE

sub69206-12060

main69206-12060-05iTE72..SED..2D197908-198008

BEIGE,BEIGE

sub69206-12060

main69206-12060-06iTE72..CP,HT,LB197908-198307

DARK BROWN,BROWN

sub69206-12060

main69206-12060-16iTE72..SED..2D198008-198108

LIGHT BROWN,BROWN

sub69206-12060

main69206-16010-01iAE71,TE72..4D197908-198307

BLACK,BLACK

sub69206-16010

main69206-16010-04iAE71,TE72..4D197908-198307

BLUE,BLUE

sub69206-16010

main69206-16010-05iTE72..4D197908-198008

BEIGE,BEIGE

sub69206-16010

main69206-16010-06iAE71,TE72..4D198108-198307

DARK BROWN,BROWN

sub69206-16010

main69206-16010-16iTE72..4D198008-198108

LIGHT BROWN,BROWN

sub69206-16010

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-12040iAE71..HT,LB,SED,WG197908-198307

main69210-12050iAE71..CP197908-198210

sub69210-12070

main69210-12070iAE71..CP198210-198305

sub69210-12071

main69210-12071iAE71..CP198305-198307

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021iAE71,TE72197908-198307

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-12040iTE72..CP..DX;TE72..HT,LB,SED,WG197908-198307

main69220-12050iAE71..CP197908-198210

sub69220-12070

main69220-12070iAE71..CP198210-198305

sub69220-12071

main69220-12071iAE71..CP198305-198307

69273SNAP, DOOR INSIDE HANDLE ROD

main69273-30020iAE71,TE72..2D197908-198307

main69279-12010iAE71,TE72..4D197908-198307

69273CSNAP, DOOR INSIDE HANDLE LINK

main69279-10010iAE71,TE72..2D197908-198307

LH

main69288-10010iAE71,TE72..2D197908-198307

RH

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-12020-01iAE71,TE72..2D197908-198307

RH,BLACK,BLACK

sub69277-12020

main69277-12020-04iAE71,TE72..2D197908-198307

RH,BLUE,BLUE

sub69277-12020

main69277-12020-05iTE72..SED..2D197908-198008

RH,BEIGE,BEIGE

sub69277-12020

main69277-12020-06iAE71,TE72..2D197908-198307

RH,DARK BROWN,BROWN

sub69277-12020

main69277-12020-16iTE72..SED..2D198008-198108

RH,LIGHT BROWN,BROWN

sub69277-12020

main69277-16040-01iAE71,TE72..4D197908-198307

BLACK,BLACK

sub69277-16040

sub69277-89104

main69277-16040-04iAE71,TE72..4D197908-198307

BLUE,BLUE

sub69277-16040

sub69277-89104

main69277-16040-05iTE72..4D197908-198008

BEIGE,BEIGE

sub69277-16040

sub69277-89104

main69277-16040-06iAE71,TE72..4D198108-198307

DARK BROWN,BROWN

sub69277-16040

sub69277-89104

main69277-16040-16iTE72..4D198008-198108

LIGHT BROWN,BROWN

sub69277-16040

sub69277-89104

main69278-12020-01iAE71,TE72..2D197908-198307

LH,BLACK,BLACK

sub69278-12020

main69278-12020-04iAE71,TE72..2D197908-198307

LH,BLUE,BLUE

sub69278-12020

main69278-12020-05iTE72..SED..2D197908-198008

LH,BEIGE,BEIGE

sub69278-12020

main69278-12020-06iAE71,TE72..2D197908-198307

LH,DARK BROWN,BROWN

sub69278-12020

main69278-12020-16iTE72..SED..2D198008-198108

LH,LIGHT BROWN,BROWN

sub69278-12020

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12010iTE72..CP..SR5198109-198307

RH

main69293-12020iTE72..CP..SR5198109-198307

LH

main69293-22010iTE72..CP..DX;TE72..HT,LB,SED,WG198109-198307

RH

main69293-22020iAE71..HT,LB,SED,WG198109-198307

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-12070iAE71,TE72..SED..2D197908-198307

main69310-12080iTE72..4D197908-198010

sub69310-12081

main69310-12081iAE71,TE72..4D198010-198307

main69310-12090iAE71,TE72..CP,HT,LB197908-198307

69310ASPRING(FOR FRONT DOOR LOCK)

main90506-08031iAE71,TE72..SED,WG197908-198307

69320LOCK ASSY, FRONT DOOR, LH

main69320-12070iAE71,TE72..SED..2D197908-198307

main69320-12080iTE72..4D197908-198010

sub69320-12081

main69320-12081iAE71,TE72..4D198010-198307

main69320-12090iAE71,TE72..CP,HT,LB197908-198307

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69377-30020iAE71,TE72..SED,WG197908-198307

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-12040iAE71,TE72197908-198307

sub69410-90B02

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-12040iAE71,TE72..SED..2D197908-198307

main69711-12050iAE71,TE72..4D197908-198307

main69711-12060iAE71,TE72..CP,HT,LB197908-198307

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-12040iAE71,TE72..SED..2D197908-198307

main69712-12050iAE71,TE72..4D197908-198307

main69712-12060iAE71,TE72..CP,HT,LB197908-198307

69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH

main69733-12030iAE71,TE72..SED..2D197908-198307

main69733-12040iAE71,TE72..CP,HT,LB197908-198307

69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH

main69734-12030iAE71,TE72..SED..2D197908-198307

main69734-12040iAE71,TE72..CP,HT,LB197908-198307

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12010iTE72..4D197908-198208

main69749-12030iAE71,TE72..2D197908-198307

main69749-30020iAE71..4D198208-198307

69755SILENCER, FRONT DOOR LOCK LINK

main69759-12011iAE71,TE72..SED,WG197908-198307

main69759-12011iAE71,TE72..CP,HT,LB198108-198307

FR

main69759-30021iAE71,TE72..CP,HT,LB197908-198307

RR

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-12030iAE71,TE72..SED,WG197908-198307

9015960081

main90159-60081

9015960099

main90159-60099

9015980014

main90159-80014

9018906018

main90189-06018

9161140610

main91611-40610

9165140610

main91651-40610

9333016016

main93330-16016

9353054010

main93530-54010

29 parts on this diagram · 3 diagrams in section
