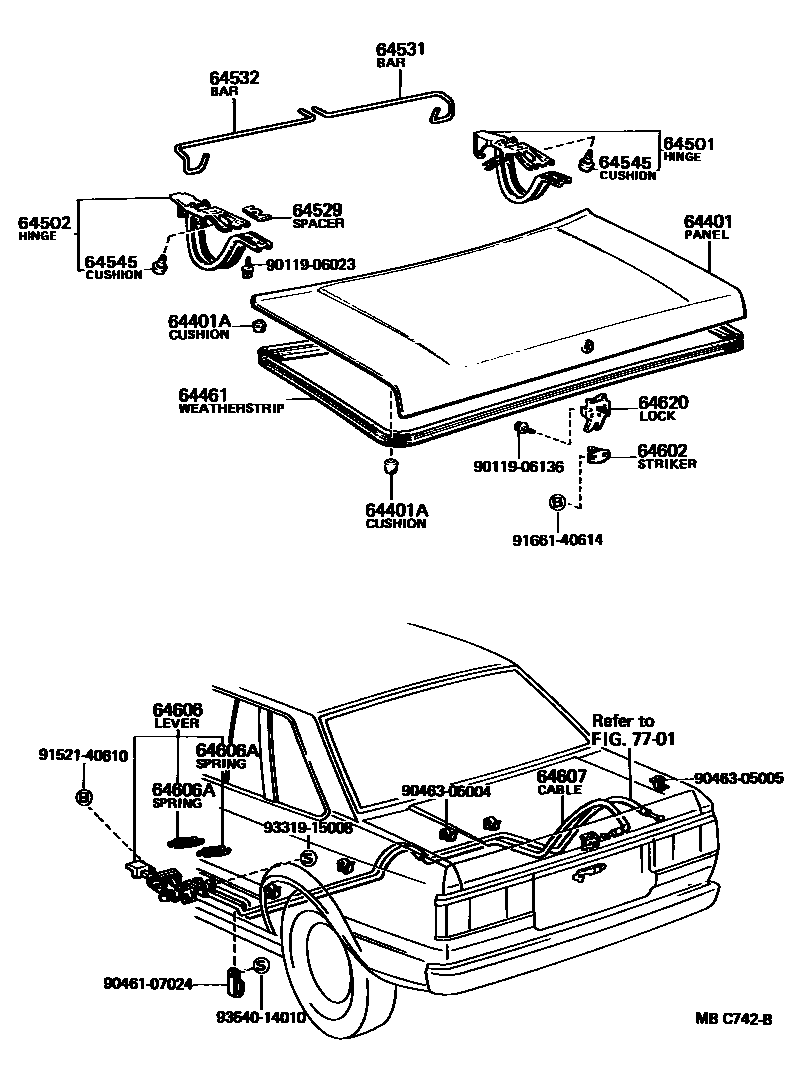

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-12909iAE71,TE72..SED197908-198307

main64401-12912iAE71,TE72..HT198101-198307

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-07003×2iTE72..HT,SED197908-198108

FR

main90541-09007×2iAE71,TE72..HT198101-198307

RR

main90541-09114×2iAE71,TE72..SED197908-198307

RR

main90541-09130×2iAE71,TE72..HT198108-198307

FR

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-12100iAE71,TE72..SED197908-198307

main64461-12190iAE71,TE72..HT198101-198307

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-12140iAE71,TE72..SED197908-198307

main64510-12160iAE71,TE72..HT198101-198307

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-12140iAE71,TE72..SED197908-198307

main64520-12150iAE71,TE72..HT198101-198307

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-20010×4iAE71,TE72..SED197908-198307

main64529-22010×4iAE71,TE72..HT198101-198307

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-12110iAE71,TE72..SED197908-198307

main64531-12120iAE71,TE72..HT198101-198307

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-12090iAE71,TE72..SED197908-198307

main64532-12110iAE71,TE72..HT198101-198307

64545CUSHION, LUGGAGE DOOR HINGE

main90541-07007×4iAE71,TE72..HT198101-198307

main90541-09013×2iTE72..SED197908-198006

main90541-09014×2iAE71,TE72..SED198006-198307

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-22030iAE71,TE72..HT,SED197908-198307

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-12040iAE71,TE72..HT198108-198307

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004×2iAE71,TE72..HT198108-198307

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-12110iAE71,TE72..HT198108-198307

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-12020iAE71..SED198208-198307

W/O CANCEL

main64610-20030iAE71..HT198208-198307

W/CANCEL

7701

9011906023

main90119-06023

9011906136

main90119-06136

9046107024

main90461-07024

9046305004

main90463-05004

9046305005

main90463-05005

9152140610

main91521-40610

9166140614

main91661-40614

9331915008

main93319-15008

9354014010

main93540-14010

24 parts on this diagram · 1 diagram in section
