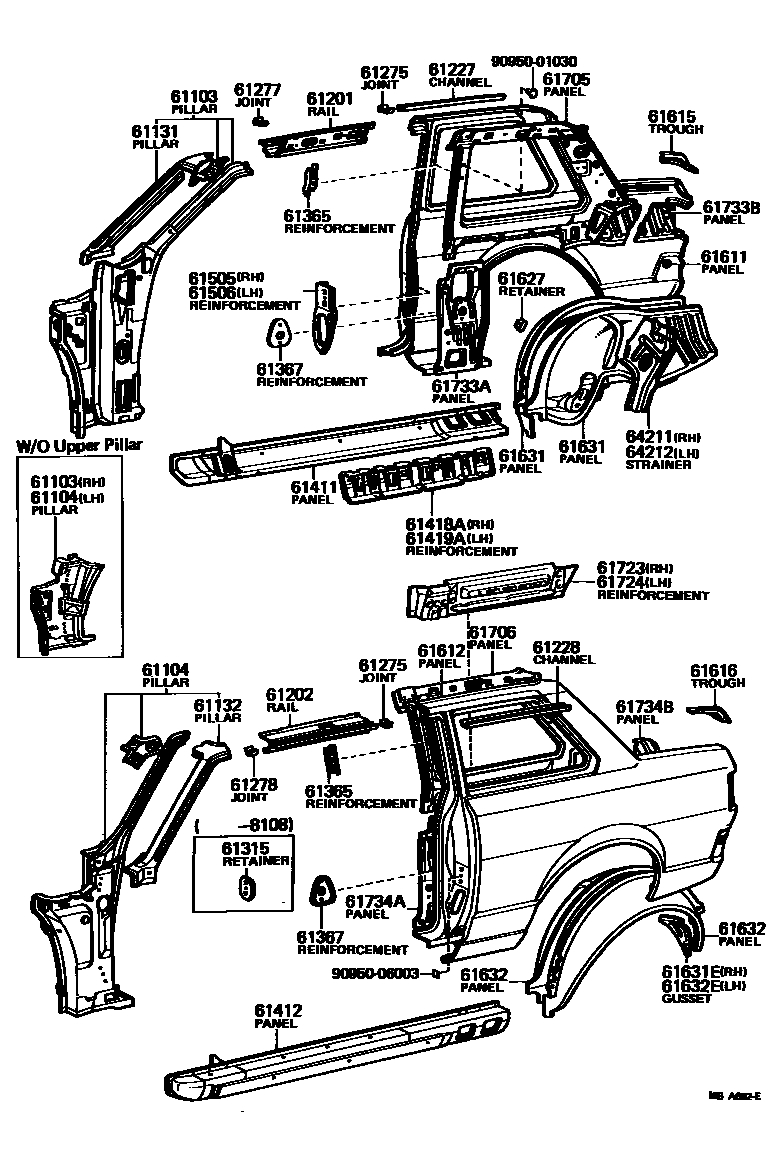

SIDE MEMBER
61103PILLAR SUB-ASSY, FRONT BODY, RH
W/O UPPER PILLAR
61104PILLAR SUB-ASSY, FRONT BODY, LH
W/O UPPER PILLAR
W/O UPPER PILLAR
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61202RAIL SUB-ASSY, ROOF SIDE, LH
61227CHANNEL, ROOF DRIP SIDE, REAR RH
61228CHANNEL, ROOF DRIP SIDE, REAR LH
61275JOINT, ROOF DRIP CHANNEL, REAR
61277JOINT, ROOF DRIP CHANNEL, FRONT RH
61278JOINT, ROOF DRIP CHANNEL, FRONT LH
61315RETAINER, DOOR LOCK STRIKER PLATE
61365REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR
RH
RH
LH
LH
61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
RH
LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61418AREINFORCEMENT, ROCKER PANEL, RH
61419AREINFORCEMENT, ROCKER PANEL, LH
61505REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH
61506REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH
61615TROUGH, LUGGAGE COMPARTMENT OPENING, RH
61616TROUGH, LUGGAGE COMPARTMENT OPENING, LH
61627RETAINER, QUARTER TRIM, LOWER
61631PANEL, QUARTER WHEEL HOUSE, RH
INNER,SR-5 PACKAGE
INNER
INNER
INNER
OUTER
OUTER
OUTER
61632PANEL, QUARTER WHEEL HOUSE, LH
INNER
INNER,SR-5 PACKAGE
INNER
INNER
OUTER
OUTER
61632EGUSSET, QUARTER WHEEL HOUSE, REAR LH
61706PANEL SUB-ASSY, ROOF SIDE, INNER LH
61723REINFORCEMENT, QUARTER WINDOW OPENING, REAR RH
61724REINFORCEMENT, QUARTER WINDOW OPENING, REAR LH
61733APANEL, ROOF SIDE, INNER FRONT RH
61733BPANEL, ROOF SIDE, INNER REAR RH
61734APANEL, ROOF SIDE, INNER FRONT LH
61734BPANEL, ROOF SIDE, INNER REAR LH
64211STRAINER, PACKAGE TRAY TO FLOOR, RH
SR-5 PACKAGE
64212STRAINER, PACKAGE TRAY TO FLOOR, LH
SR-5 PACKAGE
9095001030
main90950-01030
9095006003
main90950-06003
41 parts on this diagram · 6 diagrams in section
