MAT & CARPET

0001 1 0002 1

58520CARPET ASSY, FRONT FLOOR

main58510-12520-01iTE72197908-198108

W/HEATER DUCT,BLACK,BLACK

main58510-12520-04iTE72197908-198108

W/HEATER DUCT,BLUE,BLUE

main58510-12520-05iTE72197908-198008

W/HEATER DUCT,BEIGE,BEIGE

main58510-12520-06iTE72198008-198108

W/HEATER DUCT,LIGHT BROWN,BROWN

main58510-12521-01iTE72198108-198207

W/HEATER DUCT,BLACK,BLACK

main58510-12521-04iAE71,TE72198108-198307

W/HEATER DUCT,BLUE,BLUE

main58510-12521-06iAE71,TE72198108-198307

W/HEATER DUCT,LIGHT BROWN,BROWN

main58510-12521-11iAE71,TE72198207-198307

W/HEATER DUCT,BLACK,BLACK

main58510-12630-01iTE72..USA197908-198108

BLACK,BLACK

main58510-12630-04iTE72..USA197908-198108

BLUE,BLUE

main58510-12630-05iTE72..USA197908-198008

BEIGE,BEIGE

main58510-12630-06iTE72..USA198008-198108

LIGHT BROWN,BROWN

main58510-12631-01iTE72..USA198108-198207

BLACK,BLACK

main58510-12631-04iAE71,TE72..USA198108-198307

BLUE,BLUE

main58510-12631-06iAE71,TE72..USA198108-198307

LIGHT BROWN,BROWN

main58510-12631-11iAE71,TE72..USA198207-198307

BLACK,BLACK

58560CARPET ASSY, FLOOR, REAR

main58540-12410-01iTE72..CP,HT,LB,SED197908-198207

BLACK,BLACK

main58540-12410-04iAE71,TE72..CP,HT,LB,SED197908-198307

BLUE,BLUE

main58540-12410-05iTE72..CP,LB,SED197908-198008

BEIGE,BEIGE

main58540-12410-06iAE71,TE72..CP,HT,LB,SED198008-198307

LIGHT BROWN,BROWN

main58540-12410-11iAE71,TE72..CP,HT,LB,SED198207-198307

BLACK,BLACK

main58540-13160-01iTE72..WG197908-198207

BLACK,BLACK

main58540-13160-04iAE71,TE72..WG197908-198307

BLUE,BLUE

main58540-13160-06iTE72..WG197908-198008

LIGHT BROWN,BROWN

main58540-13160-11iAE71,TE72..WG198207-198307

BLACK,BLACK

main58540-13160-16iAE71,TE72..WG198008-198307

LIGHT BROWN,BROWN

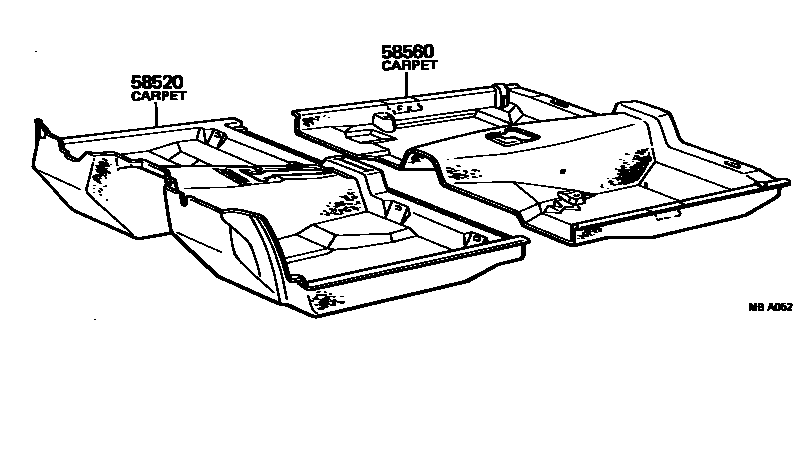

2 parts on this diagram · 2 diagrams in section
