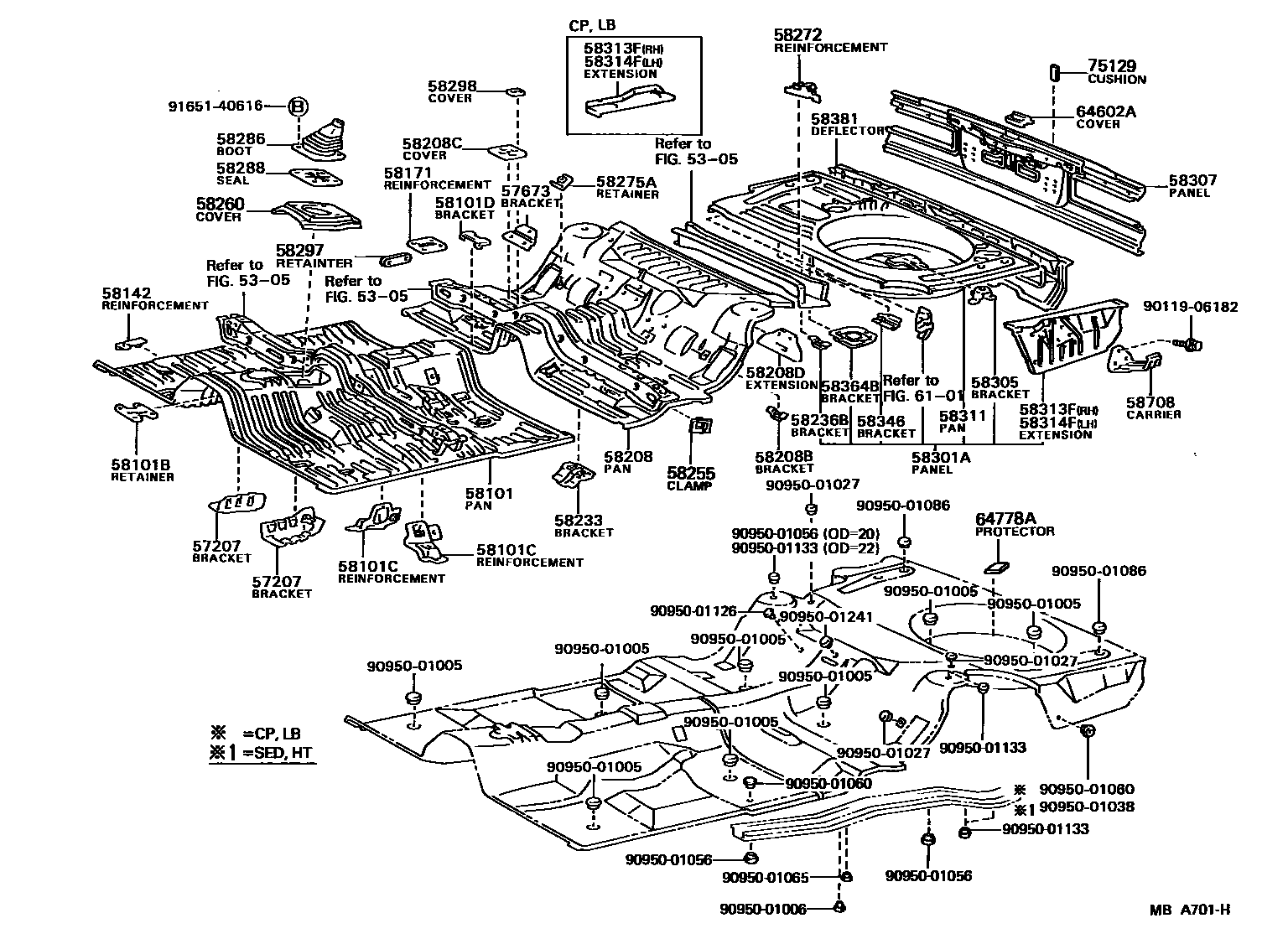

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

5305

57207BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER

main57207-12030iTE72197908-198107

RH

main57207-12050iAE71,TE72¥2,250198107-198307

RH

main57208-12040iTE72197908-198107

LH

main57208-12060iAE71,TE72¥3,450198107-198307

LH

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57673-12020iTE72..HT..SR5¥680197908-198307

58101PAN SUB-ASSY, FRONT FLOOR

main58111-12140iAE71,TE72¥43,800197908-198307

58101BRETAINER, CONSOLE BOX MOUNTING

main58164-12010iAE71,TE72¥680197908-198307

58101CREINFORCEMENT SUB-ASSY, DRIVE SHAFT SUPPORT

main58205-12020iAE71,TE72¥2,440197908-198307

RH

main58206-12020iAE71,TE72¥2,440197908-198307

LH

58101DBRACKET, PARKING BRAKE CABLE GUIDE

main58264-12020iAE71,TE72¥1,080197908-198307

58142REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN

main58141-16010iAE71,TE72¥460197908-198307

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-12040iAE71,TE72197908-198307

58208PAN, CENTER FLOOR

main58211-12090iTE72..CP,HT,LB,SED197908-198109

sub58211-12130¥26,500

main58211-12130iAE71,TE72..CP,HT,LB,SED¥26,500198109-198307

main58211-13060iAE71,TE72..WG¥20,200197908-198307

58208BBRACKET, CENTER FLOOR HEAT INSULATOR

main58236-14010iAE71,TE72¥680197908-198307

58208CCOVER, CENTER FLOOR HOLE

main58285-12010iAE71,TE72..CP,HT,LB,SED¥680197908-198307

58208DEXTENSION, CENTER FLOOR TO BRACE

main64227-12040iTE72..HT,SED197908-198307

58233BRACKET, EXHAUST PIPE MOUNTING

main58233-12010iAE71,TE72..CP,HT,LB,SED¥1,350197908-198307

main58233-13020iAE71,TE72..WG¥680197908-198307

58236BBRACKET, CENTER FLOOR HEAT INSULATOR

main58236-14010iAE71..CP,HT,LB,SED¥680198208-198307

58255CLAMP, PARKING BRAKE CABLE, NO.1

main58207-12040iAE71,TE72..CP,HT,LB,SED¥500197908-198307

RH

main58208-12040iAE71,TE72..CP,HT,LB,SED¥500197908-198307

LH

58260COVER ASSY, TRANSMISSION, FRONT

main58281-12010iAE71,TE72..MTM¥1,150197908-198307

main58281-12020iAE71,TE72..ATM¥1,150197908-198307

58272REINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58271-12030iAE71,TE72..CP,LB198108-198307

RH

main58272-12030iAE71,TE72..CP,LB198108-198307

LH

58275ARETAINER, REAR SEATBACK TO CENTER FLOOR

main58275-12010iTE72..HT,SED¥270197908-198307

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-12070iTE72..SR5¥2,170197908-198108

main58280-12070iAE71,TE72..(CP,HT,LB)..5F¥2,170198108-198307

W/CONSOLE

main58280-12080-01iTE72..(CP,HT,LB)..MTM..DX197908-198108

W/CONSOLE,BLACK,BLACK

sub58280-12080¥2,940

main58280-12080-04iTE72..(CP,HT,LB)..MTM..DX197908-198108

W/CONSOLE,BLUE,BLUE

sub58280-12080¥2,940

main58280-12080-06iTE72..(CP,HT,LB)..MTM..DX197908-198108

W/CONSOLE,DARK BROWN,BROWN

sub58280-12080¥2,940

main58280-12090iAE71,TE72..MTM..(DX,STD)¥3,170197908-198307

W/O CONSOLE

58288SEAL, SHIFT LEVER BOOT

main58288-12050iAE71,TE72..MTM¥1,190197908-198307

58297RETAINER, SEAT BELT RETRACTOR TO CENTER FLOOR

main58297-12010iAE71,TE72..CP,HT,LB,SED¥1,120197908-198307

58298COVER, CENTER FLOOR HOLE, NO.2

main58298-12010iAE71,TE72..CP,HT,LB,SED¥680198108-198307

58301APANEL SUB-ASSY, REAR FLOOR

main58301-12100iTE72..CP,LB197908-198102

sub58311-12150

sub58236-14010¥680

sub58305-10011¥350

sub58313-12090¥1,290

sub58314-12090¥1,600

sub58345-14010¥400

sub58364-12010¥3,140

sub90189-04002¥100

sub93560-54012¥60

sub93560-54014¥60

main58301-12110iTE72..SED197908-198208

sub58311-12150

sub58236-14010¥680

sub58303-12030

sub58305-10011¥350

sub58313-12080¥2,130

sub58345-14010¥400

sub58364-12010¥3,140

sub61645-12050¥310

sub90189-04002¥100

sub93560-54014¥60

main58301-12150iTE72..CP,LB198102-198208

sub58311-12150

sub58236-14010¥680

sub58305-10011¥350

sub58313-12090¥1,290

sub58314-12090¥1,600

sub58345-14010¥400

sub58364-12010¥3,140

sub90189-04002¥100

sub93560-54012¥60

sub93560-54014¥60

main58301-12160iTE72..HT198101-198208

sub58311-12150

sub58236-14010¥680

sub58303-12040

sub58305-10011¥350

sub58313-12130

sub58345-14010¥400

sub58364-12010¥3,140

sub61645-12050¥310

sub90189-04002¥100

sub93560-54014¥60

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iAE71,TE72..CP,HT,LB,SED¥350197908-198307

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-12530iAE71,TE72..SED¥16,700197908-198307

main58307-12550iAE71,TE72..CP¥16,700197908-198307

main58307-12580iAE71,TE72..LB¥15,100197908-198307

main58307-12610iAE71,TE72..HT¥16,700198101-198307

main58307-13070iAE71,TE72..WG¥14,000197908-198307

58311PAN, REAR FLOOR

main58311-12150iAE71..CP,HT,LB,SED198208-198307

main58311-13060iTE72..WG¥32,500197908-198307

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-12080iAE71,TE72..SED¥2,130197908-198307

main58313-12090iAE71,TE72..CP,LB¥1,290197908-198307

main58313-12130iAE71,TE72..HT198101-198307

main58313-13070iTE72..WG197908-198207

sub58313-13071

sub90480-79001¥640

sub90480-79002

main58313-13071iAE71,TE72..WG198207-198307

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58303-12030iAE71,TE72..SED197908-198307

main58303-12040iAE71,TE72..HT198101-198307

main58314-12090iAE71,TE72..CP,LB¥1,600197908-198307

main58314-13070iAE71,TE72..WG¥3,220197908-198307

58346BRACKET, REAR FLOOR HEAT INSULATOR

main58236-14010iAE71,TE72..WG¥680197908-198307

main58345-14010iAE71..CP,HT,LB,SED¥400198208-198307

sub58345-14020¥620

58364BBRACKET, FUEL TANK SUPPORT

main58364-12010iAE71..CP,HT,LB,SED¥3,140198208-198307

58381DEFLECTOR, REAR BUMPER STONE

main58308-12050iAE71,TE72..SED¥15,900197908-198307

main58308-12080iAE71,TE72..CP,HT,LB¥15,900197908-198307

main58308-13050iAE71,TE72..WG¥10,500197908-198307

58708CARRIER SUB-ASSY, JACK

main58709-13020iAE71,TE72..WG¥2,490197908-198307

main58791-12050iAE71,TE72..HT,SED¥840197908-198307

6101

64602ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-12010iAE71,TE72..HT,SED¥230197908-198307

64778APROTECTOR, SPARE WHEEL

main64778-12010iAE71,TE72..CP,HT,LB,SED¥1,530198008-198307

sub64778-12020¥1,540

75129CUSHION, REAR LICENSE PLATE

main75129-22010iAE71,TE72..HT,SED¥310197908-198307

9011906182

main90119-06182¥90

9095001005

main90950-01005¥400

9095001006

main90950-01006¥260

9095001027

main90950-01027¥160

9095001038

main90950-01038¥220

9095001056

main90950-01056¥230

9095001060

main90950-01060¥200

9095001065

main90950-01065¥280

9095001086

main90950-01086¥240

9095001126

main90950-01126¥360

9095001133

main90950-01133¥590

9095001241

main90950-01241¥320

9165140616

main91651-40616¥60

50 parts on this diagram · 2 diagrams in section
