COWL PANEL & WINDSHIELD GLASS

55074COVER SUB-ASSY, COWL INNER HEATER AIR

main55074-12010iTE72198011-198108

main55074-12011iTE72198108-198112

main55074-12020iAE71,TE72198112-198307

main55791-12050iTE72197908-198011

sub55074-12010

55075COVER SUB-ASSY, HEATER AIR DUCT HOLE

main55077-12050iAE71,TE72..USA197908-198307

55099COVER SUB-ASSY, DEFROSTER NOZZLE OPENING

main55099-12020iTE72..(SED,WG)..USA197908-198108

55701PANEL SUB-ASSY, COWL

main55700-12130iTE72..(SED,WG)..3FC197908-198108

sub55700-12131

sub55074-12011

sub90159-40009

sub90189-04033

main55700-12150iTE72..(SED,WG)..MTM197908-198108

sub55700-12151

sub55074-12011

sub90159-40009

sub90189-04033

main55700-12151iTE72..SED,WG198108-198205

sub55700-12152

sub90159-50110

sub90189-05023

main55700-12152iAE71..(SED,WG)..3FC198205-198307

main55700-12160iTE72..(CP,HT,LB)..3FC197908-198108

sub55700-12161

sub55074-12011

sub90159-40009

sub90189-04033

main55700-12180iTE72..(CP,HT,LB)..MTM197908-198108

sub55700-12181

sub55074-12011

sub90159-40009

sub90189-04033

main55700-12181iTE72..CP,HT,LB198108-198205

sub55700-12182

sub90159-50110

sub90189-05023

main55700-12182iTE72..CP,HT,LB198205-198208

main55700-12201iAE71..(SED,WG)..MTM198208-198307

sub55700-12152

main55700-12210iAE71..CP,HT,LB198208-198307

55701EREINFORCEMENT, HOOD HINGE MOUNTING

main55725-12070iAE71,TE72197908-198307

RH

main55726-12070iAE71,TE72197908-198307

LH

55701HSPACER, INSTRUMENT PANEL SAEFTY PAD

main55457-12010iTE72197908-198106

main55457-12020iAE71,TE72198106-198307

55711PANEL, COWL TOP, OUTER

main55711-12120iTE72..(SED,WG)..3FC197908-198108

sub55711-12131

sub55074-12011

sub90159-40009

sub90189-04033

main55711-12130iTE72..(SED,WG)..MTM197908-198108

sub55711-12131

sub55074-12011

sub90159-40009

sub90189-04033

main55711-12131iTE72..SED,WG198108-198205

sub55711-12132

sub90159-50110

sub90189-05023

main55711-12132iAE71,TE72..SED,WG198205-198307

main55711-12150iTE72..CP,HT,LB197908-198108

sub55711-12151

sub55074-12011

sub90159-40009

sub90189-04033

main55711-12151iTE72..CP,HT,LB198108-198205

sub55711-12152

sub90159-50110

sub90189-05023

main55711-12152iAE71,TE72..CP,HT,LB198205-198307

55717REINFORCEMENT, COWL TOP OUTSIDE

main55717-12050iAE71,TE72197908-198307

55755SCREEN, HEATER AIR DUCT

main55756-12040iAE71,TE72197908-198307

55781LOUVER, COWL VENTILATOR

main55781-12060iTE72..SED,WG197908-198108

main55781-12070iTE72..CP,HT,LB197908-198108

main55781-12090iAE71,TE72..SED,WG198108-198307

main55781-12110iAE71,TE72..CP,HT,LB198108-198307

55791WEATHERSTRIP, HOOD TO COWL TOP

main53383-12030iTE72197908-198108

main53383-12040iTE72..CP,HT,LB198007-198307

55791BCLIP(FOR HOOD TO COWL TOP WEATHERSTRIP)

main90467-06005iTE72197908-198307

55792COVER, WIPER MOTOR SERVICE HOLE

main55793-12030iAE71,TE72197908-198307

55795SHIELD, COWL TOP TO LOUVER, SIDE

main55751-12030iTE72198003-198108

main55751-12040iAE71,TE72198108-198307

main55751-14010iTE72197908-198003

55950NOZZLE ASSY, DEFROSTER

main55950-12040iAE71,TE72..SED,WG197908-198307

main55950-12050iAE71,TE72..CP,HT,LB197908-198307

55956NOZZLE, SIDE DEFROSTER

main55961-12080-01iAE71,TE72..SED,WG197908-198307

RH,BLACK,BLACK

sub55961-12080

main55961-12080-04iAE71,TE72..SED,WG197908-198307

RH,BLUE,BLUE

sub55961-12080

main55961-12080-06iAE71,TE72..SED,WG198108-198307

RH,DARK BROWN,BROWN

sub55961-12080

main55961-12080-15iTE72..SED,WG197908-198108

RH,BEIGE,BEIGE

sub55961-12080

main55961-12090-01iAE71,TE72..CP,HT,LB197908-198307

RH,BLACK,BLACK

main55961-12090-04iAE71,TE72..CP,HT,LB197908-198307

RH,BLUE,BLUE

main55961-12090-06iAE71,TE72..CP,HT,LB197908-198307

RH,DARK BROWN,BROWN

main55962-12070-01iAE71,TE72..SED,WG197908-198307

LH,BLACK,BLACK

sub55962-12070

main55962-12070-04iAE71,TE72..SED,WG197908-198307

LH,BLUE,BLUE

sub55962-12070

main55962-12070-06iAE71,TE72..SED,WG198108-198307

LH,DARK BROWN,BROWN

sub55962-12070

main55962-12070-15iTE72..SED,WG197908-198108

LH,BEIGE,BEIGE

sub55962-12070

main55962-12080-01iAE71,TE72..CP,HT,LB197908-198307

LH,BLACK,BLACK

main55962-12080-04iAE71,TE72..CP,HT,LB197908-198307

LH,BLUE,BLUE

main55962-12080-06iAE71,TE72..CP,HT,LB197908-198307

LH,DARK BROWN,BROWN

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55973-12030iAE71,TE72..SED,WG197908-198307

main55973-12040iAE71,TE72..CP,HT,LB197908-198307

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55971-12050iAE71,TE72..SED,WG197908-198307

RH

main55971-12060iAE71,TE72..CP,HT,LB197908-198307

RH

main55972-12030iAE71,TE72..SED,WG197908-198307

LH

main55972-12040iAE71,TE72..CP,HT,LB197908-198307

LH

55959COVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-14010iTE72..USA197908-198108

55979CUSHION, DEFROSTER NOZZLE

main55979-12010iTE72..(SED,WG)..USA198002-198108

56111GLASS, WINDSHIELD

main56111-12340iAE71,TE72..(SED,WG)..DX197908-198307

*TL,T=5.3

main56111-12370iAE71,TE72..(CP,HT,LB)..DX197908-198307

*TL,T=5.3

sub56111-12450

main56111-12390iAE71,TE72..STD197908-198307

*LAM,T=5.3

sub56111-12340

main56111-12450iTE72..SR5198108-198208

*TL,T=5.3

main56111-12450iAE71..(CP,HT,LB)..(4FC,5F)198208-198307

*TL,T=5.3,SR-5 PACKAGE

56116SPACER, WINDSHIELD GLASS

main56116-30020iAE71,TE72197908-198307

sub56116-24010

56121KDAM KIT, WINDSHIELD GLASS

main04562-30020iAE71,TE72197908-198307

sub04562-30030

9015940076

main90159-40076

9015950110

main90159-50110

9015960025

main90159-60025

9015960047

main90159-60047

9018305094

main90183-05094

9018904033

main90189-04033

9018905023

main90189-05023

9046706005

main90467-06005

9095001027

main90950-01027

9354015016

main93540-15016

9354055016

main93540-55016

9356055016

main93560-55016

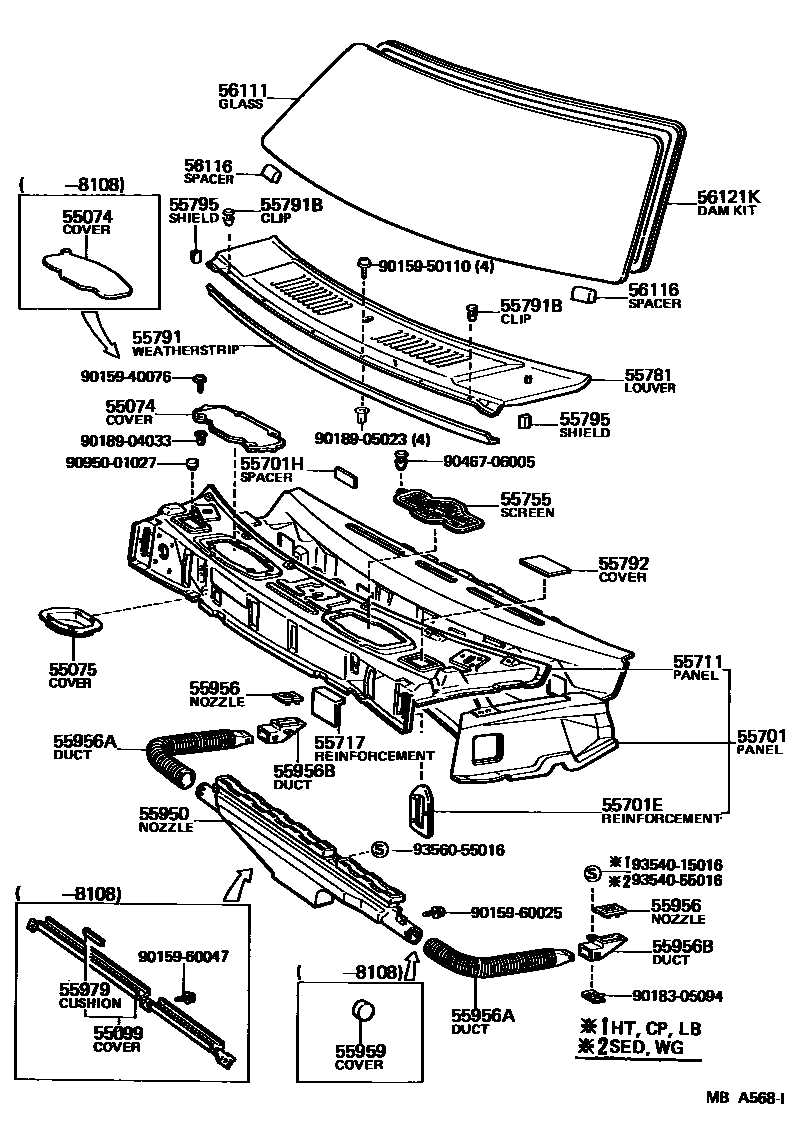

35 parts on this diagram · 1 diagram in section
