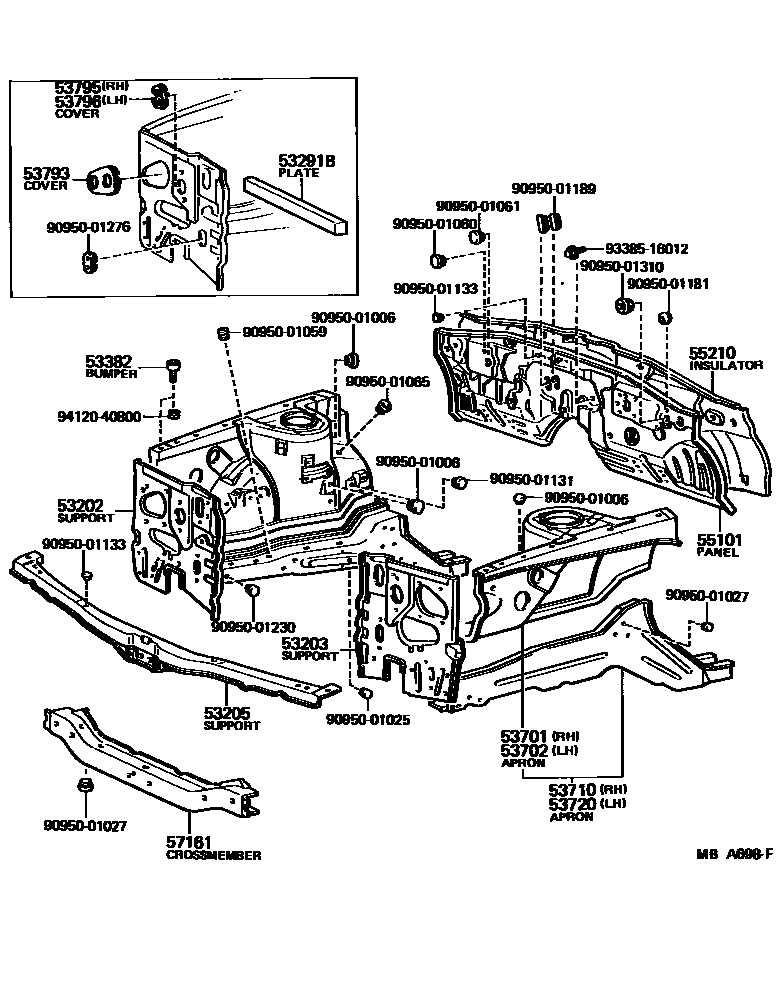

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-12160iTE72198108-198208

main53202-12200iAE71..MTM198208-198307

main53202-12210iAE71..ATM198208-198307

main53211-12120iTE72197908-198108

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-12130iTE72198108-198208

main53203-12160iAE71..MTM198208-198307

main53203-12170iAE71..ATM198208-198307

main53212-12110iTE72197908-198108

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-12901iTE72197908-198108

sub53216-12902

main53216-12902iAE71,TE72198108-198307

53291BPLATE, RADIATOR COVER

main53291-12050iAE71198208-198307

main53291-12060iTE72197908-198208

53382BUMPER, HOOD, FRONT

main53382-12040iAE71,TE72197909-198307

main53382-20011iTE72197908-197909

sub53382-90A00

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-12904iTE72197908-198108

main53701-12907iTE72198108-198208

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-12907iTE72..USA197908-198108

main53702-12908iTE72..CND197908-198108

main53702-12912iTE72..USA198108-198208

main53702-12913iTE72..CND198108-198208

53710APRON ASSY, W/FRONT SIDE MEMBER, RH

main53701-12400iTE72197908-198108

main53701-12401iTE72198108-198208

main53701-12590iAE71198208-198307

53720APRON ASSY, W/FRONT SIDE MEMBER, LH

main53702-12350iTE72..USA197908-198108

main53702-12351iTE72..USA198108-198208

main53702-12380iTE72..CND197908-198108

main53702-12381iTE72..CND198108-198208

main53702-12600iAE71198208-198307

53793COVER, HEADLAMP WIRE HARNESS HOLE, NO.1

main53793-12010iTE72..HT197908-198108

main53793-12020iAE71,TE72198108-198307

53795COVER, HEADLAMP WIRE HARNESS HOLE, RH

main53795-12010iTE72197908-198108

53796COVER, HEADLAMP WIRE HARNESS HOLE, LH

main53795-12010iTE72197908-198108

55101PANEL SUB-ASSY, DASH

main55101-12460iTE72197908-198208

main55101-12530iAE71198208-198307

sub55101-12531

55210INSULATOR ASSY, DASH PANEL

main55210-12150iTE72..MTM197908-198208

main55210-12160iTE72..ATM197908-198208

main55210-12180iAE71..MTM198208-198307

main55210-12190iAE71..ATM198208-198307

57161CROSSMEMBER, FRONT

main57161-12903iAE71,TE72197908-198307

9095001006

main90950-01006

9095001025

main90950-01025

9095001027

main90950-01027

9095001059

main90950-01059

9095001060

main90950-01060

9095001061

main90950-01061

9095001065

main90950-01065

9095001131

main90950-01131

9095001133

main90950-01133

9095001181

main90950-01181

9095001189

main90950-01189

9095001230

main90950-01230

9095001276

main90950-01276

9095001310

main90950-01310

9338516012

main93385-16012

9412040800

main94120-40800

31 parts on this diagram · 3 diagrams in section
