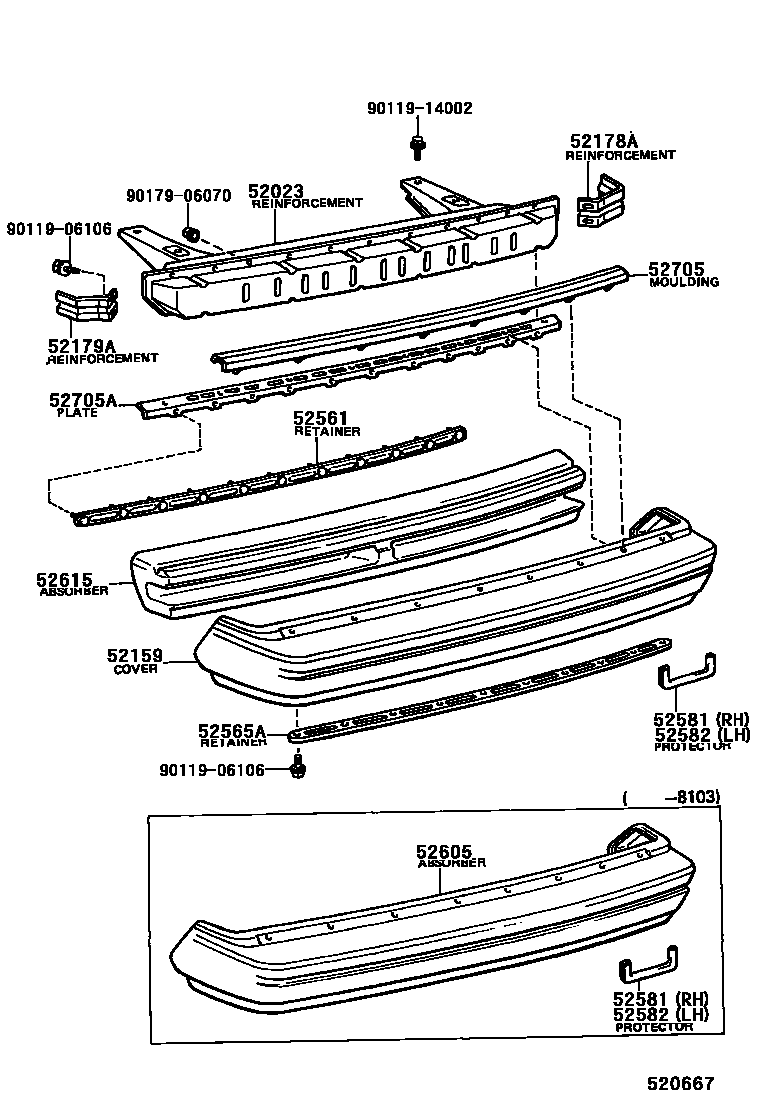

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-12040iAE71,TE72..CP,HT,LB,SED197908-198307

main52023-13010iAE71,TE72..WG197908-198307

52159COVER, REAR BUMPER

main52159-12011iTE72..SED198103-198108

main52159-12040iAE71,TE72..CP,HT,LB198103-198307

main52159-12050iAE71,TE72..SED198108-198307

main52159-13010iAE71,TE72..WG198103-198307

52178AREINFORCEMENT, REAR BUMPER BAR CORNER, RH

main52178-12010iAE71,TE72..SED197908-198307

52179AREINFORCEMENT, REAR BUMPER BAR CORNER, LH

main52179-12010iAE71,TE72..SED197908-198307

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-12010iAE71,TE72198103-198307

52565ARETAINER, REAR BUMPER, LOWER

main52565-12010iAE71,TE72197908-198307

52581PROTECTOR, REAR BUMPER, RH

main52581-12050iTE72..CP,LB,SED197908-198008

52582PROTECTOR, REAR BUMPER, LH

main52581-12050iTE72..CP,LB,SED197908-198008

52605ABSORBER SUB-ASSY, REAR BUMPER ENERGY

main52605-12021iTE72..SED197908-198103

sub52159-12011

sub52561-12010

sub52615-12010

main52605-12050iTE72..CP,HT,LB197908-198103

sub52159-12040

sub52561-12010

sub52615-12040

main52605-13010iTE72..WG197908-198103

sub52159-13010

sub52561-12010

sub52615-13010

52615ABSORBER, REAR BUMPER ENERGY

main52615-12010iAE71,TE72..SED198103-198307

main52615-12040iAE71,TE72..CP,HT,LB198103-198307

main52615-13010iAE71,TE72..WG198103-198307

52705MOULDING SUB-ASSY, REAR BUMPER

main52705-12010iTE72..SED197908-198108

52705APLATE, BUMPER MOULDING MOUNTING, REAR

main52198-12010iTE72..SED197908-198108

9011906106

main90119-06106

9011914002

main90119-14002

9017906070

main90179-06070

15 parts on this diagram · 4 diagrams in section
