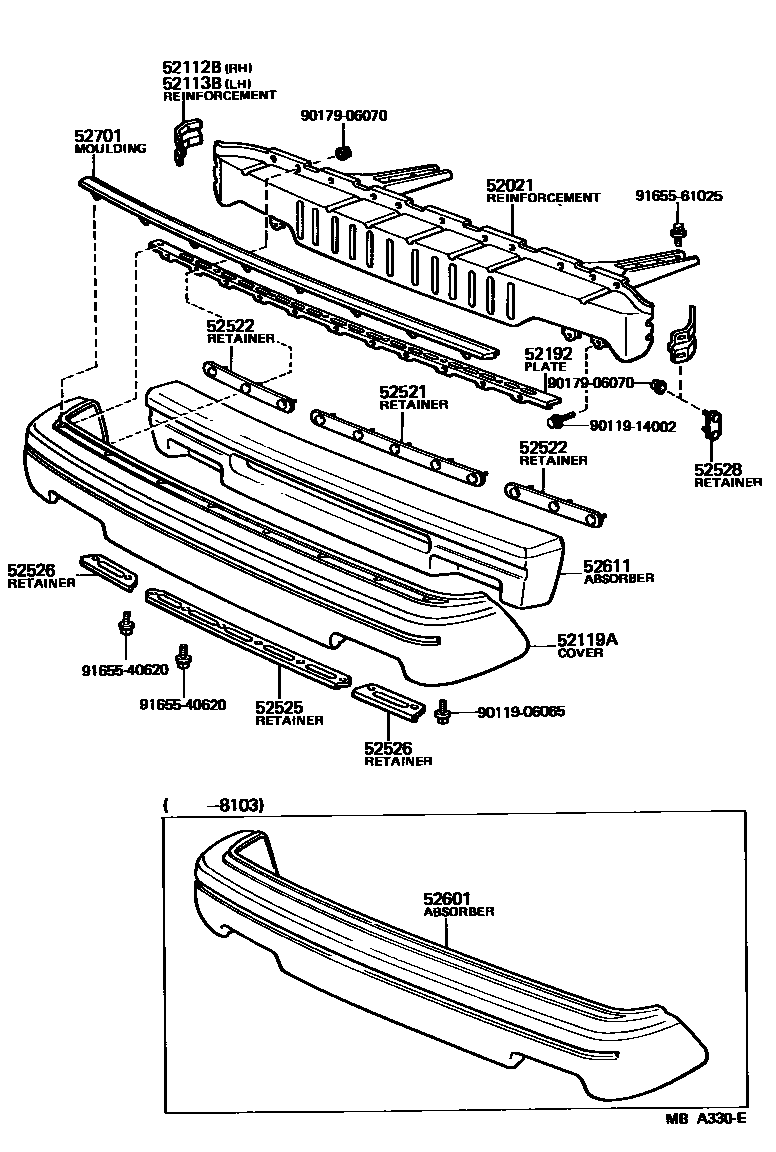

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-12050iAE71,TE72..SED,WG197908-198307

main52021-12060iAE71,TE72..CP,HT,LB197908-198307

52112BREINFORCEMENT, FRONT BUMPER SIDE BAR, RH

main52137-12020iTE72197908-198307

52113BREINFORCEMENT, FRONT BUMPER SIDE BAR, LH

main52138-12020iTE72197908-198307

52119ACOVER, FRONT BUMPER

main52119-12011iTE72..SED,WG198103-198108

main52119-12041iAE71,TE72..CP,HT,LB198103-198307

main52119-12060iAE71,TE72..SED,WG198108-198307

52192PLATE, BUMPER MOULDING MOUNTING, FRONT

main52193-12010iTE72..SED,WG197908-198108

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-14020iAE71,TE72198103-198307

52522RETAINER, FRONT BUMPER UPPER SIDE

main52522-14010iAE71,TE72198103-198307

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52525-12010iAE71,TE72197908-198307

52526RETAINER, FRONT BUMPER, LOWER SIDE

main52526-12010iAE71,TE72197908-198307

52528RETAINER, FRONT BUMPER, LOWER CORNER

main52528-12010iTE72197908-198307

sub52528-12020

52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY

main52601-12021iTE72..SED,WG197908-198103

sub52119-12011

sub52521-14020

sub52522-14010

sub52611-12010

main52601-12051iTE72..CP,HT,LB197908-198103

sub52119-12041

sub52521-14020

sub52522-14010

sub52611-12040

52611ABSORBER, FRONT BUMPER ENERGY

main52611-12010iTE72..SED,WG198103-198108

main52611-12040iAE71,TE72..CP,HT,LB198103-198307

main52611-12060iAE71,TE72..SED,WG198108-198307

52701MOULDING SUB-ASSY, FRONT BUMPER

main52701-12010iTE72..SED,WG197908-198108

9011906065

main90119-06065

9011914002

main90119-14002

9017906070

main90179-06070

9165540620

main91655-40620

9165561025

main91655-61025

18 parts on this diagram · 3 diagrams in section
