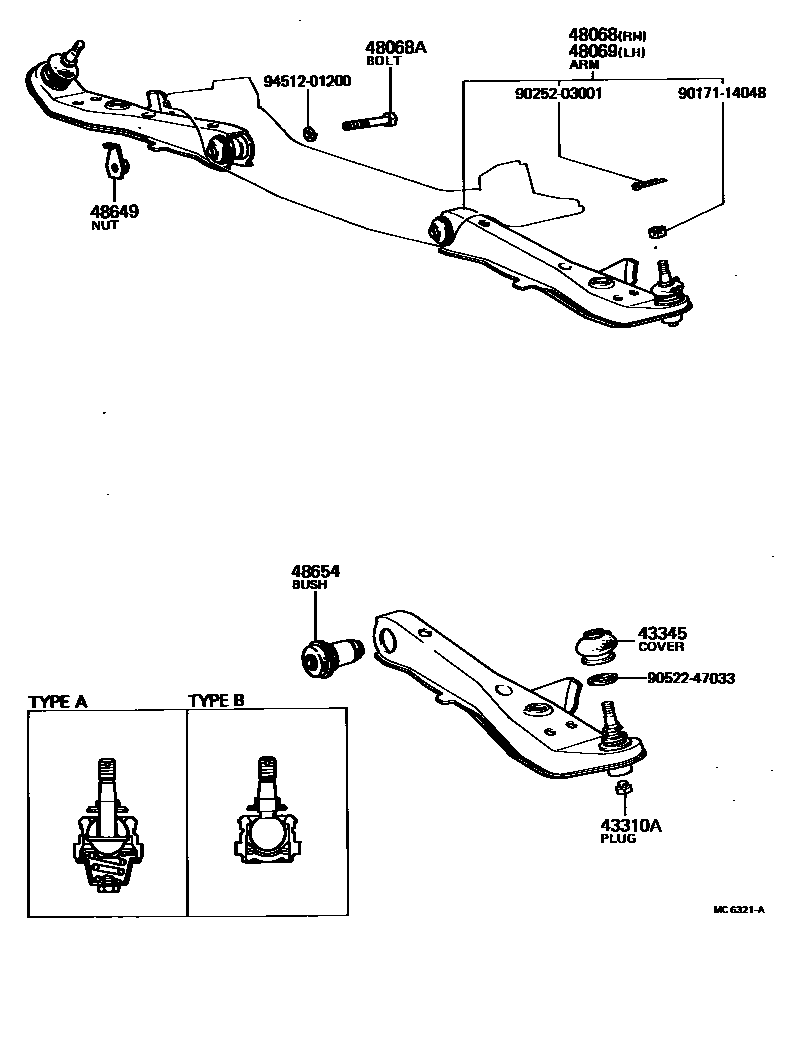

FRONT AXLE ARM & STEERING KNUCKLE

43310APLUG (FOR BALL JOINT)

main90345-06014iAE71,TE72197908-198307

TYPE A

43345COVER, LOWER BALL JOINT DUST

main43345-12060iAE71,TE72197908-198307

TYPE B

main43345-14020iAE71,TE72197908-198307

TYPE A

sub43345-14010

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-19075iTE72197908-198208

TYPE A

main48068-19085iTE72197908-198208

TYPE B

sub48068-19075

main48068-19135iAE71198208-198307

TYPE B

sub48068-19145

main48068-19145iAE71198208-198307

TYPE A

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90101-12291iAE71,TE72197908-198307

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-19065iTE72197908-198208

TYPE A

main48069-19075iTE72197908-198208

TYPE B

sub48069-19065

main48069-19115iAE71198208-198307

TYPE B

sub48069-19125

main48069-19125iAE71198208-198307

TYPE A

48649NUT, LOWER ARM SHAFT

main48649-12040iAE71,TE72197908-198307

48654BUSH, LOWER ARM

main48654-12010iAE71,TE72197908-198307

9017114048

main90171-14048

9025203001

main90252-03001

9052247033

main90522-47033

9451201200

main94512-01200

11 parts on this diagram · 1 diagram in section
