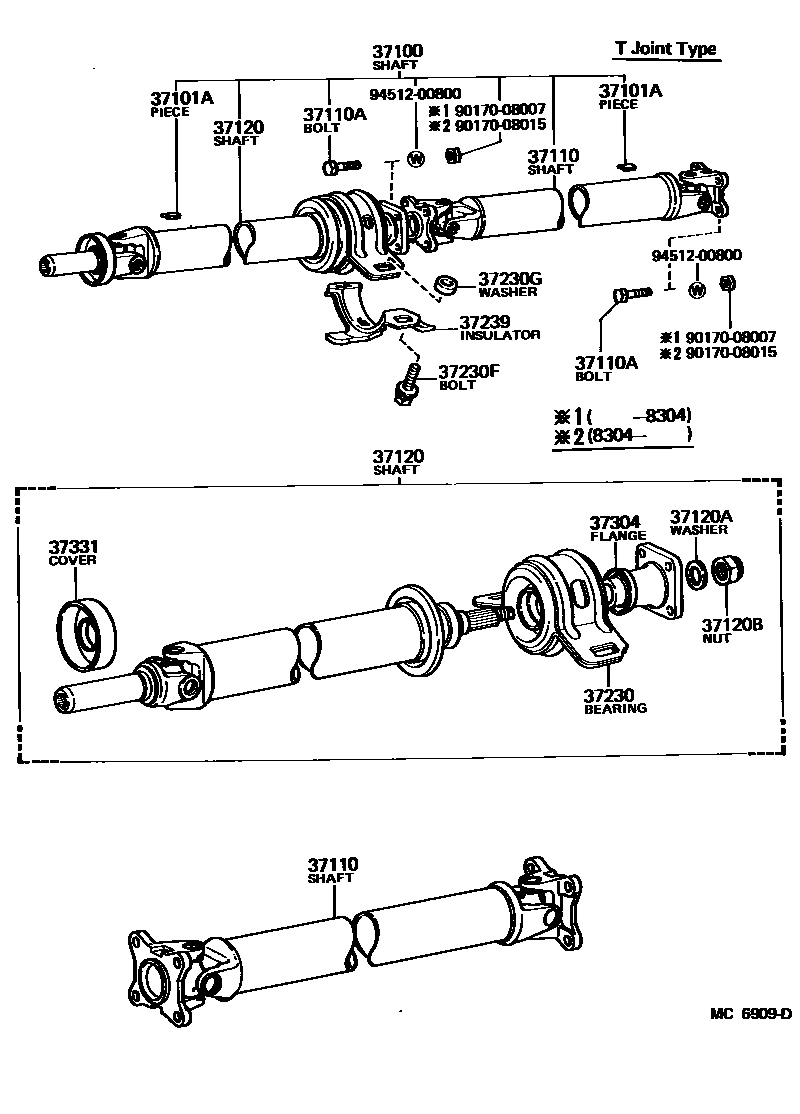

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-12120iTE72..SED..MTM197908-198106

T JOINT TYPE

main37100-12130iTE72..(CP,LB,SED)..3FC197908-198208

T JOINT TYPE

main37100-12190iTE72..(CP,HT,LB,WG)..MTM197908-198106

main37100-12200iTE72..(CP,HT,LB,WG)..3FC197908-198208

main37100-12220iTE72..SED..MTM197908-198106

R JOINT TYPE

main37100-12230iTE72..SED..3FC197908-198208

R JOINT TYPE

main37100-12250iAE71,TE72..SED..MTM198106-198307

T JOINT TYPE

main37100-12260iTE72..4FC..4D198108-198208

T JOINT TYPE

main37100-12290iAE71,TE72..(CP,HT,LB,WG)..5F198106-198307

main37100-12300iAE71,TE72..4FC..2D198108-198307

main37100-12350iAE71..SED..3FC198208-198307

T JOINT TYPE

main37100-12370iAE71..(HT,LB,WG)..3FC198208-198307

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iAE71,TE72197908-198307

10G,L=20.7,10G

main90937-01136iAE71,TE72197908-198307

20G,L=41.4,20G

main90937-01140iAE71,TE72197908-198307

30G,L=62.2,30G

main90937-01147iAE71,TE72197908-198307

2G,T=2.0,2G

main90937-01148iAE71,TE72197908-198307

4G,T=2.0,4G

main90937-01149iAE71,TE72197908-198307

6G,L=12.4,6G

main90937-01150iAE71,TE72197908-198307

8G,L=16.6,8G

main90937-01151iAE71,TE72197908-198307

12G,L=24.9,12G

main90937-01152iAE71,TE72197908-198307

14G,L=29.0,14G

main90937-01153iAE71,TE72197908-198307

16G,L=33.2,16G

main90937-01154iAE71,TE72197908-198307

18G,L=37.3,18G

main90937-01155iAE71,TE72197908-198307

22G,L=45.6,22G

main90937-01156iAE71,TE72197908-198307

24G,L=49.7,24G

main90937-01157iAE71,TE72197908-198307

26G,L=53.9,26G

main90937-01158iAE71,TE72197908-198307

28G,L=58.1,28G

37110SHAFT ASSY, PROPELLER

main37110-12330iAE71,TE72..SED197908-198307

T JOINT TYPE

main37110-12330iTE72..(CP,LB)..3FC197908-198008

main37110-12410iTE72..(CP,LB,WG)..MTM197908-198307

main37110-20170iAE71,TE72..SED197908-198307

R JOINT TYPE

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08062iAE71,TE72198102-198304

13G,YELLOW

main90101-08082iAE71198304-198307

*8-1.25PX25-12,13G,BLACK

main90101-08085iAE71,TE72197908-198306

15G,YELLOW

main90101-08086iAE71,TE72197908-198306

17G,YELLOW

main90101-08087iAE71,TE72197908-198306

19G,YELLOW

main90101-08088iAE71198306-198307

15G,BLACK

main90101-08090iAE71198306-198307

17G,BLACK

main90101-08091iAE71198306-198307

19G,BLACK

main90101-08214iTE72197908-198102

*8-1.25PX25-12,13.5G

sub90101-08262

37120SHAFT ASSY, PROPELLER INTERMEDIATE

main37120-12070iTE72..MTM197908-198106

T JOINT TYPE

main37120-12080iTE72..3FC197908-198208

T JOINT TYPE

main37120-12100iTE72..SED..MTM197908-198106

R JOINT TYPE

main37120-12110iTE72..SED..3FC197908-198208

R JOINT TYPE

main37120-12130iAE71,TE72..MTM198106-198307

T JOINT TYPE

main37120-12140iAE71,TE72..4FC198108-198307

T JOINT TYPE

main37120-12160iTE72..SED..MTM198106-198307

R JOINT TYPE

main37120-12170iTE72..4FC..4D198108-198208

R JOINT TYPE

main37120-12180iAE71..3FC198208-198307

T JOINT TYPE

main37120-12190iAE71..SED..3FC198208-198307

R JOINT TYPE

37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)

main90201-18182iAE71,TE72197908-198307

OD=33.5,T=4.0

37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)

main90179-18060iAE71,TE72197908-198307

sub90179-18001

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-12040iAE71,TE72197908-198307

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10049iAE71,TE72197908-198307

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10008iAE71,TE72197908-198307

T=4.5

37239INSULATOR, CENTER SUPPORT BEARING HEAT

main37239-12030iAE71,TE72197908-198307

37304FLANGE SUB-ASSY, UNIVERSAL JOINT

main37304-22012iAE71,TE72198108-198307

sub37304-22H00

37331COVER, SLIDING SHAFT DUST

main37331-12010iAE71,TE72..MTM197908-198307

main37331-22010iAE71,TE72..ATM197908-198307

sub37331-30010

9017008007

main90170-08007

9017008015

main90170-08015

9451200800

main94512-00800

16 parts on this diagram · 2 diagrams in section
