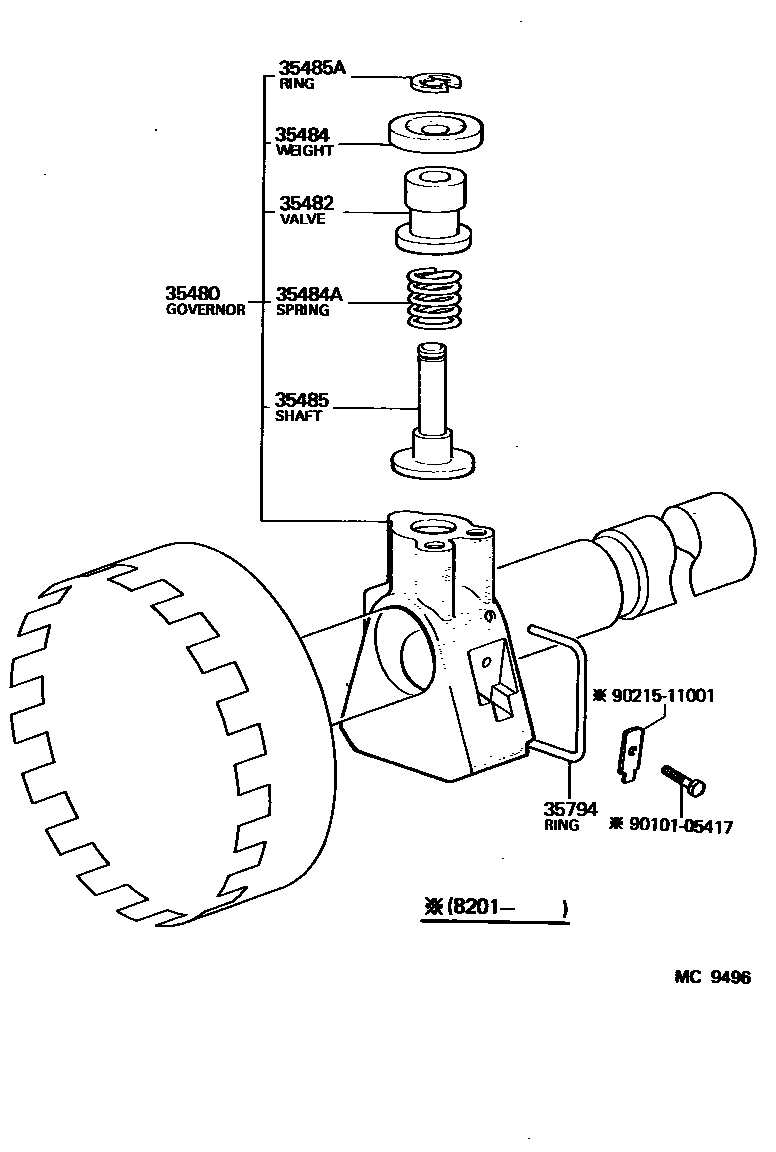

REAR OIL PUMP & GOVERNOR (ATM)

35480GOVERNOR

main35480-20010iTE72..3FC198108-198201

main35480-22020iTE72..3FC197908-198108

sub35480-30040

main35480-26010iAE71,TE72..3FC198201-198307

main35480-30040iTE72..4FC198108-198201

sub35480-30060

main35480-30060iAE71,TE72..4FC198201-198307

35482VALVE, GOVERNOR

main35482-22010iAE71,TE72..ATM197908-198307

35484WEIGHT, GOVERNOR, OUTER

main35484-22010iAE71,TE72..ATM197908-198307

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09015iAE71,TE72..3FC198108-198307

main90501-09673iTE72..3FC197908-198307

35485SHAFT, GOVERNOR VALVE

main35485-22010iAE71,TE72..ATM197908-198307

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iAE71,TE72..ATM197908-198307

35794RING, GOVERNOR RETAINING

main35794-22010iAE71,TE72..ATM197908-198307

9010105417

main90101-05417

9021511001

main90215-11001

9 parts on this diagram · 1 diagram in section
