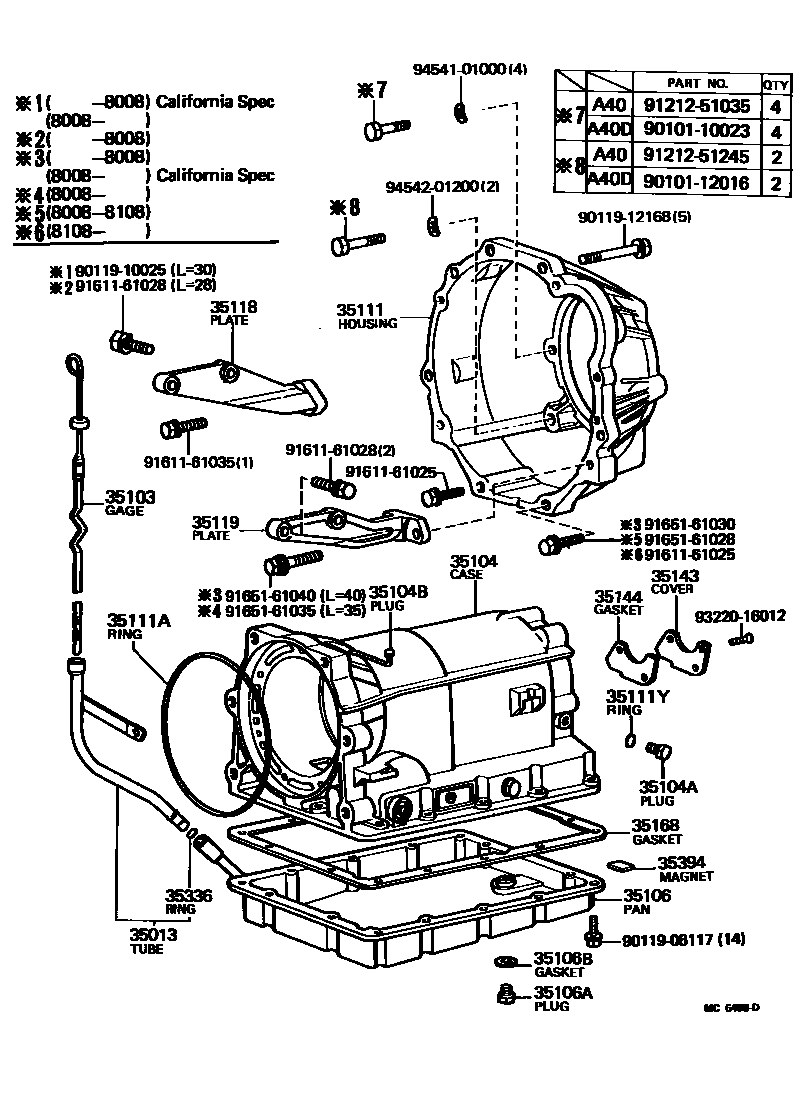

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1 0003 1

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-12080iTE72..ATM197908-198208

main35013-12120iAE71..ATM198208-198307

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-12040iAE71..4FC198208-198307

main35103-14050iTE72..4FC198108-198208

main35103-20040iTE72..3FC197908-198208

main35103-22030iAE71..3FC198208-198307

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-12030iAE71,TE72..4FC198108-198307

sub35104-12120

main35104-22023iTE72..3FC197908-198008

sub35104-22024

main35104-22024iTE72..3FC198008-198106

sub35104-22025

main35104-22025iAE71,TE72..3FC198106-198307

sub35104-22050

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iAE71,TE72..ATM198106-198307

main90341-08079iTE72..3FC197908-198106

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03061iTE72..3FC197908-198108

sub90930-03069

main90930-03069iAE71,TE72..ATM198108-198307

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-12020iAE71..4FC198208-198307

main35106-14020iAE71..3FC198208-198307

sub35106-14021

main35106-22020iTE72..3FC197908-198208

sub35106-22021

main35106-22031iTE72..4FC198108-198208

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10003iAE71,TE72..ATM197908-198307

sub90341-10011

main90341-10006iAE71..ATM198307-198307

sub90341-10011

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iAE71,TE72..ATM197908-198307

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-12051iTE72..3FC197908-198008

main35111-12060iTE72..3FC198008-198208

main35111-12070iTE72..4FC198108-198208

main35111-12090iAE71..3FC198208-198307

main35111-12100iAE71..4FC198208-198307

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99006iAE71,TE72..4FC198108-198307

sub90301-99054

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iAE71,TE72..ATM197908-198307

35118PLATE, STIFENER, RH (ATM)

main33118-12020iTE72..ATM197908-198208

main33118-12090iAE71..ATM198208-198307

sub33118-12110

35119PLATE, STIFENER, LH (ATM)

main33119-12011iTE72..ATM197908-198208

main33119-12060iAE71..ATM198208-198304

sub33119-12100

sub91611-61060

sub91651-61060

main33119-12090iAE71..ATM198304-198307

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iAE71,TE72..ATM197908-198307

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iAE71,TE72..ATM197908-198307

sub35144-28010

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22010iTE72..3FC197908-198008

sub35168-22011

main35168-22011iAE71,TE72..ATM198008-198307

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iAE71,TE72..ATM197908-198307

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iAE71,TE72..ATM197908-198307

9010110023

main90101-10023

9010112016

main90101-12016

9011906117

main90119-06117

9011910025

main90119-10025

9011912168

main90119-12168

9121251035

main91212-51035

9121251245

main91212-51245

9161161025

main91611-61025

9161161028

main91611-61028

9161161035

main91611-61035

9165161028

main91651-61028

9165161030

main91651-61030

9165161035

main91651-61035

9165161040

main91651-61040

9322016012

main93220-16012

9454101000

main94541-01000

9454201200

main94542-01200

35 parts on this diagram · 3 diagrams in section
