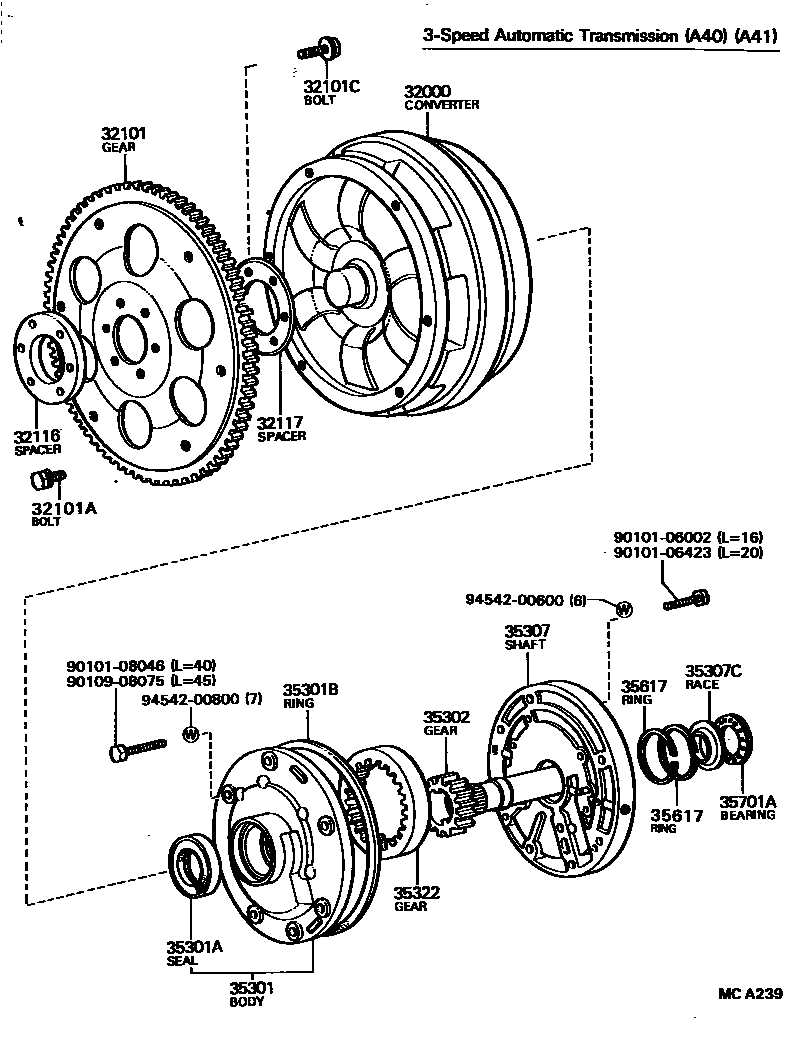

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
WHITE
*8-1.25PX10.5-6.5
*8-1.25PX10.5-6.5,YELLOW
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25X23-14.5
*10-1.25PX23-15.5
*10-1.25PX18-13
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
35301BODY SUB-ASSY, FRONT OIL PUMP
35301ASEAL, OIL (FOR FRONT OIL PUMP)
sub90311-38020
35301BRING, O (FOR FRONT OIL PUMP BODY)
35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE
sub35321-22090
35307CRACE, THRUST BEARING (FOR STATOR SHAFT)
T=4.3
35322GEAR, FRONT OIL PUMP DRIVEN
35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)
9010106002
main90101-06002
9010106423
main90101-06423
9010108046
main90101-08046
9010908075
main90109-08075
9454200600
main94542-00600
9454200800
main94542-00800
21 parts on this diagram · 2 diagrams in section
