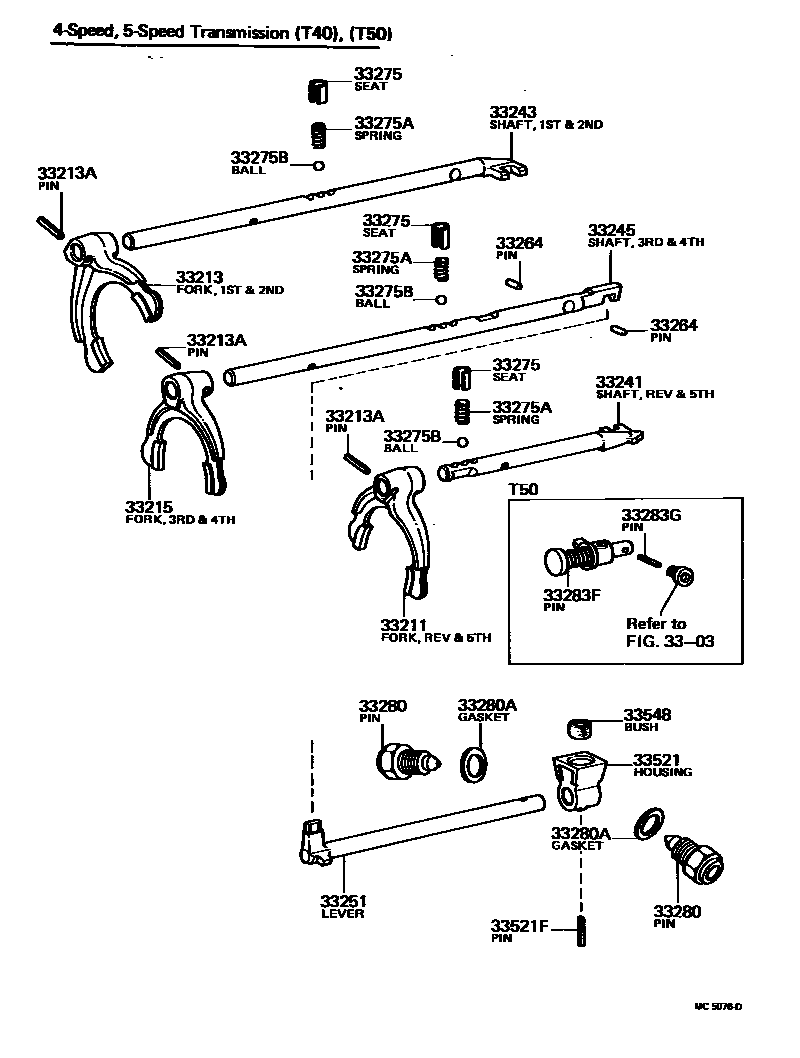

GEAR SHIFT FORK & LEVER SHAFT (MTM)
3303
33211FORK, REVERSE SHIFT
33213FORK, 1ST & 2ND SHIFT
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33215FORK, 3RD & 4TH SHIFT
33241SHAFT, REVERSE SHIFT FORK
33243SHAFT, 1ST & 2ND SHIFT FORK
33245SHAFT, 3RD & 4TH SHIFT FORK
33251LEVER, SHIFT & SELECT
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=10.8,OD=6
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=16.1
33275BBALL, SHAFT DETENT
33280PIN ASSY, REVERSE RESTRICT
RH
LH
RH
33280AGASKET, REVERSE RESTRICT PIN
33283FPIN, REVERSE RESTRICT
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33521HOUSING, SHIFT LEVER
33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)
33548BUSH, SHIFT LEVER
20 parts on this diagram · 1 diagram in section
