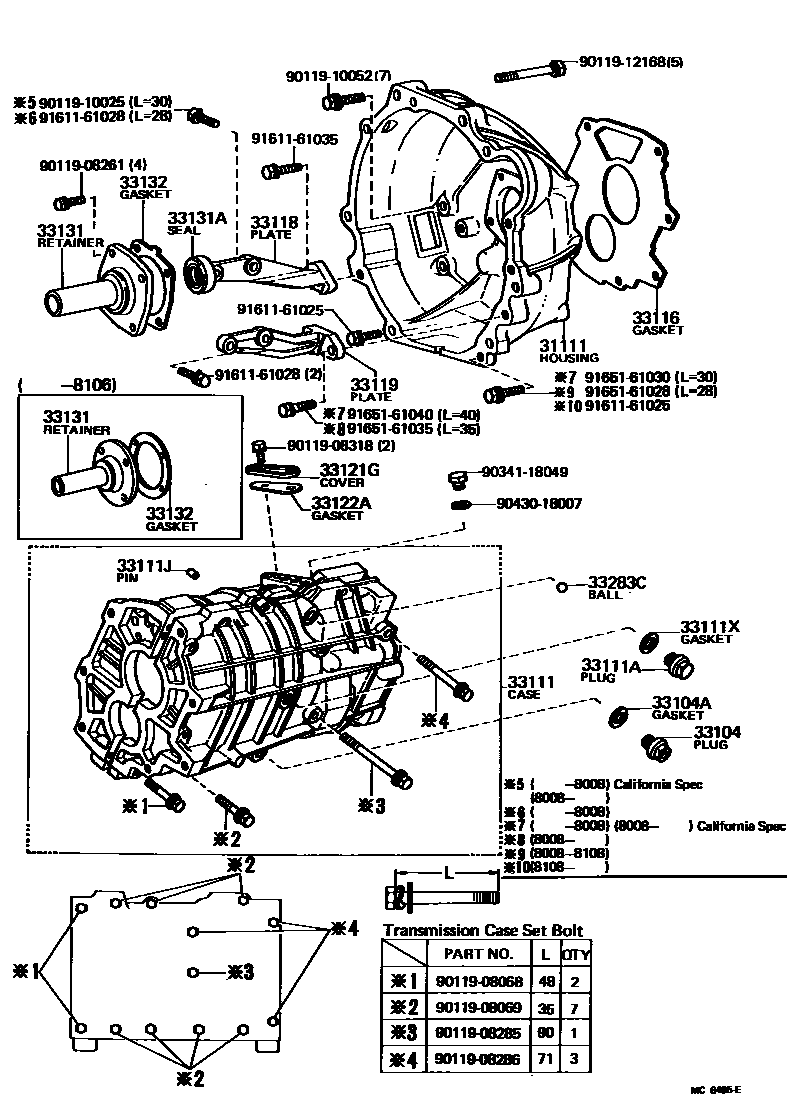

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1

31111HOUSING, CLUTCH

main31111-12040iAE71..MTM198208-198307

main31111-14050iTE72..MTM197908-198008

main31111-14070iTE72..MTM198106-198208

main31111-20180iTE72..MTM198008-198106

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18081iAE71,TE72..MTM197908-198307

33104AGASKET, DRAIN PLUG(MTM)

main12157-10010iTE72..MTM197908-198108

main90430-18007iAE71,TE72..MTM198108-198307

sub90430-18008

33111CASE, MANUAL TRANSMISSION

main33101-14030iTE72..MTM197908-198106

sub33101-14020

sub90341-18006

sub90430-18008

main33101-14040iAE71,TE72..MTM198106-198307

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iAE71,TE72..MTM197908-198210

main90341-18006iAE71..MTM198210-198307

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08030iAE71,TE72..MTM197908-198307

L=16,OD=8

sub90250-08046

33111XGASKET, TRANSMISSION CASE PLUG

main12157-10010iTE72..MTM197908-198108

main90430-18007iAE71,TE72..MTM198108-198307

sub90430-18008

33116GASKET, MANUAL TRANSMISSION CASE

main33116-14010iTE72..MTM197908-198106

main33116-14020iAE71,TE72..MTM198106-198307

33118PLATE, STIFFENER, RH(MTM)

main33118-12020iTE72..MTM197908-198208

main33118-14040iAE71..MTM198208-198307

33119PLATE, STIFFENER, LH(MTM)

main33119-12011iTE72..MTM197908-198208

main33119-12080iAE71..MTM198208-198302

sub33119-12081

main33119-12081iAE71..MTM198302-198307

33121GCOVER, MANUAL TRANSMISSION CASE

main33121-14010iAE71,TE72..MTM197908-198307

33122AGASKET, MANUAL TRANSMISSION CASE COVER

main33122-14010iAE71,TE72..MTM197908-198307

33131RETAINER, BEARING, FRONT(MTM)

main33131-14010iTE72..MTM197908-198106

main33131-14020iAE71,TE72..MTM198106-198307

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-25003iAE71,TE72..MTM197908-198307

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-14010iTE72..MTM197908-198106

main33132-14020iAE71,TE72..MTM198106-198307

33283CBALL, REVERSE RESTRICT

main90360-10003iAE71,TE72..MTM197908-198307

9011908068

main90119-08068

9011908069

main90119-08069

9011908261

main90119-08261

9011908285

main90119-08285

9011908286

main90119-08286

9011908318

main90119-08318

9011910025

main90119-10025

9011910052

main90119-10052

9011912168

main90119-12168

9034118049

main90341-18049

9043018007

main90430-18007

9161161025

main91611-61025

9161161028

main91611-61028

9161161035

main91611-61035

9165161028

main91651-61028

9165161030

main91651-61030

9165161035

main91651-61035

9165161040

main91651-61040

34 parts on this diagram · 3 diagrams in section
