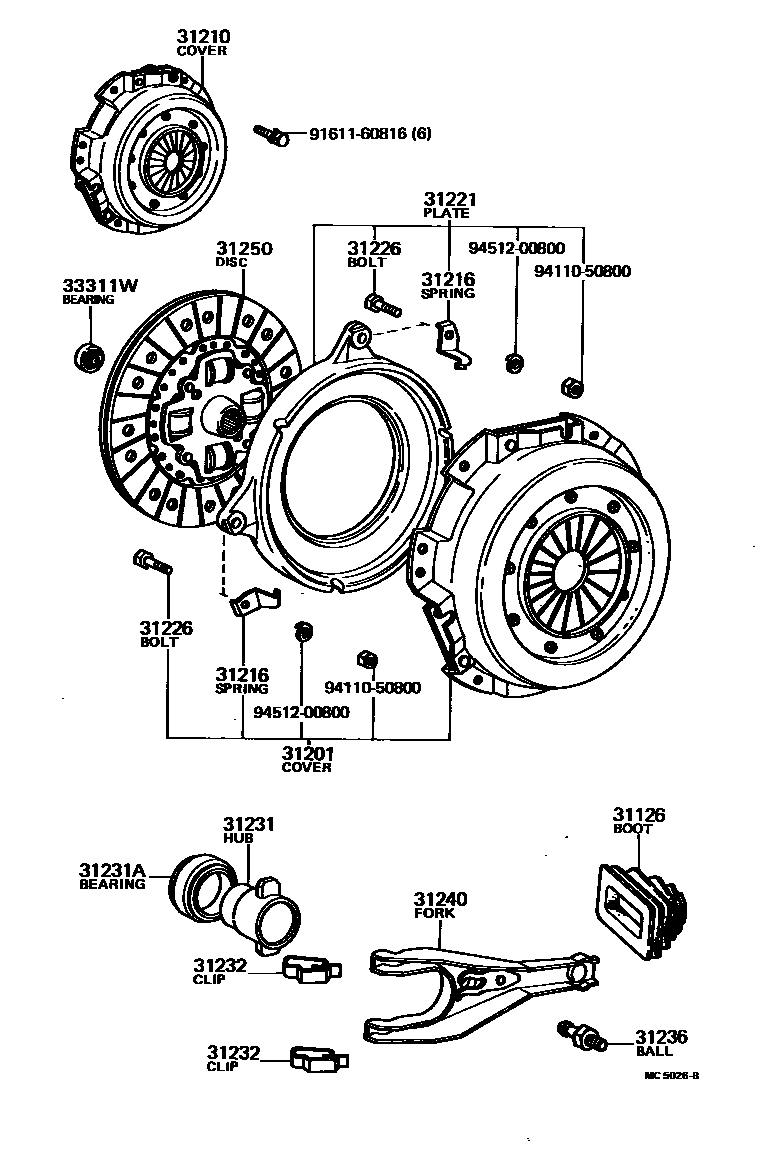

CLUTCH & RELEASE FORK

0001 1 0003 1 0004 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20070iAE71,TE72..MTM198008-198307

main31126-22040iTE72..MTM197908-198008

31201COVER SUB-ASSY, CLUTCH

main31201-19048iTE72..4F..CND;TE72..MTM..(DX,SR5)197908-198108

sub31201-19075

main31201-19075iTE72..5F198108-198208

main31201-39047iTE72..4F..STD..USA198008-198208

31210COVER ASSY, CLUTCH

main31210-12070iAE71..MTM198208-198303

sub31210-12071

main31210-12071iAE71..MTM198303-198307

sub31210-16090

main31210-23011iTE72..MTM197908-198108

sub31210-23012

main31210-23012iTE72..5F198108-198208

sub31210-12210

main31210-35042iTE72..4F..STD..USA198008-198208

sub31210-22120

31216SPRING, CLUTCH RETRACTING

main31216-20020iTE72..MTM197908-198208

main31216-30010iTE72..4F..STD..USA198008-198208

31221PLATE, CLUTCH PRESSURE

main31221-19025iTE72..MTM197908-198208

main31221-39045iTE72..4F..STD..USA198008-198208

sub31221-35020

31226BOLT, CLUTCH PRESSURE PLATE

main90101-08022iTE72..4F..STD..USA198008-198208

main90101-08350iTE72..MTM197908-198208

sub90101-08022

31231HUB, CLUTCH RELEASE BEARING

main31231-12050iAE71..MTM198208-198307

main31231-14031iTE72..MTM197908-198007

sub31231-14032

main31231-14032iTE72..MTM198007-198008

main31231-20081iTE72..MTM198008-198208

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40001iTE72..MTM197908-198002

sub90363-40008

main90363-40008iTE72..MTM198002-198007

main90363-40015iTE72..MTM198007-198012

sub90363-40022

main90363-40022iAE71,TE72..MTM198012-198307

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010iAE71,TE72..MTM197908-198307

31236BALL, RELEASE FORK

main31236-20020iTE72..MTM197908-198108

sub31236-30060

main31236-30060iAE71,TE72..MTM198108-198307

31240FORK ASSY, CLUTCH RELEASE

main31204-20080iAE71,TE72..MTM198008-198307

main31204-22030iTE72..MTM197908-198008

31250DISC ASSY, CLUTCH

main31250-12080iTE72..4F..CND;TE72..MTM..(DX,SR5)198001-198108

sub31250-12081

main31250-12081iTE72..5F198108-198208

sub31250-12184

main31250-12090iTE72..4F..STD..USA198008-198208

sub31250-12153

main31250-12110iAE71..MTM198208-198307

sub31250-12111

main31250-14100iTE72..MTM197908-197910

sub31250-14101

main31250-14101iTE72..MTM197910-198001

sub31250-12080

33311WBEARING (FOR INPUT SHAFT)

main90363-12003iAE71,TE72..MTM198010-198307

main97123-06001iTE72..MTM197908-198010

9161160816

main91611-60816

9411050800

main94110-50800

9451200800

main94512-00800

16 parts on this diagram · 3 diagrams in section
