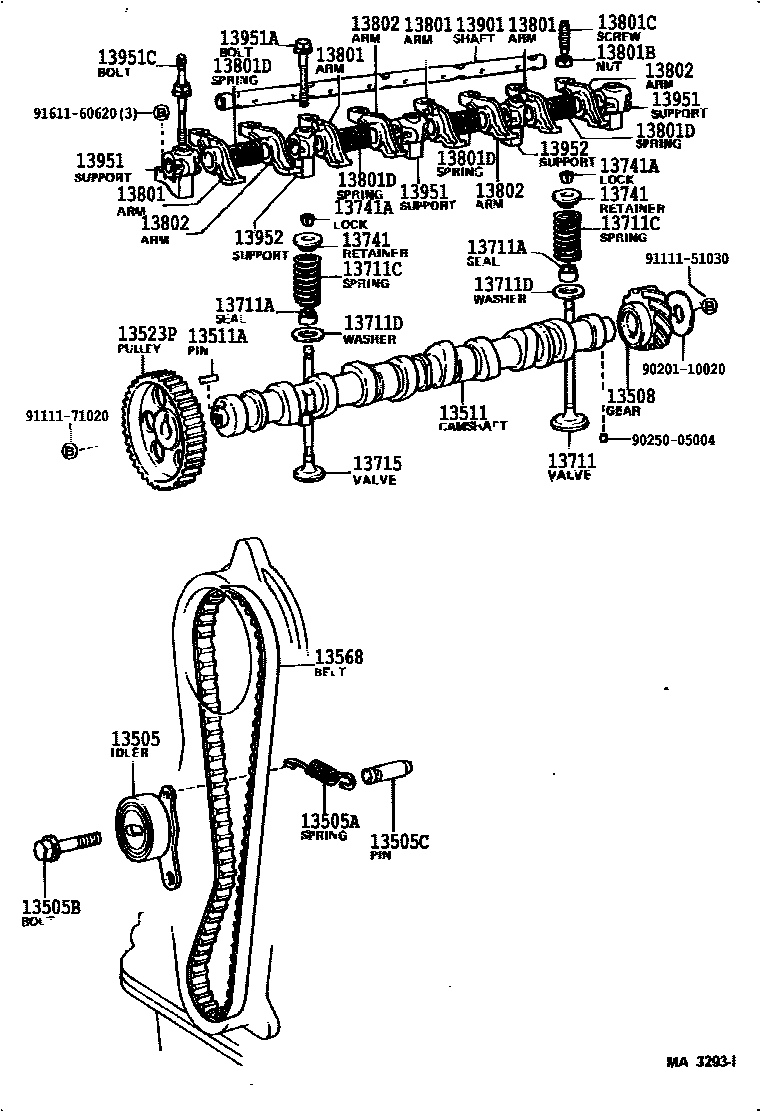

CAMSHAFT & VALVE
13505IDLER SUB-ASSY, TIMING BELT, NO.1
sub13505-15041
13505ASPRING, TENSION(FOR IDLER)
sub90507-18017
13505BBOLT, FLANGE (FOR IDLER)
13505CPIN(FOR IDLER SPRING TENSION)
13508GEAR SUB-ASSY, DISTRIBUTOR DRIVE
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
L=15,OD=5,L=15,OD=5
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523PPULLEY, CAMSHAFT TIMING
13568BELT, TIMING
sub13568-19125
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
INTAKE
EXHAUST
13711CSPRING, COMPRESSION(FOR OUTER)
sub90501-42003
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
13802ARM SUB-ASSY, VALVE ROCKER, NO.2
13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13951SUPPORT, VALVE ROCKER, NO.1
13951ABOLT(FOR ROCKER SUPPORT SET)
*12-1.25PX157-24
13951CBOLT, STUD(FOR ROCKER SUPPORT)
13952SUPPORT, VALVE ROCKER, NO.2
9020110020
main90201-10020
9025005004
main90250-05004
9111151030
main91111-51030
9111171020
main91111-71020
9161160620
main91611-60620
32 parts on this diagram · 2 diagrams in section
