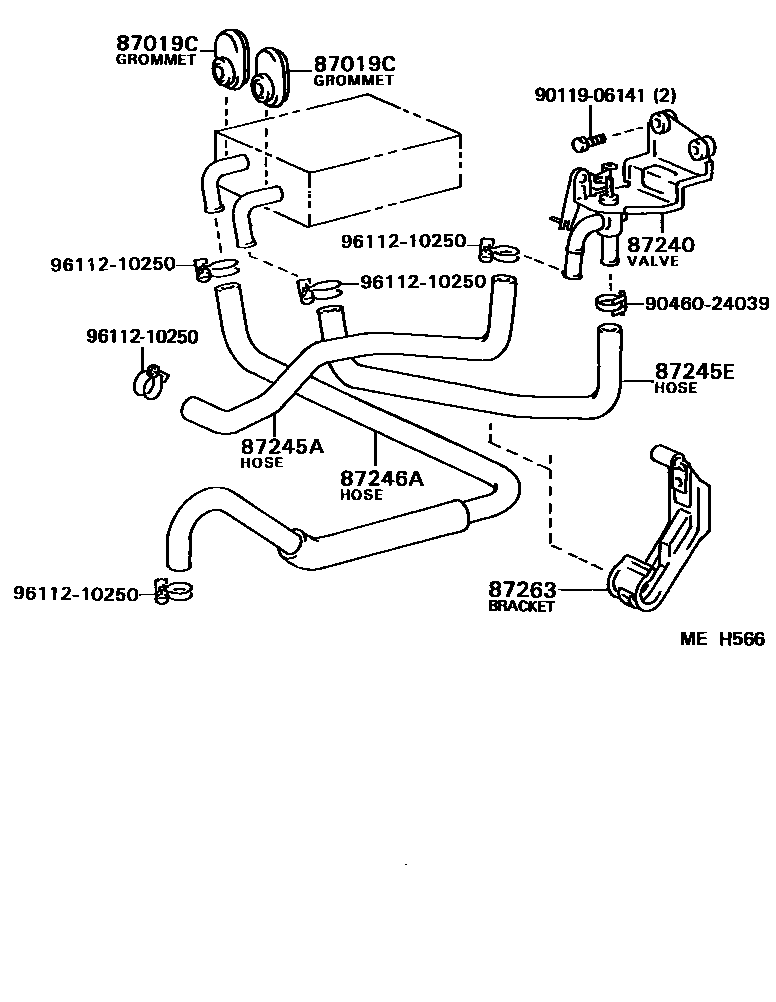

HEATING & AIR CONDITIONING - WATER PIPING

87019CGROMMET, HEATER HOSE

main90480-01015iAE82198609-198808

87240VALVE ASSY, HEATER WATER

main87240-12201iAE82..D198702-198808

main87240-12220iAE82..GTS,Q198609-198808

87245AHOSE, HEATER WATER, INLET A

main87245-02020iAE82..GTS,Q198609-198808

main87245-12730iAE82..D198702-198808

87245EHOSE, HEATER WATER, INLET E

main87245-12680iAE82..D198702-198808

main87245-1A060iAE82..GTS,Q198609-198808

87246AHOSE, HEATER WATER, OUTLET A

main87245-12740iAE82198609-198808

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-12220iAE82198609-198808

9011906141

main90119-06141

9046024039

main90460-24039

9611210250

main96112-10250

9 parts on this diagram · 1 diagram in section
