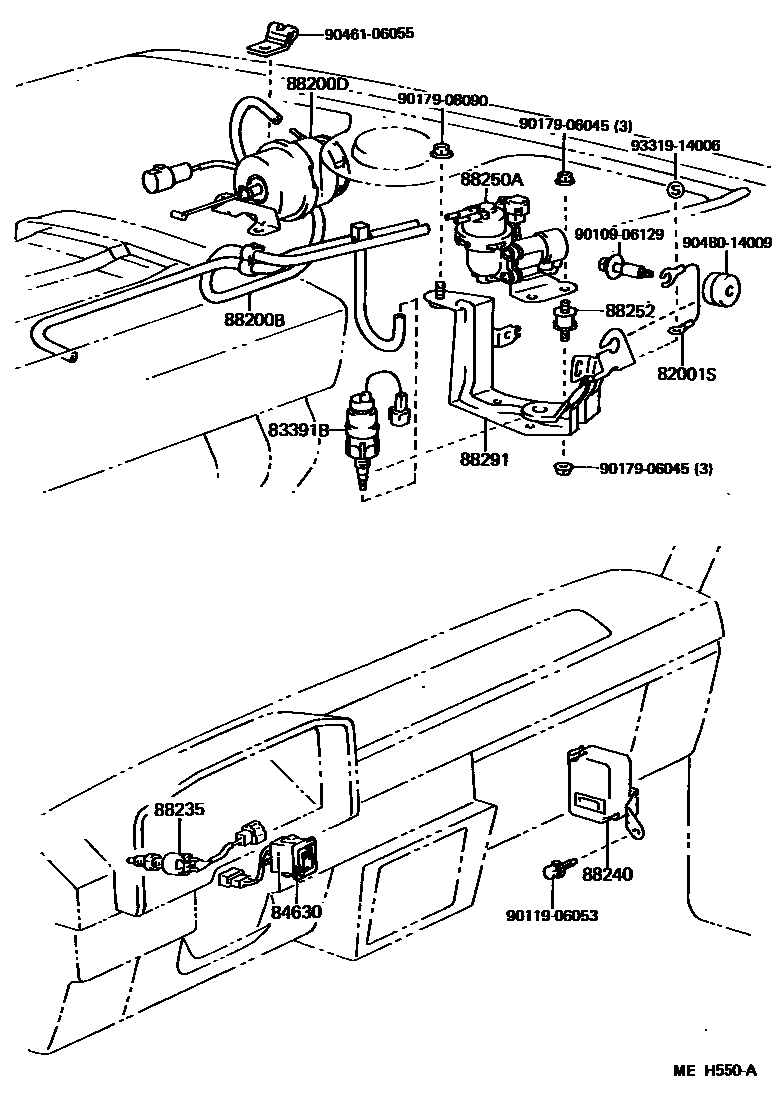

CRUISE CONTROL (AUTO DRIVE)

82001SCABLE, BOND

main90980-07283iAE82..GTS,Q198609-198808

83391BSWITCH, AUTO DRIVE VACUUM

main83391-14090iAE82..GTS,Q198609-198808

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-32040iAE82..GTS,Q198609-198808

88200BHOSE, CRUISE CONTROL VACUUM

main88283-02010iAE82..GTS,Q198609-198808

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-02010iAE82..GTS,Q198609-198801

sub88200-02011

main88200-02011iAE82..GTS,Q198801-198808

88235SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE

main88280-35010iAE82..MTM..(GTS,Q)198609-198808

88240COMPUTER ASSY, CRUISE CONTROL

main88240-02010iAE82..GTS,Q198609-198808

88250APUMP ASSY, CRUISE CONTROL

main88251-02010iAE82..GTS,Q198609-198801

sub88251-02011

main88251-02011iAE82..GTS,Q198801-198808

88252CUSHION, VACUUM PUMP

main88252-14110iAE82..GTS,Q198609-198808

sub88252-26010

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-02010iAE82..GTS,Q198609-198808

9010906129

main90109-06129

9011906053

main90119-06053

9017906045

main90179-06045

9017908090

main90179-08090

9046106055

main90461-06055

9048014009

main90480-14009

9331914006

main93319-14006

17 parts on this diagram · 1 diagram in section
