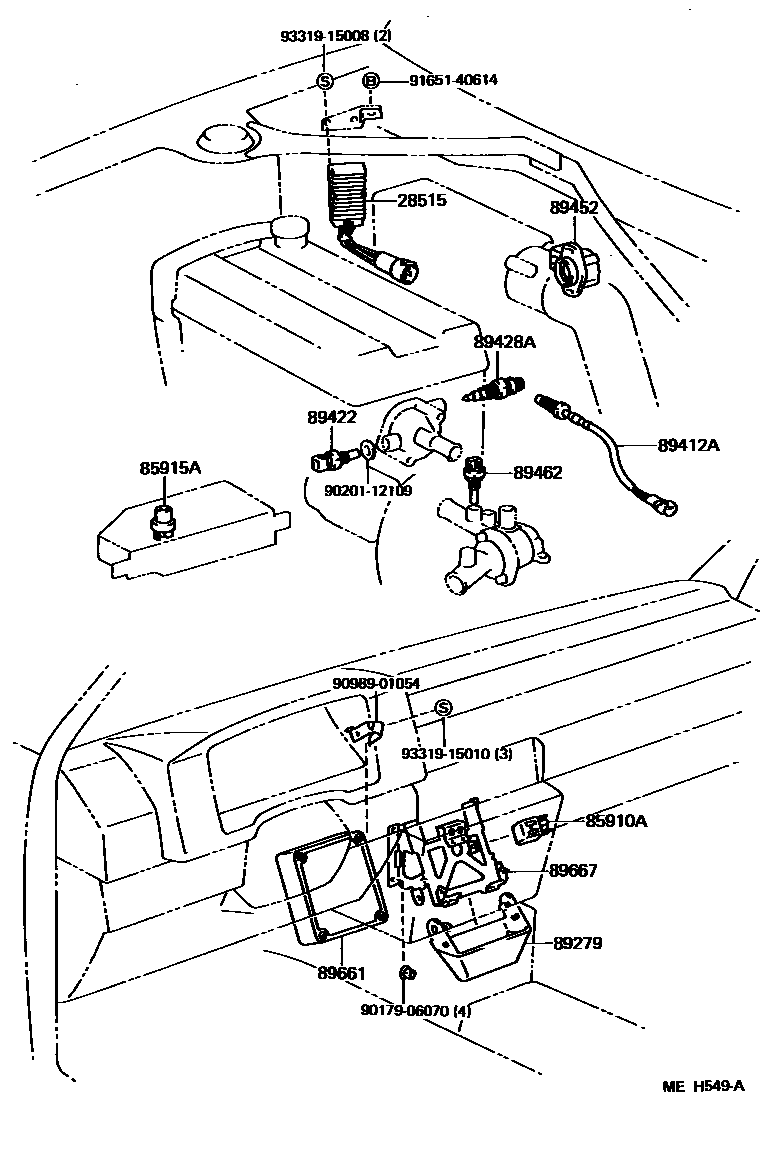

ELECTRONIC FUEL INJECTION SYSTEM

28515RESISTOR, SOLENOID

main28515-52010i4AGELC..AE82198609-198708

sub28515-11010

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iAE82..GTS,Q198609-198808

85915ARELAY, MAIN

main90987-02004iAE82..GTS,Q198609-198808

89279COVER, ENGINE CONTROL COMPUTER

main89279-12010iAE82..GTS,Q198609-198808

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-12010iAE82..GTS,Q198708-198808

*CAL

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-12010iAE82..GTS,Q198708-198808

main89422-30020iAE82..GTS,Q198609-198708

sub89422-12010

89428ASWITCH, WATER TEMPERATURE (FOR E.F.I)

main89428-28030iAE82..GTS,Q198609-198708

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12040iAE82..GTS,Q198708-198808

main89452-20070iAE82..GTS,Q198609-198708

89462SWITCH, START INJECTOR TIME

main89462-12010iAE82..GTS,Q198708-198804

main89462-30011iAE82..GTS,Q198609-198808

89661COMPUTER, ENGINE CONTROL

main89661-01010iAE82..GTS,Q198708-198808

main89661-01020iAE82..GTS,Q198708-198808

*CAL

main89661-02011iAE82..MTM..(GTS,Q)198609-198708

main89661-02021iAE82..ATM..(GTS,Q)198609-198708

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-02010iAE82..GTS,Q198609-198708

main89667-12010iAE82..GTS,Q198708-198808

9017906070

main90179-06070

9020112109

main90201-12109

9098901054

main90989-01054

9165140614

main91651-40614

9331915008

main93319-15008

9331915010

main93319-15010

17 parts on this diagram · 1 diagram in section
