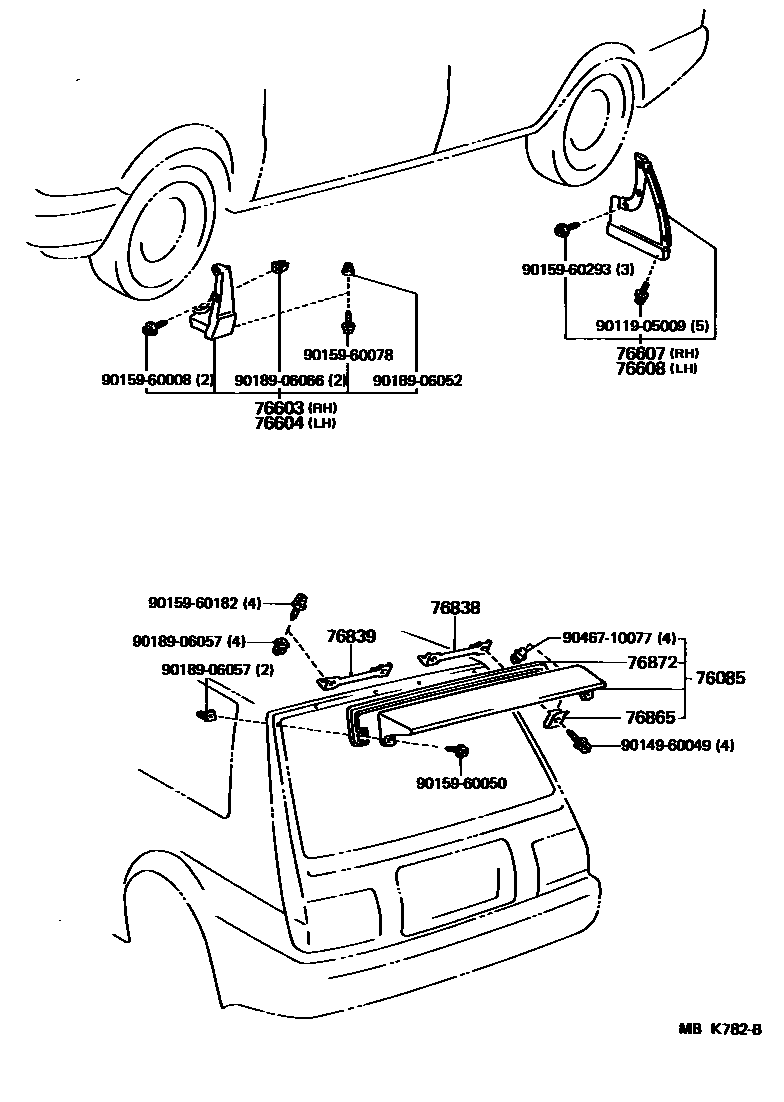

MUDGUARD & SPOILER

76085SPOILER SUB-ASSY, REAR

main76085-02010-E0iAE82..GTS198609-198808

WHITE,WHITE

main76085-02010-E1iAE82..D198609-198802

SILVER-M,SILVER METALLIC

main76085-02010-E2iAE82..D,GTS198609-198808

RED,RED

main76085-02010-E3iAE82..GTS198609-198808

BLACK-M,BLACK METALLIC

main76085-02010-E5iAE82..D,GTS198709-198808

MIDIUM GRAY-M,MIDIUM GRAY MET

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-09010iAE82198609-198808

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-09010iAE82198609-198808

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-09010iAE82198609-198808

main76625-09020-E0iAE82..D,GTS198609-198808

WHITE,WHITE

main76625-09020-E1iAE82..D,GTS198609-198802

SILVER-M,SILVER METALLIC

main76625-09020-E2iAE82..GTS198609-198808

RED,RED

main76625-09020-E3iAE82..D,GTS198609-198808

BLACK-M,BLACK METALLIC

main76625-09020-E5iAE82..D,GTS198709-198808

MIDIUM GRAY-M,MIDIUM GRAY MET

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-09010iAE82198609-198808

main76626-09020-E0iAE82..D,GTS198609-198808

WHITE,WHITE

main76626-09020-E1iAE82..D,GTS198609-198802

SILVER-M,SILVER METALLIC

main76626-09020-E2iAE82..D,GTS198609-198808

RED,RED

main76626-09020-E3iAE82..D,GTS198609-198808

BLACK-M,BLACK METALLIC

main76626-09020-E5iAE82..D,GTS198709-198808

MIDIUM GRAY-M,MIDIUM GARY MET

76838RETAINER, BACK DOOR FINISH PANEL, RH

main76838-12020iAE82..GTS198609-198808

76839RETAINER, BACK DOOR FINISH PANEL, LH

main76838-12020iAE82..GTS198609-198808

76865RETAINER, REAR SPOILER, NO.1

main76865-12050iAE82..GTS198611-198808

76872PROTECTOR, REAR SPOILER, NO.1

main76872-12040iAE82..GTS198611-198808

9011905009

main90119-05009

9014960049

main90149-60049

9015960008

main90159-60008

9015960050

main90159-60050

9015960078

main90159-60078

9015960182

main90159-60182

9015960293

main90159-60293

9018906052

main90189-06052

9018906057

main90189-06057

9018906066

main90189-06066

9046710077

main90467-10077

20 parts on this diagram · 1 diagram in section
